Commercial signage installations—particularly in retail environments, hospitality venues, transport hubs, and healthcare waiting areas—often face a common constraint: fixed infrastructure. Wall-mounted displays demand installation planning, cabling, and venue modification. The M1+_G2 changes that equation. At under 1kg with built-in battery capability, it allows signage operators to deploy content-driven displays in locations that conventional equipment cannot reach, or to move messaging between high-traffic areas without permanent installation overhead.
Key Features

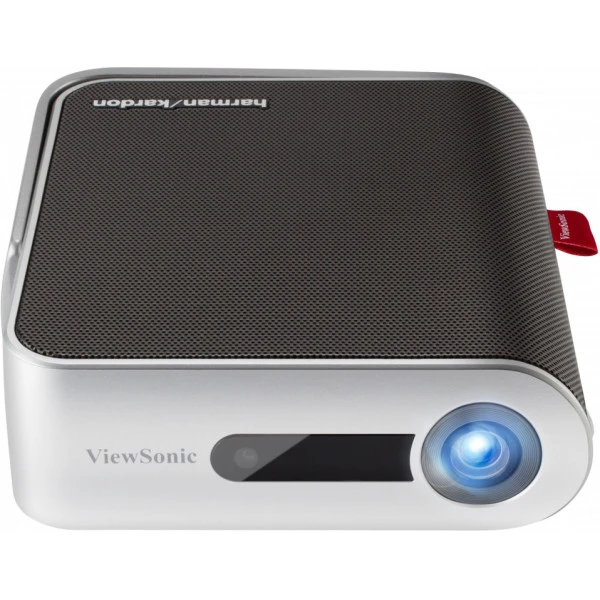

- Ultra-portable form factor: Weighing 0.7kg and compact enough to relocate between multiple signage zones daily, the M1+_G2 eliminates the need for fixed infrastructure investment while maintaining professional output—a material advantage in retail environments with seasonal promotions or rotating customer-facing messaging.
- LED light source with 30,000-hour lifespan: Unlike traditional lamp-based projectors, the LED engine removes scheduled lamp replacement from operational maintenance calendars, reducing both planned downtime and consumables cost across commercial signage fleets.
- 300 LED lumens brightness: Sufficient for controlled retail and hospitality interiors; in brighter ambient environments, positioning and content contrast become co-operational factors—this specification assumes deployment in indoor or sheltered settings rather than direct sunlight exposure.

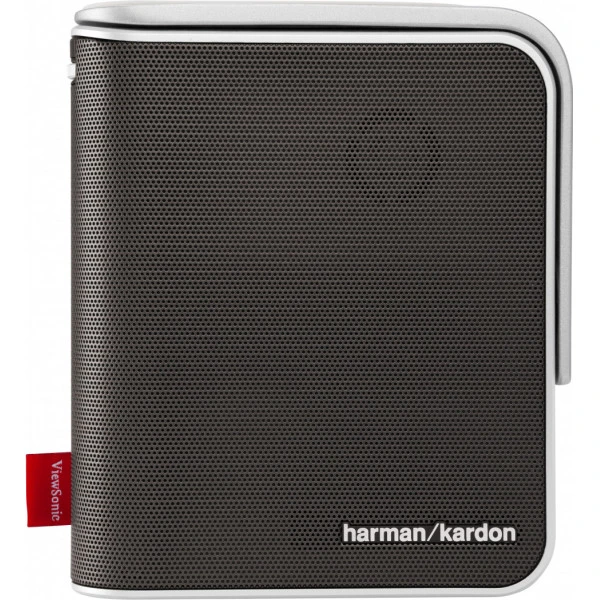

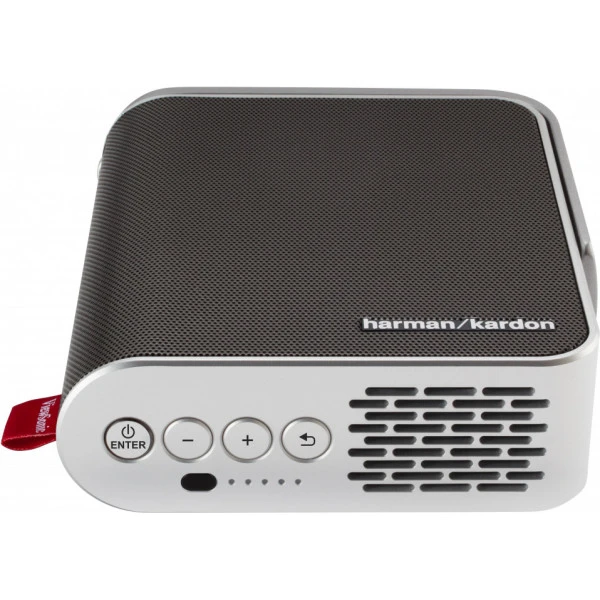

- Integrated stereo Harman Kardon speakers: Eliminates the need for separate audio infrastructure in signage deployments where audio reinforcement is required—particularly valuable in hospitality menus, corporate lobbies, and healthcare waiting area messaging where content integration is streamlined by eliminating external speaker specification.

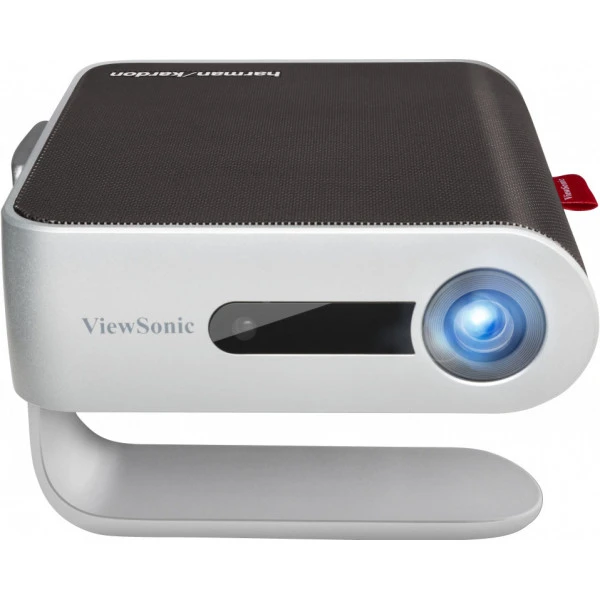

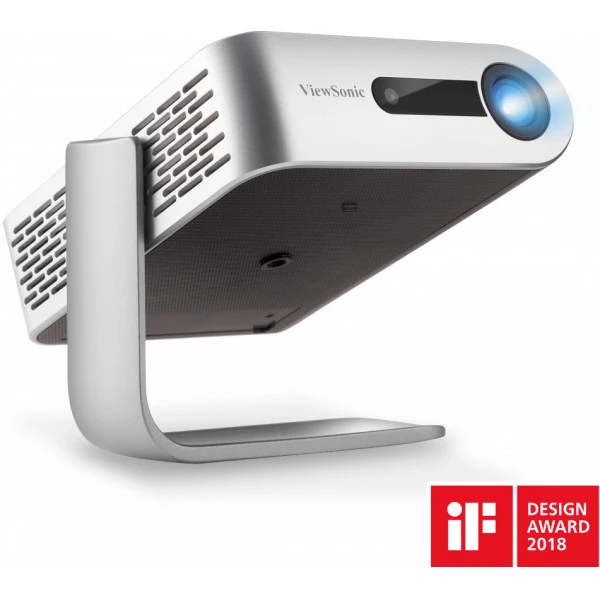

- 360° smart stand with ceiling projection capability: Content can be projected onto walls, ceilings, or custom surfaces without fixed mounting—operationally useful for temporary installations, event venues, and retail environments where signage flexibility is a deployment advantage.
- Wi-Fi 5GHz and Bluetooth connectivity: Network-based content scheduling and wireless casting from managed devices allow remote content updates across distributed signage points without physical intervention—a material operational benefit in multi-location commercial environments.
- Up to 6 hours battery runtime: Sufficient for full-day pop-up signage, temporary retail promotions, or transit-point installations in environments where power outlet availability is limited or unreliable.
Specifications
| Specification | Detail |
|---|---|
| Display Technology | 0.2″ WVGA Single-chip DLP with LED light source |
| Native Resolution | 854 × 480 pixels (WVGA) |
| Maximum Resolution Support | VGA through Full HD (1920 × 1080) |
| Brightness | 300 LED lumens (normal mode) |
| Contrast Ratio | 120,000:1 |
| Light Source | RGB LED — no lamp replacement required |
| Rated Light Source Life | Up to 30,000 hours (normal operation) |
| Colour Gamut | 1.07 billion colours with Cinema SuperColor+ (125% Rec.709) |
| Projection Offset | 100% ±5° (100% vertical keystone range) |
| Throw Ratio | 1.2:1 fixed |
| Throw Distance | 0.64–2.66m (38″ image at 1m) |
| Maximum Image Size | 24″ to 100″ diagonal |
| Operating Noise | 26dB (normal) / 25dB (eco mode) |
| Internal Storage | 16GB total (12GB available for content) |
| Local Input Lag | 41.5ms |
| Processor & RAM | Quad-core processor with appropriate embedded RAM for Android-based content playback |
| Battery Capacity | 12,000mAh (3 × 4000mAh cells) — 2.5 hours normal / 3 hours eco mode |
| Power Consumption | Normal: 35W / Standby: <0.5W |
| Power Adapter | 19V DC / 3.42A input 100–240V AC |
| Operating Temperature | 0–40°C |
| Net Weight | 0.7kg (700g) |
| Dimensions (W × D × H) | 151 × 126 × 40mm with adjustment feet |
| Audio Output | Stereo Harman Kardon speakers (3W × 2) |
| UI Languages Supported | 23 languages including English, Chinese (Simplified & Traditional), Japanese, Spanish, French, German, Russian, Korean, Arabic, and others |

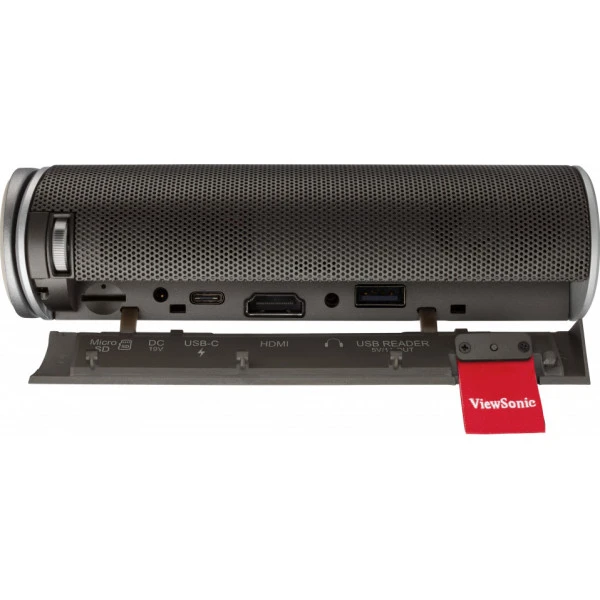

Connectivity
- HDMI 1.4 (×1): Full HD video input with HDCP 1.4 support for secured content playback in retail and customer-facing deployments.
- USB Type-C (×1, 5V/2A): Primary charging and device connection port for flexible power options in signage environments.
- USB Type-A (×1, 5V/1A shared power output): Auxiliary USB for peripheral connectivity or low-power accessory support.
- Micro SD Card slot (up to 32GB SDHC): Local content storage and scheduling capability without network dependency.
- Wi-Fi 5GHz (802.11n): Wireless network connectivity for remote content management and over-the-air updates in distributed signage deployments.
- Bluetooth 4.2 (audio input & output): Wireless audio source pairing and optional Bluetooth speaker mode for flexible content delivery in temporary installations.
- 3.5mm audio-out (×1): External audio system integration or headphone monitoring for content verification in retail environments.
Warranty
This ViewSonic product is covered by a 12-month warranty against manufacturing defects. Contact Kickstart Computers for warranty claims and support.
