75UH5J-H

LG 75UH5J-H 75″ LED UHD 16:9 IPS 500nit

Original price was: $5,391.91.Current price is: $4,372.90.

75UH5J-H 75″ LED UHD 16:9 IPS 500nit

Availability: 3 in stock

SKU: 75UH5J-H Category: Tags: ,
LG

LG 75″ LED Ultra HD 3840×2160; Wide Screen; IPS; WebOS; 500 Brightness; 1100:1 Contrast Ratio; HDMI; DVI; Display Port; RS232C; USB; Dual Orientation; Bezel 14.9mm.



New High Haze UHD Standard Signage

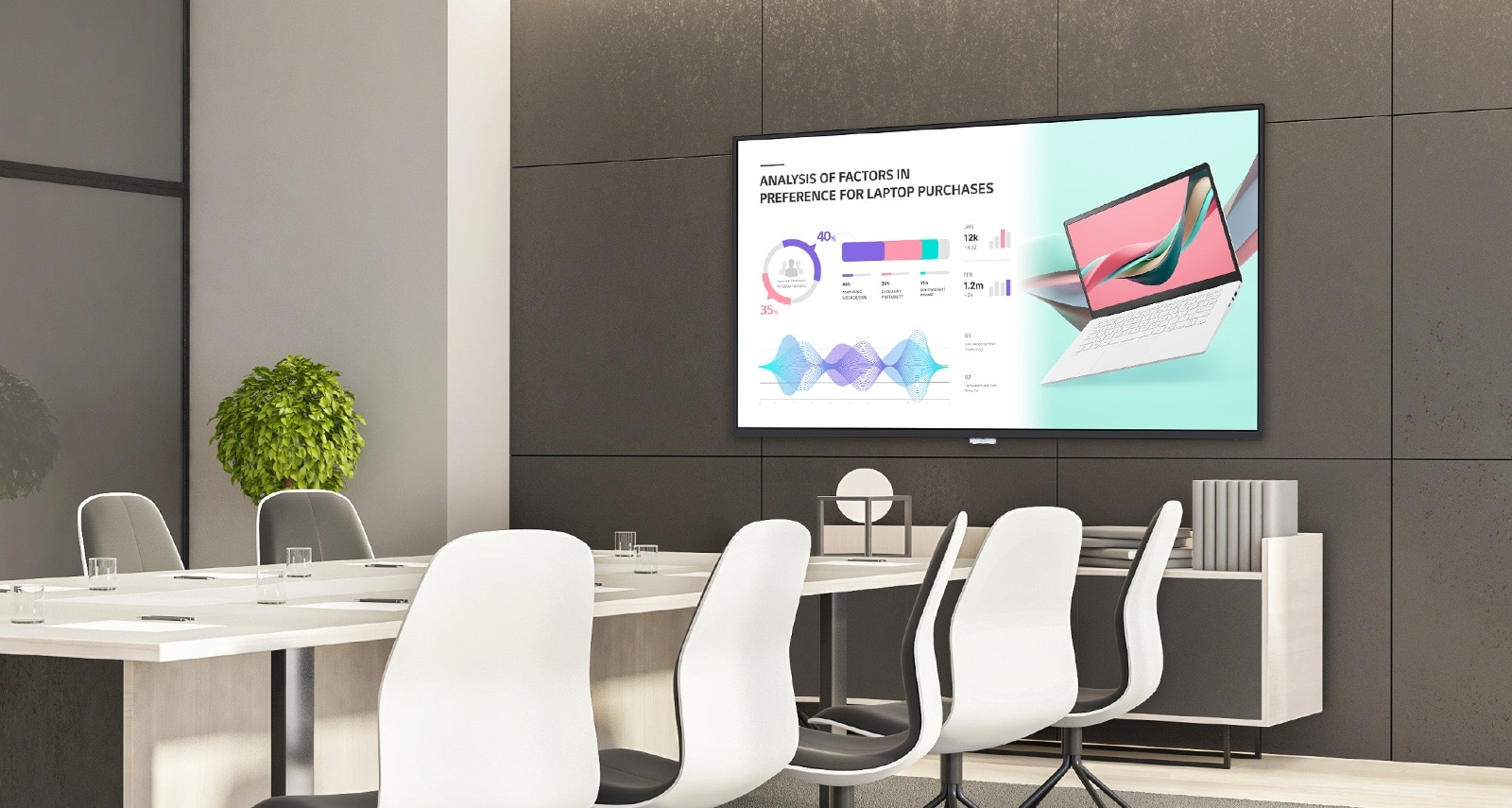

A screen showing the meeting’s contents is installed on the meeting room’s wall.
* All images in this web page are for illustrative purposes only.

High Brightness

With a great brightness of 700 nits, the UH5J-H series delivers content that can attract attention of viewers and is a suitable display solution for outdoor visibility such as airports, retail, shopping malls etc.
UH5J-H has a brightness of 700 nits, so it is clearly visible, even under strong light.
*Images may differ from the actual product.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
A number of tasks can be done at the same time with the intuitive GUI.

Conformal Coating

Conformal Coating improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity etc.
The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
*Actual images (TV display) available may differ from the example images shown.
* Images are illustrated to enhance feature understanding.

Mobile Content Management

You can create a store profile and get template recommendations using the Promota* app. Users can customise templates as needed and easily create and manage content not only on PCs but also on mobile devices.
In a clothing store, a user is using the app to produce promotional content to display on the UH5J-H installed on the store’s wall.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
The AV control system helps users control the UH5J-H.

Compatible with AV Control System

The UH5J-H series has Crestron Connected Certification, a function and network-based control system that is dedicated to meeting rooms and that meets a growing need in the corporate meeting space market. * Network based control.



PANEL
  • Screen Size
    75
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    120Hz
  • Brightness
    500nit (Typ.)
    Contrast Ratio
    1,100:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bib, 1.07Billion colors
  • Response Time
    6ms (G to G)
    Surface Treatment(Haze)
    Haze 28%
  • Life Time
    50,000Hrs (Typ.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
    Output
    HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    Even bezel : 14.9mm
  • Weight(Head)
    41.5Kg
    Packed Weight
    51.2Kg
  • Monitor Dimension(W x H x D)
    1682.4 x 960.3 x 57.9mm
    (with LG Logo)
    Carton Dimensions(W x H x D) (Box outer size)
    1816 x 1123 x 228mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400
KEY FEATURE
  • Key features
    Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN,Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    180W (TBD)
    Max.
    260W (TBD)
  • BTU (British Thermal Unit)
    614.25 BTU/Hr(Typ.), 887.25 BTU/Hr(Max) (TBD)
    Smart Enegy Saving(~70%)
    126W (TBD)
  • DPM
    0.5W
    Power Off
    0.5W
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    AS/NZS 60950, CB Scheme
    EMC
    CISPR 32
  • ErP / Energy Star
    Yes (NewErP) / No (TBD)
OPS COMPATIBILITY
  • OPS Type Compatible
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Promota
    Yes (Not available for EU/CIS)
    Mobile CMS
    Yes
  • Signage 365 Care
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
    Optional
    OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)
SPECIAL FEATURE
  • Overlay Touch Compatibility
    Yes

Brand

LG
