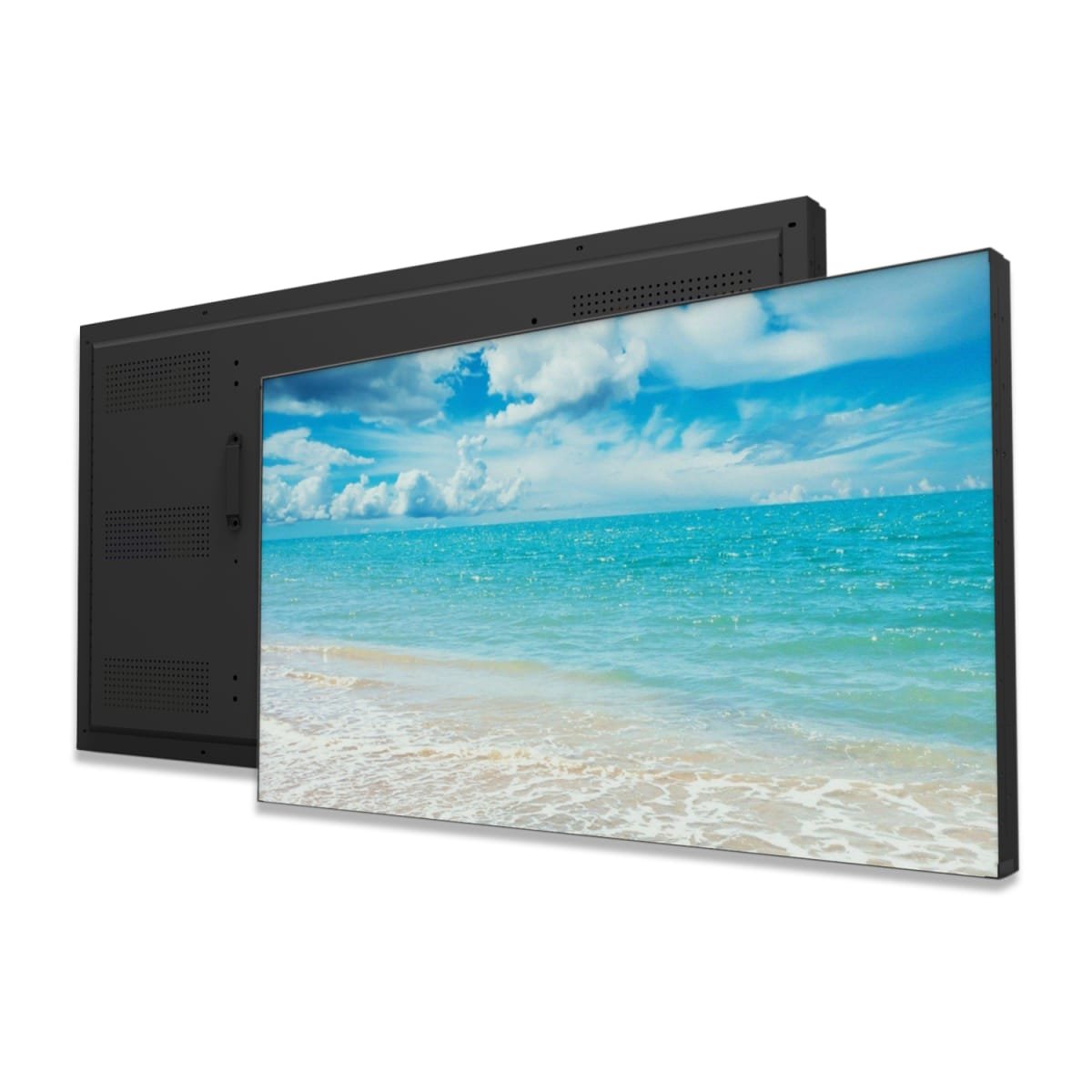

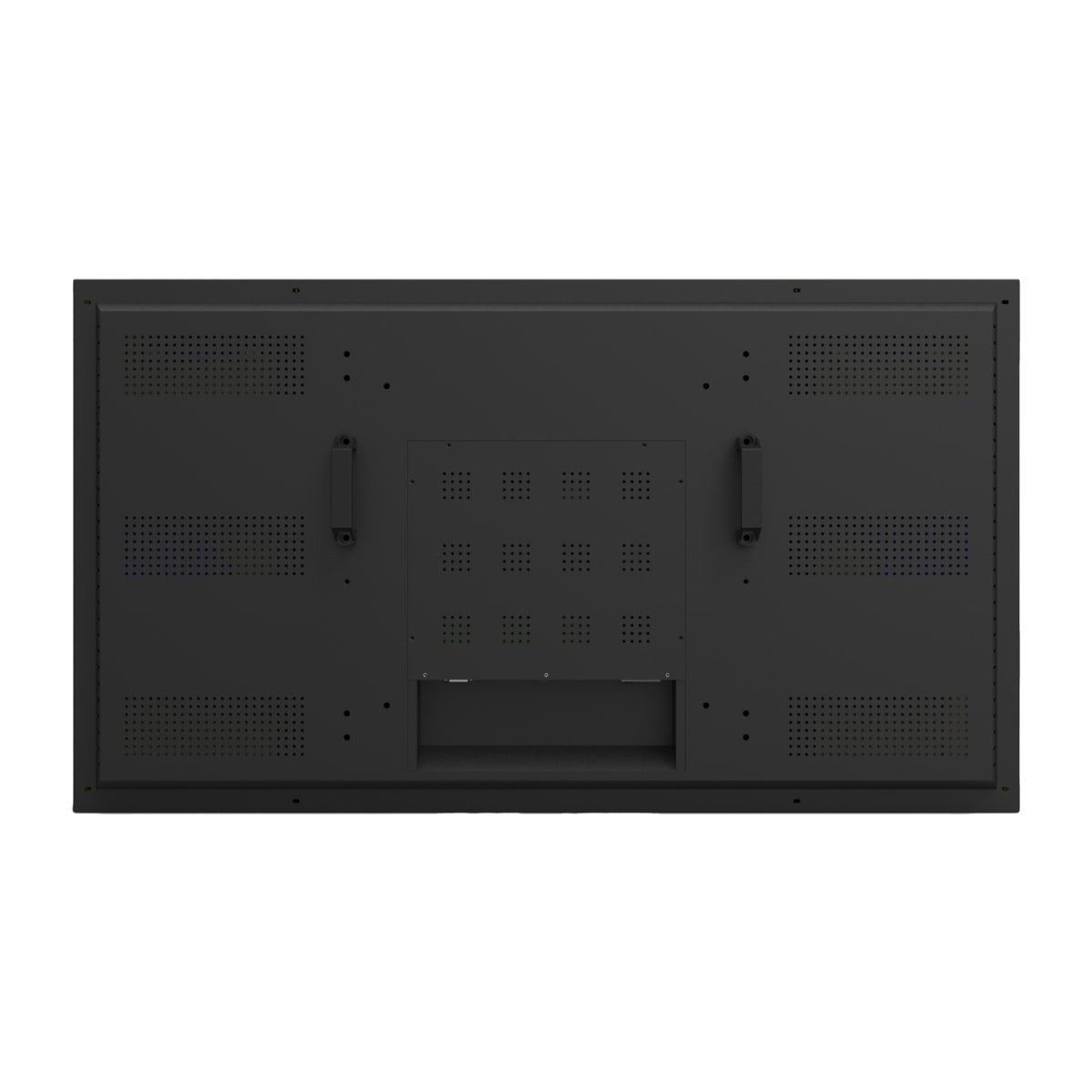

Video wall deployments demand consistency across every panel in the array — bezel uniformity, colour matching, and reliable signal distribution aren’t optional. The 46L35B5U is built to perform that role. It’s a tiled display solution designed to operate as part of a larger visual system, not as a standalone unit. The 1920 x 1080 resolution and 500-nit brightness rating sit squarely in the operational range for command centres and corporate reception environments where legibility and visual continuity matter throughout the day.
Key Features
- Ultra-Narrow Bezel Design: At 2.9mm bezel-to-bezel (1.8mm top/left, 1.1mm bottom/right), the visual gap between tiled panels is minimal enough that large-scale content reads as a continuous image rather than a segmented display. This geometry is critical when you’re assembling a multi-panel array — bezel width directly affects the perceived integrity of the visual system.
- Advanced 4K Decoding Chip: Although the panel itself is FHD, the built-in 4K 60Hz decoding capability means the display can accept and process 4K content, then downscale appropriately. Useful if your content infrastructure already delivers 4K and you’re building a mixed-resolution wall or planning for future upgrades.
- Android 11 Operating System: On-board Android 11 with 2GB DDR4 and 16GB eMMC storage allows direct app installation, scheduled playlisting, and over-the-air updates without requiring external media players. For multi-site deployments, OTA management reduces operational overhead across the entire panel array.
- Anti-Glare 25% Haze Coating: The 25% haze treatment reduces ambient reflections without noticeably degrading image sharpness or contrast. In bright lobbies or environments with windows, this coating keeps critical information visible without compromising the visual detail of content.
- Unlimited Daisy-Chain Capability: Hisense panels support daisy-chaining without quantity limits using standard HDMI cables — no external splitters required. For larger wall deployments, this simplifies signal distribution infrastructure and reduces the complexity of the technical backbone.
- Landscape and Portrait Orientation: The panel maintains consistent visual quality in both orientations, allowing flexibility in array design. Some broadcast and command centre deployments use portrait orientation for time-series data or vertical content feeds.
Specifications
| Specification | Detail |
|---|---|
| Panel Size | 46 inches (diagonal) |
| Resolution | 1920 x 1080 (FHD) |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 1200:1 (typical) |
| Bezel Width | 2.9mm (1.8mm T/L, 1.1mm B/R) |
| Haze | 25% anti-glare |
| Viewing Angle | 178° (horizontal and vertical) |
| Response Time | 8ms |
| Colour Depth | 16.7 million colours (8-bit) |
| Colour Gamut | 72% NTSC |
| Refresh Rate | 60Hz |
| Operating Hours | 24 x 7 |
| MTBF | 50,000 hours |
| Operating System | Android 11 |
| Processor (CPU) | ARM Cortex-A55 Quad Core |
| Processor (GPU) | Mali-G52 |
| Memory | 2GB DDR4 |
| Storage | 16GB eMMC |
| Backlight Type | DLED |
| Panel Type | ADS |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% (non-condensing) |
| Power Supply | 100–240V, 50/60Hz |
| Power Consumption | 150W |
Connectivity
- 2x HDMI (input) — Primary content feed; supports daisy-chaining across multiple displays
- 2x DisplayPort (input and output) — Higher bandwidth alternative to HDMI for signal distribution in large arrays
- 1x DVI (input) — Legacy signal support for older infrastructure
- 1x VGA (input) — Fallback connectivity for PC-based content sources
- 2x RS232 (input and output) — Serial control for integrated AV control systems and third-party automation platforms
- Ethernet port — Network connectivity for OTA updates and centralized management
For multi-panel video wall deployments with different integration requirements, explore our range of commercial video wall solutions.
