Philips Signage Solutions Q-Line Display

Manufacturer Skus for the below:

32” – 32BDL3511Q

43” – 43BDL3511Q

50” – 50BDL3511Q

55” – 55BDL3511Q

65” – 65BDL3511Q

75” – 75BDL3511Q

86” – 86BDL3511Q

Intensify your signage experience

Inform and enthrall with a Philips Q-Line Professional Fulll HD Display. This reliable solution can be up and running as quickly as you need.

Intensify your signage experience

Easy-setup 18/7 display.

• Direct LED Backlight
• Full HD

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you’re in charge of one screen or 100.

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

Schedule what you want, when you want with SmartPlayer

Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.

Technical Specifications

• Connectivity

Audio output

3.5mm jack

Video input

• • DVI-I (x 1)
  • HDMI 2.0 (x2)
  • USB 2.0 (x2)

Audio input

3.5 mm jack

External control

• • IR (in/out) 3.5 mm jack
  • RJ45
  • RS232C (in/out) 2.5 mm jack
• Picture/Display

Aspect ratio

16:9

Panel resolution

1920x1080p

Pixel pitch

0.36375 x 0.36375 mm

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

350  cd/m²

Display colors

16.7 Million

Contrast ratio (typical)

4000:1

Dynamic contrast ratio

500,000:1

Response time (typical)

6.5  ms

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Panel technology

VA

Clinical image

D-Image preset (dicom part 14 compatible)

Haze

2%

• Convenience

Placement

• • Landscape (18/7)
  • Portrait (18/7)

Tiled Matrix

Up to 10 x 15

Keyboard control

• • Hidden
  • Lockable

Remote control signal

Lockable

Signal loop through

• • RS232
  • IR Loopthrough

Energy saving functions

Smart Power

Network controllable

• • RS232
  • RJ45

Start-up

• • Switch on delay
  • Switch on status
  • Boot on source

Start-up window

enable / disable Philips logo

• Sound

Built-in speakers

2 x 10W RMS

• Power

Mains power

100 – 240V~, 50/60Hz

Consumption (Typical)

45  W

Consumption (Max)

65 W

Standby power consumption

<0.5 W

Power Saving Features

Smart Power

Energy Label Class

G

• Supported Display Resolution

Computer formats

• • 640 x 480, 60, 67, 72, 75Hz
  • 720 x 400, 70Hz
  • 800 x 600, 56, 60, 72, 75Hz
  • 832 x 624, 75Hz
  • 1024 x 768, 60, 70, 75Hz
  • 1152 x 864, 75Hz
  • 1152 x 870, 75Hz
  • 1280 x 720, 60Hz
  • 1280 x 800, 60Hz
  • 1280 x 1024, 60Hz
  • 1440 x 900, 60Hz
  • 1600 x 1200, 60Hz
  • 1680 x 1050, 60Hz
  • 1920 x 1080, 60Hz

Video formats

• • 480i, 60Hz
  • 480p, 60Hz
  • 576p, 50Hz
  • 576i, 50Hz
  • 720p, 60Hz
  • 1080i, 50, 60Hz
  • 1080p, 50, 60Hz
• Operating conditions

Altitude

0 ~ 3000 m

Temperature range (operation)

0 ~ 40  °C

MTBF

50,000  hour(s)

Temperature range (storage)

-20 ~ 60  °C

Humidity range (operation)[RH]

20 ~ 80% RH (No condensation)

Humidity range (storage) [RH]

5 ~ 95% RH (No condensation)

• Multimedia Applications

USB Playback Video

• • H.264
  • JPEG
  • MPEG
  • WMV3

USB Playback Picture

• • BMP
  • JPEG
  • PNG

USB Playback Audio

• • AAC
  • WMA
  • MPEG
  • HEAAC
• Accessories

Included Accessories

• • AC Switch Cover
  • IR sensor cable (1.8 m) (x1)
  • Philips logo (x1)
  • Quick start guide (x1)
  • Remote control & AAA batteries
  • RS232 daisy chain cable (x1)
  • USB Cover and screw x1
  • Wire Clamper (x3)
  • AC power cord

Stand

BM02541/BM05911(optional)

• Miscellaneous

On-Screen Display Languages

• • Arabic
  • English
  • French
  • German
  • Italian
  • Japanese
  • Polish
  • Russian
  • Spanish
  • Simplified Chinese
  • Turkish
  • Traditional Chinese

Warranty

3 year warranty

Regulatory approvals

• • CE
  • FCC, Class A
  • CB
  • EMF
  • VCCI
  • PSB
  • CU
  • ETL

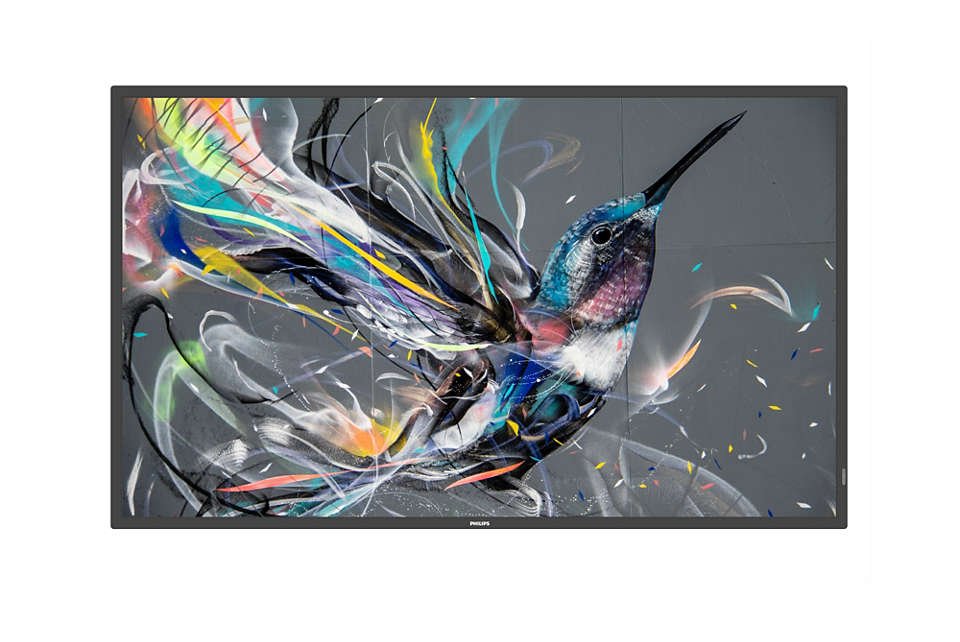

Philips Q-Line Series – LAN With Templates

Manufacturer Skus for the following:

43” – 43BDL3550Q

50” – 50BDL3550Q

75” – 75BDL3550Q

Stand out

Easy-setup 18/7 display.

• Direct LED Backlight
• Ultra HD

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you’re in charge of one screen or 100.

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

CMND & Create. Develop and launch your own content

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it’s a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

Integrated media player. Easily schedule USB content

Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Android SoC processor. Native and web apps

Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.

Connect and control your content over the internet

Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist

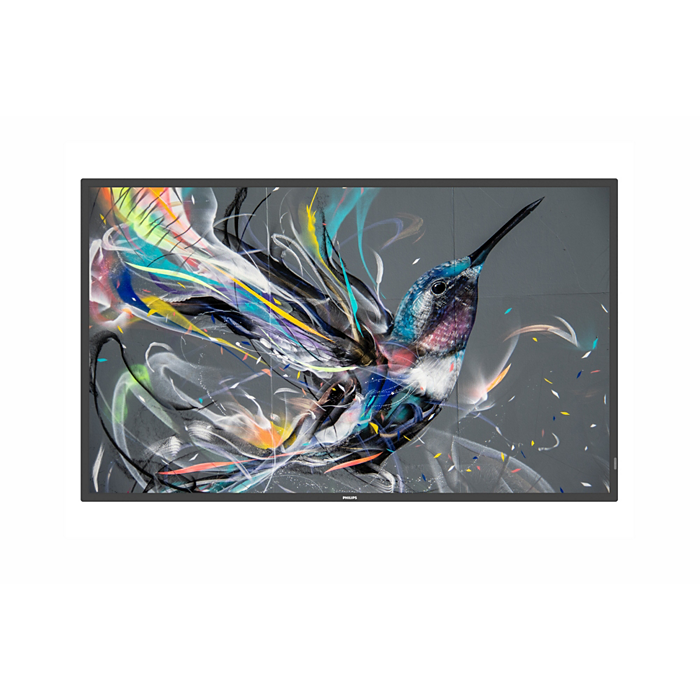

Philips Q-Line Series – Cloud, USB or LAN

Manufacturer Skus for the following:

32” – 32BDL3650Q

43” – 43BDL3650Q

50” – 50BDL3650Q

55” – 55BDL3650Q

65” – 65BDL3650Q

75” – 75BDL3650Q

86” – 86BDL3650Q

98” – 98BDL3650Q

Stand out from the crowd

Your versatile and easy-to-set-up 18/7 display

Connect and control your content via the cloud

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.

FailOver. Ensure your display never goes blank

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Easily schedule content from USB or internal memory

Easily schedule content to play from USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Optional Interact for wireless screen share

Wirelessly screen share using your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting into the secured network.

Android SoC processor. Native and web apps

Powered by our Android 10 SoC platform, these hard-working Philips professional displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer.

Catch the Wave for revolutionary results

Unlock the power, versatility and intelligence inside your Philips Q-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.

Philips Q-Line Series – EcoDesign

Manufacturer Skus for the following:

50” – 50BDL3650QE

55” – 55BDL3650QE

65” – 65BDL3650QE

Display better

100% recycled and recyclable packaging

Designed with manufacturing processes, physical features, materials, packaging and built-in software that are kinder to the environment and deliver better energy efficiency, the Philips Signage 3650 EcoDesign display is designed to operate using less than half the power of its counterparts, while still delivering the same unrivalled performance.

Android SoC processor. Native and web apps

Powered by our Android 10 SoC platform, these hard-working displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring that display specs stay up to the moment for longer.

Connect and control your content via the cloud

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full HD resolution. Simply connect the display to the Internet using the optional CRD22 Wi-Fi module or via LAN, and enjoy your own created playlists.

EPEAT Silver Climate+ certified

Recognised by and registered with EPEAT with a Silver Climate+ Ecolabel, the Philips Signage 3650 EcoDesign meets the robust set of criteria laid out by the world’s premier ecolabel for electronics.

FailOver. Ensure that content is always running

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content onscreen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Optional Interact for wireless screen share

Wirelessly screen-share using your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting to the secured network.

PPDS Wave ready for remote management

Unlock the power, versatility and intelligence inside your Philips Signage 3650 EcoDesign displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules — saving you time, energy and environmental impact.

Wi-Fi and Bluetooth 5.2 via optional module

Easily schedule content to play from a USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.
