Philips Videowall X Series Signage Solutions
** FREE Freight – If NOT Free Then The The Client Is Advised Before Order Processing.

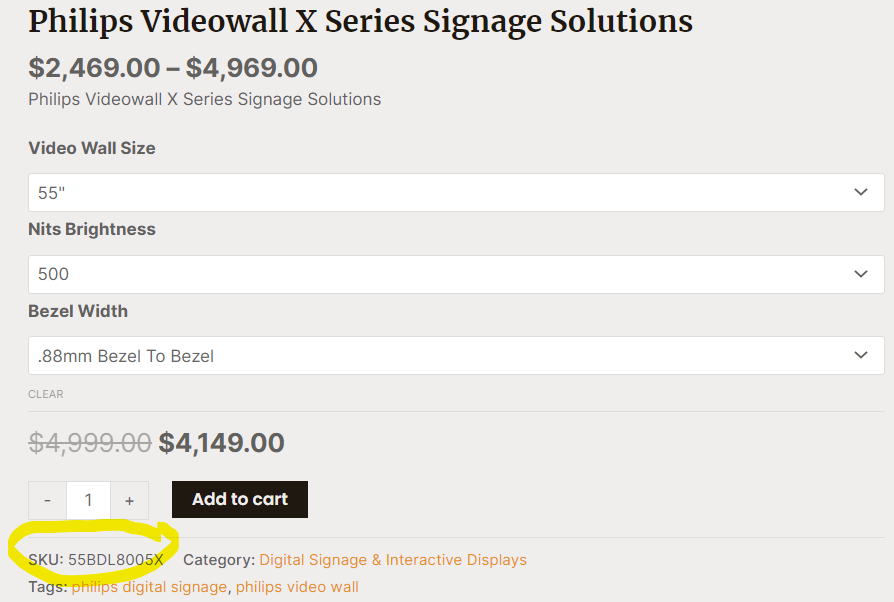

Please take note of the SKU that appears when you select your screen – an example being below
From the Above Manufacturer SKU you may wish to visit the full products specs
Below is a Description from one of the best selling models:
Signage Solutions Video Wall Display
55BDL8005X/75

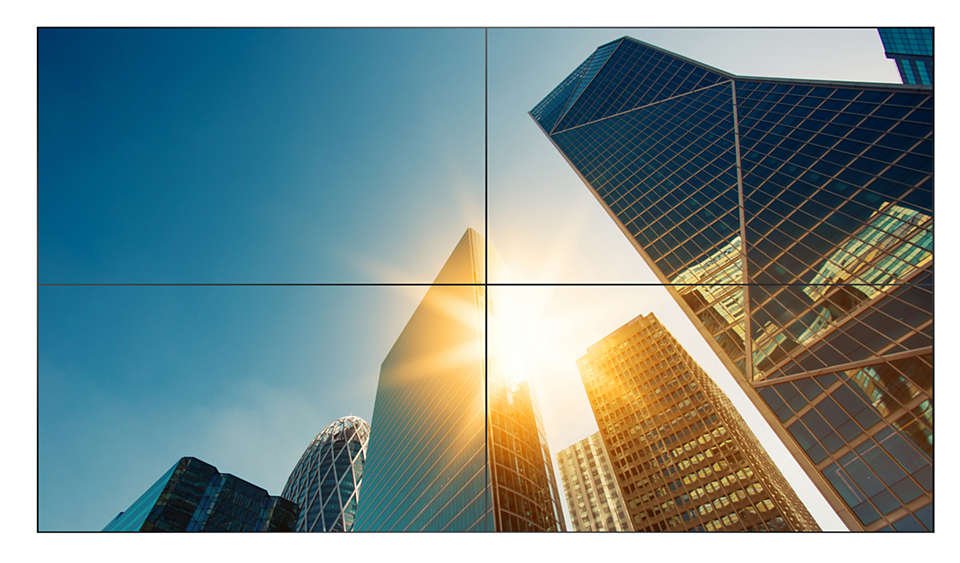

Impressive videowall
Take presentations and corporate branding to the next level. The Philips X-Line Videowall display brings your content to life to ensure absolute audience engagement in every setting with Pure Colour Pro.
Impressive videowall
Inspire your team and guests
- 55″
- Direct LED Backlight
- Full HD
- 500cd/m²
Ultra-narrow bezels. For distraction-free images
Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.
Technical Specifications
- Connectivity
Audio output
3.5 mm Mini Jack (x1)
Video input
- Display Port1.2 (x1)
- DVI-D (x1)
- HDMI 1.4 (x2)
- VGA (Analog D-Sub) (x1)
Audio input
3.5 mm mini jack (x1)
Other connections
- OPS
- USB 2.0 (x1)
- Thermal sensor
Video output
DisplayPort 1.2 (x1)
External control
- IR (in) 3.5 mm jack
- LAN RJ45 (x2)
- Picture/Display
Diagonal screen size (metric)
138.7 cm
Diagonal screen size (inch)
54.6 inch
Aspect ratio
16:9
Panel resolution
1920x1080p
Pixel pitch
0.63 x 0.63 mm
Optimum resolution
1920 x 1080 @ 60 Hz
Brightness
500 cd/m²
Display colors
1.07 B
Contrast ratio (typical)
1100:1
Dynamic contrast ratio
500,000:1
Response time (typical)
8 ms
Viewing angle (horizontal)
178 degree
Viewing angle (vertical)
178 degree
Haze
28 %
- Convenience
Placement
- Landscape (24/7)
- Portrait (24/7)
Tiled Matrix
Up to 15 x 15
Screen saving functions
Pixel Shift, Low Bright
Signal loop through
- DisplayPort
- IR Loopthrough
- RJ45
Ease of installation
- Carrying Handles
- Smart Insert
Energy saving functions
Smart Power
Network controllable
- RS232
- RJ45
RJ45 hub
available
- Sound
Built-in speakers
2 x 10W (RMS)
- Power
Consumption (Typical)
180 W
Consumption (Max)
370 W
Standby power consumption
<0.5W
- Supported Display Resolution
Computer formats
- 640 x 480, 60, 72, 75Hz
- 720 x 400, 70Hz
- 800 x 600, 60, 75Hz
- 1024 x 768, 60, 75Hz
- 1280 x 768, 60Hz
- 1280 x 800, 60Hz
- 1280 x 960, 60Hz
- 1280 x 1024, 60Hz
- 1360 x 768, 60Hz
- 1366 x 768, 60Hz
- 1600 x 1200, 60Hz
- 1920 x 1080, 60Hz
Video formats
- 720p, 50, 60Hz
- 1080i, 25, 30Hz
- 1080p, 50, 60Hz
- 2160P 50, 60Hz ((HDMI/OPS/DP)
- Dimensions
Set Width
1210.5 mm
Product weight
23.8 kg
Set Height
681.2 mm
Set Depth
97.3 mm(D@WallMount)/98.4 mm(D@Handle) mm
Set Width (inch)
47.66 inch
Set Height (inch)
26.82 inch
Wall Mount
400mm x 400mm, M6
Set Depth (inch)
3.83 (D@WallMount)/3.87 (D@Handle) inch
Bezel width
0.44 mm + 0.44 mm
- Operating conditions
Altitude
0 ~ 3000 m
Temperature range (operation)
0 ~ 40 °C
MTBF
50,000 hour(s)
Temperature range (storage)
-20 ~ 60 °C
Humidity range (operation)[RH]
20 – 80% (without condensation)
Humidity range (storage) [RH]
5 – 95% (without condensation)
- Accessories
Included Accessories
- AC Switch Cover
- Gap pad x3
- IR sensor cable (1.8 m) (x1)
- Kit-1 (x1)
- Kit-2 (x2)
- Quick start guide (x1)
- Remote control & AAA batteries
- RJ45 / RS232 converter
- Wire Clamper (x3)
- Power cord
- DP cable (x1)
- Edge alignment pin (x2)
- RJ45 cable (x1)
- Miscellaneous
On-Screen Display Languages
- Arabic
- English
- French
- German
- Italian
- Japanese
- Polish
- Russian
- Spanish
- Simplified Chinese
- Turkish
- Traditional Chinese
Warranty
3 years warranty
Regulatory approvals
- CE
- FCC, Class A
- RoHS
- CB
- BSMI
- ETL
