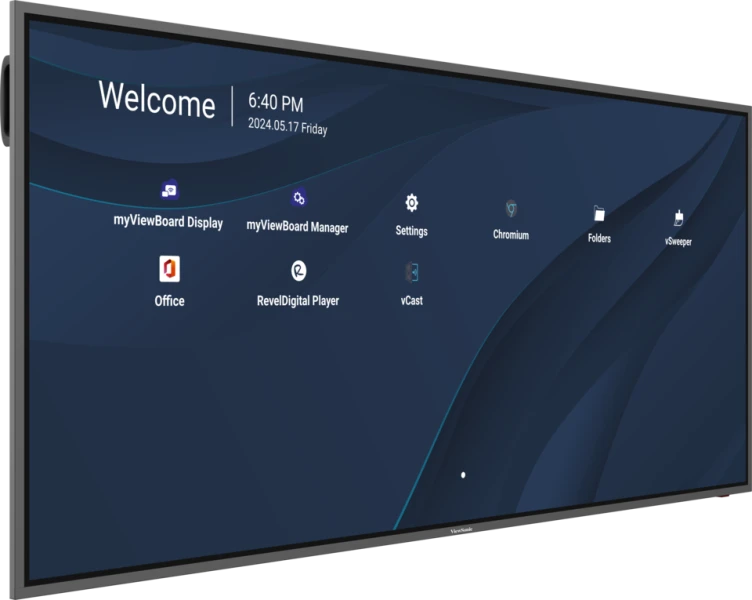

ViewSonic CDE92UW 92″ 5K Digital Signage Display | Commercial Networked Signage

In high-traffic public spaces, how content arrives on screen and stays there matters as much as what’s displayed. The CDE92UW’s 5K ultrawide format and integrated Android 13 platform mean signage operators interact with a system that responds intuitively—wireless content casting feels immediate, device scheduling is straightforward, and the interface doesn’t create friction between intent and execution. For hospitality venues, transport hubs, and corporate environments, that responsiveness translates directly into deployment reliability.

Key Features

• 92-inch 5K ultrawide display with 21:9 aspect ratio: The 5120 × 2160 resolution and extended horizontal format deliver 33% more screen real estate than standard 16:9 displays, allowing signage content to feel proportional in large-scale environments rather than stretched or letterboxed. This geometry is particularly effective for menu boards, wayfinding, and multi-zone content layouts without additional displays.
• 500 nits brightness with anti-glare surface: Rated at 500 nits typical, the display cuts through ambient light in retail and lobby environments where windows or overhead lighting compete for visibility. The 25% haze anti-glare treatment reduces reflections without sacrificing contrast, keeping content readable from multiple angles in uncontrolled lighting conditions.
• Android 13 with myViewBoard and integrated device management: The octa-core RockChip processor and 8GB RAM run Android 13 natively, allowing direct app deployment, content scheduling, and remote monitoring without external media players. ViewSonic Manager enables centralised control across multiple displays at different sites, reducing operational overhead in multi-venue deployments.
• Wireless content casting via myViewBoard and AirSync: Organisations can push content wirelessly without HDMI runs or external dongles. The VSB-050 WiFi dongle is included, and myViewBoard (transitioning to AirSync in Q1 2025) supports common casting protocols, streamlining content updates in fast-moving environments like hospitality venues or retail promotional displays.
• Portrait and landscape orientation: The 21:9 aspect ratio rotates cleanly into portrait mode for digital signage applications like vertical menu boards, directory signage, or ticker displays. This flexibility allows a single display model to address multiple installation contexts within the same site.
• 24/7 operation rating with 50,000-hour backlight life: Designed for continuous operation, the display carries a rated backlight life of 50,000 hours typical—roughly 5.7 years at 24/7 runtime—reducing unexpected maintenance cycles in critical signage deployments. Commercial-grade thermal management and wide operating temperature range (0–40°C) accommodate uncontrolled environments like outdoor-adjacent lobbies or non-climate-controlled storage areas.

Specifications

Connectivity

• HDMI inputs: 4 rear ports (1 × HDMI 2.1 for 5K@60Hz content; 3 × HDMI 2.1 for 4K@60Hz)—supports multiple source devices or redundant playback servers.
• DisplayPort input: 1 rear port supporting 5120 × 2160@60Hz, allowing single-cable content delivery from professional graphics or presentation systems.
• USB-A ports: 4 total (1 × USB 2.0 rear, 2 × USB 3.2 Gen 1 rear, 2 × USB 3.2 Gen 1 top)—enables direct media playback, device charging, and peripheral connectivity without external hubs.
• USB-C: 1 rear port with 100W Power Delivery, DisplayPort 1.2, and 100Mbps Ethernet—supports content casting and network fallback when primary LAN is unavailable.
• Networked management: RJ45 LAN port for ViewSonic Manager integration, centralised scheduling, and remote firmware updates across multiple displays.
• Audio connectivity: 1 × 3.5mm audio input, 1 × 3.5mm audio output, and 1 × SPDIF output for integration with existing sound systems or multi-display audio distribution.
• RS-232 control: 1 port with included adapter for integration into facility management systems, lighting controls, or legacy AV automation infrastructure.
• OPS slot: Single 80-pin OPS slot accommodates optional compute modules for expanded functionality without replacing the core display.
• WiFi module slot: Dedicated slot for wireless dongles; VSB-050 WiFi dongle included for myViewBoard and AirSync casting.

Warranty

This ViewSonic display is covered by a 3-year replacement warranty. In the event of a verified hardware fault, ViewSonic will replace the unit, supporting reliable operation across commercial and signage deployments. Contact Kickstart Computers for warranty claims and support.
