Camera and Speakerphone — Matched, Tested, and Shipped as One System

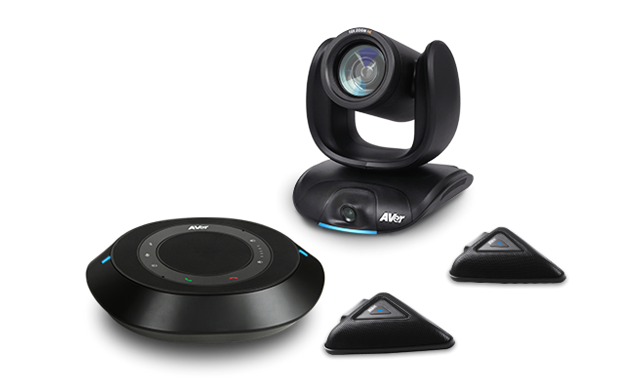

The VC550 combines the CAM550 dual-lens 4K camera and the FONE540 speakerphone into a single system where audio and video are tuned to work together. For rooms that are large enough to need a PTZ camera, they’re almost always large enough to need a dedicated speakerphone — and buying them as a matched pair means you’re not debugging audio/video sync issues from two separate vendors.

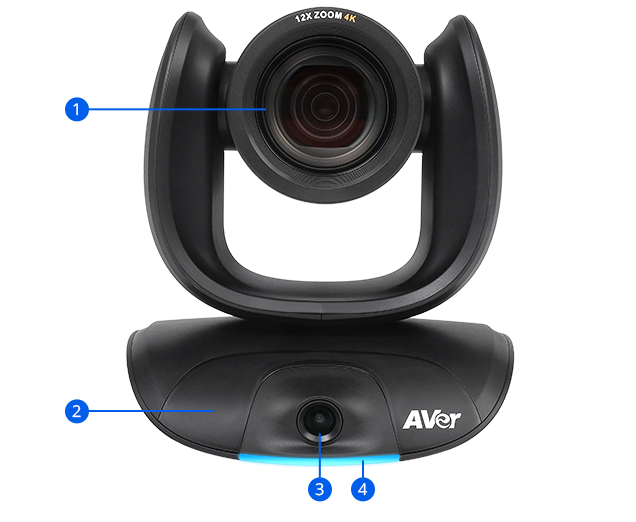

The CAM550 runs two lenses simultaneously. The primary PTZ lens delivers 12X optical zoom and 24X total zoom with a focal length range of 3.9 mm to 47.3 mm, covering a DFOV of 85° wide down to tight presenter detail. The secondary AI lens at 95° DFOV provides a continuous panoramic room overview — when someone new walks in, the AI lens detects them and triggers the PTZ to automatically reframe to include them. Smart Gallery takes that further: AI face and body detection crops each participant into equal-sized headshot or half-body feeds, so remote attendees see everyone at the same scale regardless of where they’re sitting. Virtual USB streaming allows the camera to operate as a video source over Ethernet — useful for rooms where running a USB cable to the camera is impractical.

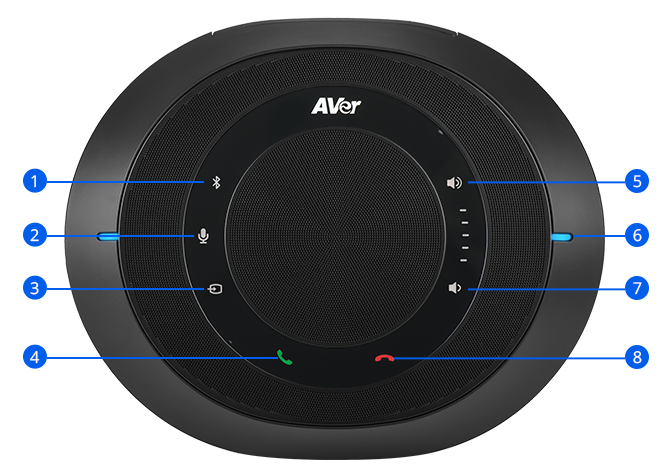

The FONE540 speakerphone is built for rooms where audio quality matters. Double-talk detection handles both sides of a conversation speaking simultaneously without clipping either — a common failure point in rooms with aggressive echo cancellation. Advanced noise suppression continuously filters keyboard typing, air conditioning, and ambient office sounds. The daisy-chain expansion capability is practically important: add up to two additional FONE540 speakerphones or up to four expansion pair microphones without any additional processing hardware, mixer, or amplifier. Three speakerphones in a daisy chain cover a room that a single unit simply can’t.
Control options are comprehensive: VISCA, Pelco-P, and Pelco-D via RS-232 with 128 preset positions; VISCA over IP; PTZApp 2 for room management including Smart Gallery configuration and Virtual USB streaming; WebUI for browser-based access via Chrome. EZManager 2 provides central management for multi-room deployments — remote firmware/software upgrades, camera control, and settings management from a single interface. Three-year warranty on both camera and speakerphone.

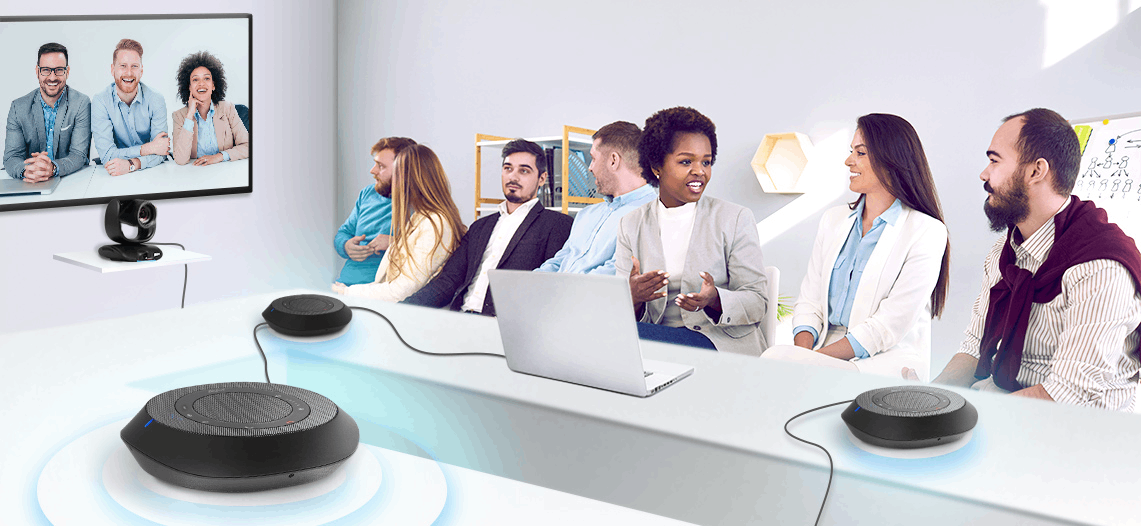

Daisy-Chain Expansion — Up to Three Speakerphones or Four Microphones
The VC550’s FONE540 speakerphone supports daisy-chain expansion: add up to two additional FONE540 units (three total) or up to four expansion pair microphones to extend audio coverage across larger or irregularly shaped rooms. No additional processing hardware, mixer, or amplifier required — just cable and connect as the room demands.
Key Features
- 4K dual-lens with 24X total zoom — 12X optical PTZ lens (DFOV 85°) and 95° AI secondary lens run simultaneously; 128 preset positions via VISCA; pan ±170°, tilt +90°/-30°
- Dynamic framing with newcomer detection — AI secondary lens detects new arrivals and triggers the PTZ to automatically reframe the group shot without manual input
- Smart Gallery — AI face and body detection crops each participant into equal-sized headshot or half-body feeds; configured via PTZApp 2
- Virtual USB streaming — use the camera as a video source over Ethernet; useful when USB cable runs to the camera position are impractical
- FONE540 double-talk detection — both sides can speak simultaneously without audio clipping; advanced noise suppression filters keyboards, AC, and ambient office sounds
- Daisy-chain audio expansion — up to 3× FONE540 speakerphones or 4× expansion pair microphones; no additional processing hardware required
- EZManager 2 central management — remote firmware/software upgrades, camera control, and settings for multi-room deployments from a single interface
- 3-year warranty on camera and speakerphone — both units covered; Australian stock through Kickstart Computers

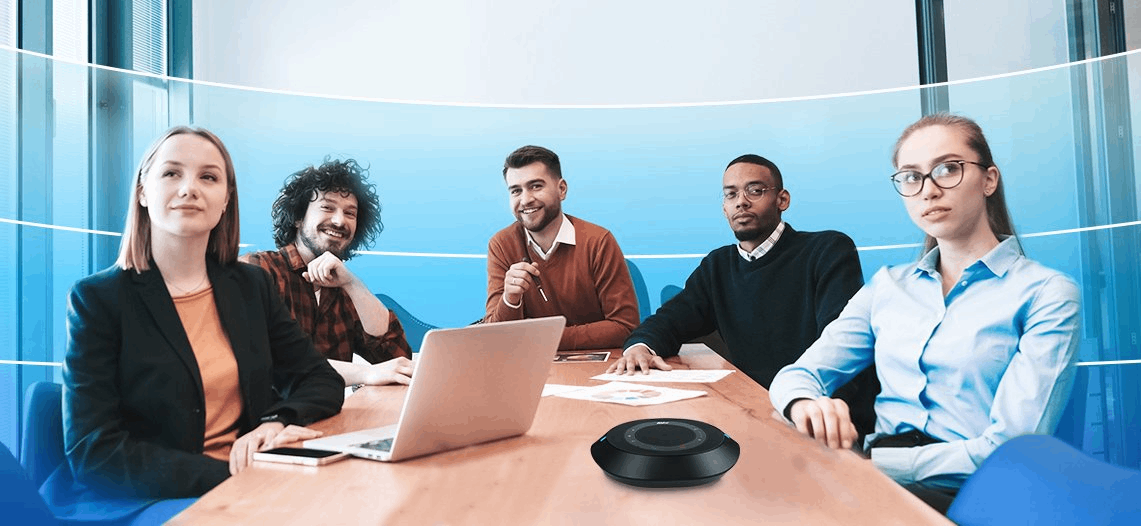

Advanced Noise Suppression — Silence the Office, Hear the Meeting
The FONE540 continuously filters keyboard typing, air conditioning, and ambient office sounds before they reach the far end. The result is clean, consistent audio regardless of what’s happening outside the meeting — no asking remote participants to wait while you mute and move away from the noise source.
Double-Talk Detection — Natural Conversation Without Audio Dropout
Standard echo cancellation often mutes one speaker when both sides talk simultaneously. The FONE540’s double-talk detection handles overlapping speech without clipping either side — conversations flow naturally, interruptions are heard, and the call feels like a real discussion rather than a managed turn-taking exercise.

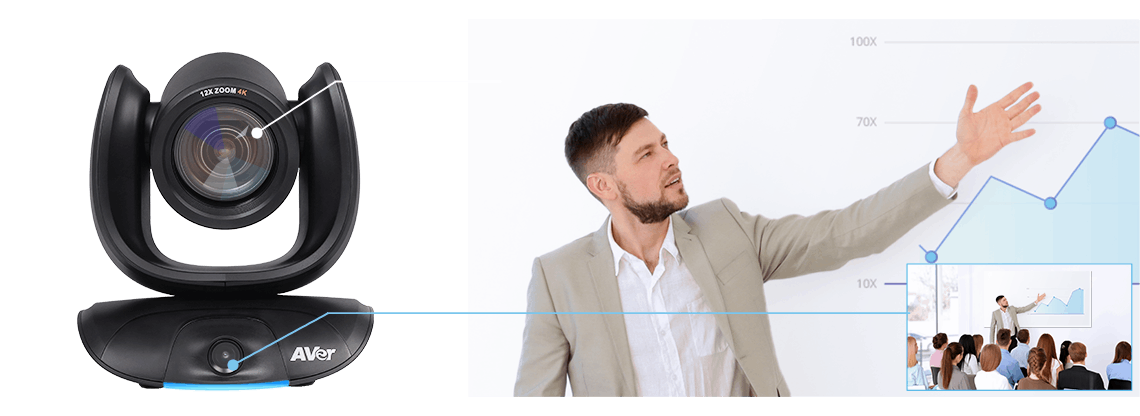

4K Dual Lens with 24X Zoom — PTZ and Wide Angle Running Simultaneously
The CAM550 runs two lenses at once: a 12X optical PTZ camera (24X total zoom) tracks and zooms on the active speaker, while a 95° AI secondary lens maintains a continuous panoramic room view. Together they cover the full meeting space without compromise — the PTZ never misses a speaker, and the wide lens ensures no one is out of frame.
Dynamic Framing — The Camera Reframes When Someone Walks In
When a participant arrives after the meeting has started, the AI secondary lens detects them immediately and triggers the PTZ to reframe the group shot to include them. The process is fully automatic — no one needs to pause the meeting, touch a controller, or call attention to it. The camera adjusts silently and immediately.
Smart Gallery — Every Participant at the Same Scale
Smart Gallery uses AI face and body detection to crop each participant into an equal-sized individual feed — headshot or half-body mode. Remote attendees see everyone at the same scale rather than a wide shot where the person at the far end is a fraction the size of the person nearest the camera. Configured once in PTZApp 2, it runs automatically for every meeting thereafter.
Specifications
| Category | Specification | What It Means for You |
|---|---|---|
| PTZ Lens | 1/2.8″ 4K Sony Exmor CMOS; 12X optical, 2X digital (24X total); DFOV 85°, pan ±170°, tilt +90°/-30° | 12X optical zoom with 24X total covers rooms from wide shot to tight close-up |
| AI Secondary Lens | 1/2.5″ 4K Sony Exmor CMOS; DFOV 95°; frame rates match PTZ settings | Wide AI lens provides continuous room overview and newcomer detection simultaneously |
| Frame Rates | 4K/30fps; 1080p/60fps; 720p/60fps; multiple lower resolutions | Smooth 4K and Full HD output for display, recording, and conferencing |
| Preset Positions | 10 via IR remote; 128 via RS-232 VISCA command | 128 presets for precise zone tracking and control system integration |
| Smart Gallery | AI face and body detection; headshot and half-body modes; PTZApp 2 | Equal-sized individual participant feeds — configured once, runs automatically |
| Dynamic Detection | AI secondary lens detects newcomers; PTZ auto-reframes | Camera keeps the group shot accurate when people arrive late |
| Virtual USB Streaming | Camera as video source over Ethernet | Deploy the camera where USB cable runs are impractical |
| FONE540 Speakerphone | Double-talk detection; advanced noise suppression; UAC plug-and-play | Both sides speak simultaneously without clipping; keyboards and AC noise filtered |
| Audio Expansion | Daisy-chain: up to 3× FONE540 or 4× expansion pair microphones | Scale audio coverage for large or irregular rooms without additional hardware |

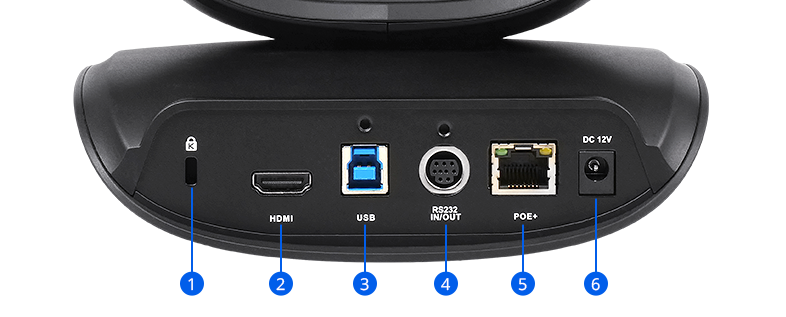

| USB (Camera) | USB 3.1 Type-B; backward compatible with USB 2.0; UVC plug-and-play | Single cable to PC; no drivers required |
| USB (Speakerphone) | Micro USB 2.0; UAC plug-and-play | Separate audio connection; no driver installation |
| HDMI Out | 1× HDMI (camera) | Display camera output on the room screen |
| Control | IR remote, VISCA/Pelco-P/Pelco-D via RS-232, VISCA over IP, PTZApp 2, WebUI, EZManager 2 | Full control suite for standalone rooms and multi-room enterprise deployments |
| System Requirements | Windows 7/10/11; macOS 10.14+; Chromebox v94+ | Broad OS compatibility; UVC/UAC plug-and-play |
| Camera Dimensions | 170.8 × 190.5 × 173 mm, 2.1 kg | Compact PTZ; wall bracket, tripod screw, and RS-232 adapter included |
| Speakerphone Dimensions | 220 × 49.5 × 181.5 mm, 0.8 kg | Low-profile; sits centrally on the conference table |
| Compatible Apps | Zoom, Teams, Google Meet, Skype for Business, RingCentral, Webex, BlueJeans, and more | Certified for all major platforms |
| Optional Accessories | Expansion speakerphone (daisy-chain, 10 m cable), expansion pair microphone, ceiling mount, foldable TV mount, USB 3.1 extender | Scale audio and installation options as required |
| Warranty | Camera and Speakerphone: 3 years | Accessories: 1 year | Both units covered; Australian stock via Kickstart Computers |
Warranty & Support
The AVer VC550 — including the CAM550 camera and FONE540 speakerphone — is covered by a 3-year limited hardware warranty on both units and a 1-year warranty on accessories. Australian stock.
Kickstart Computers provides pre-sales consultation and post-sales support for VC550 deployments in corporate boardrooms, training rooms, and government environments across Australia.
