Small-to-medium meeting rooms face a specific challenge: too large for a video bar but don’t justify a full multi-camera system. The Yealink MVC S40 bridges this gap with the SmartVision 40 — a single integrated device combining dual 48MP lenses, 8-mic array, stereo speakers, and on-device AI.
The SmartVision 40 uses fixed dual-lens stitching to merge two 48MP sensor feeds into a seamless 120° panorama — delivering full room coverage from one ceiling or wall position. AI tracking (IntelliFocus, Multi-Stream IntelliFrame, Video Fence) runs on the MCore 4’s dedicated NPU (34 TOPS), detecting and framing speakers in real-time with no cloud dependency or latency.
Audio reaches 6 meters via an 8-element MEMS array with noise reduction. The system supports up to 2 expansion microphones (VCM35, VCM36, CM20) without camera replacement — key when meeting spaces evolve.

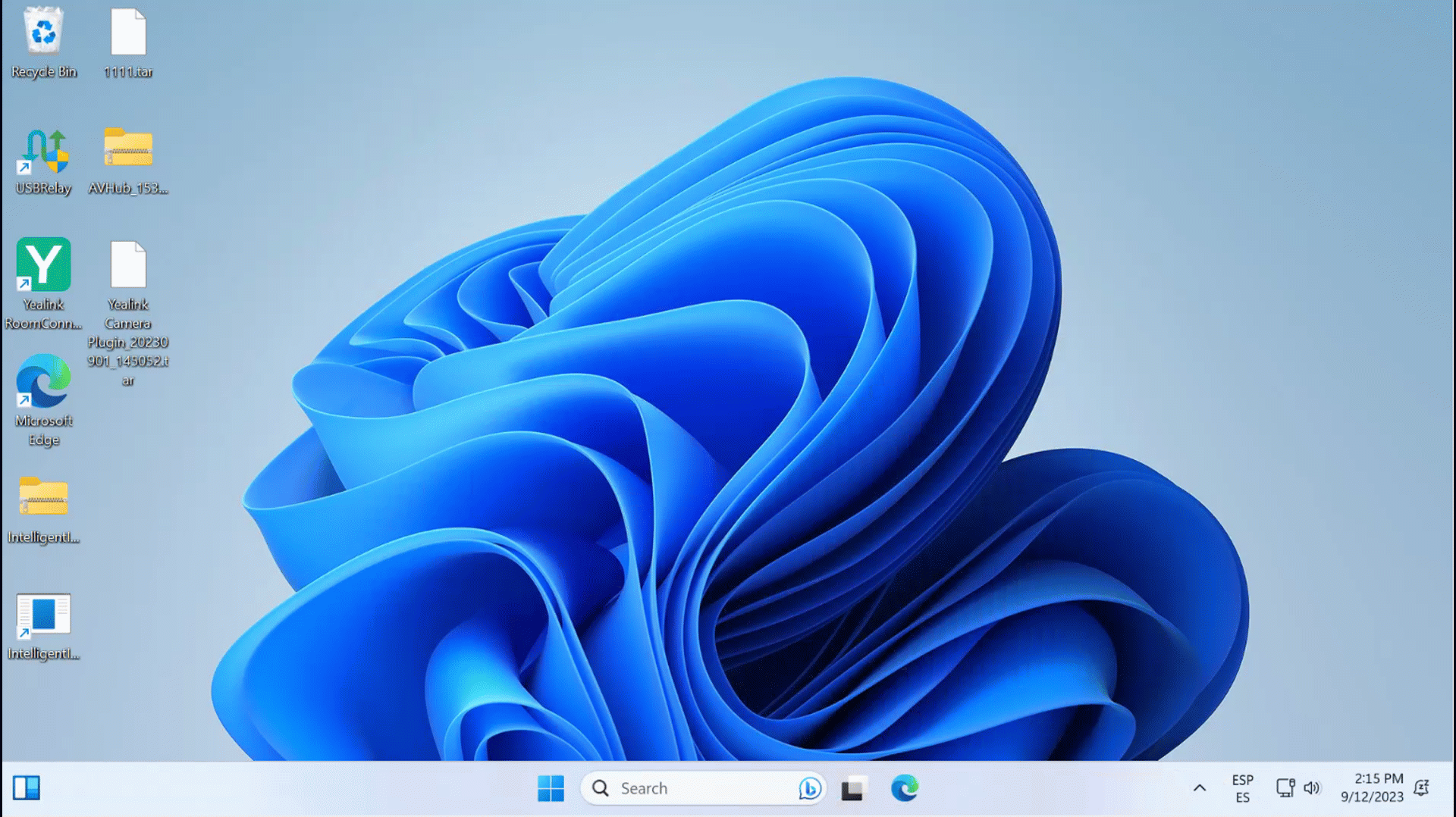

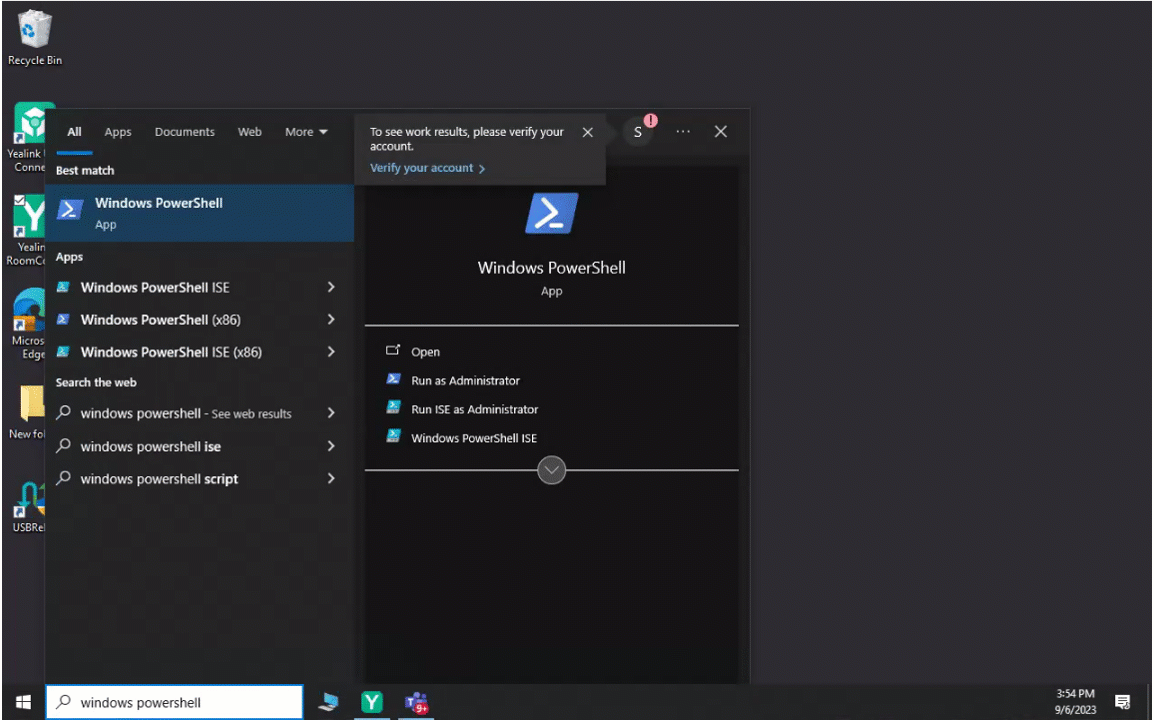

The MCore 4 runs Windows 11 IoT Enterprise with Teams Rooms preloaded. The Intel Ultra5 125H includes a dedicated NPU, separating AI workload from Teams Rooms CPU for stable long-term operation. Three HDMI outputs support dual displays plus a confidence monitor; 4K HDMI-In preserves presentation quality.
MTouch Plus 11.6″ IPS connects via single CAT5e (data + power). It surfaces upcoming meetings for one-touch join, handles camera and content controls, and displays live RoomSensor data. RoomSensor (Bluetooth) detects occupancy across 120°, auto-wakes the system, and shows real-time temperature and humidity.
Content sharing is wired (HDMI/USB-C) or wireless (WPP30 adapter, 1080p/30fps). All devices support Yealink Device Management Platform for remote firmware, configuration, diagnostics, and monitoring — eliminating on-site visits for routine maintenance, especially valuable for Australian regional offices.
The MVC S40 suits small boardrooms, huddle spaces, focus rooms, and medium training rooms where one integrated device handles the full space — a simpler deployment than multi-camera setups.
Browse our full Yealink product range or explore our complete video conferencing equipment guide.
Dual-Lens Full Room Coverage — No Multiple Camera Heads

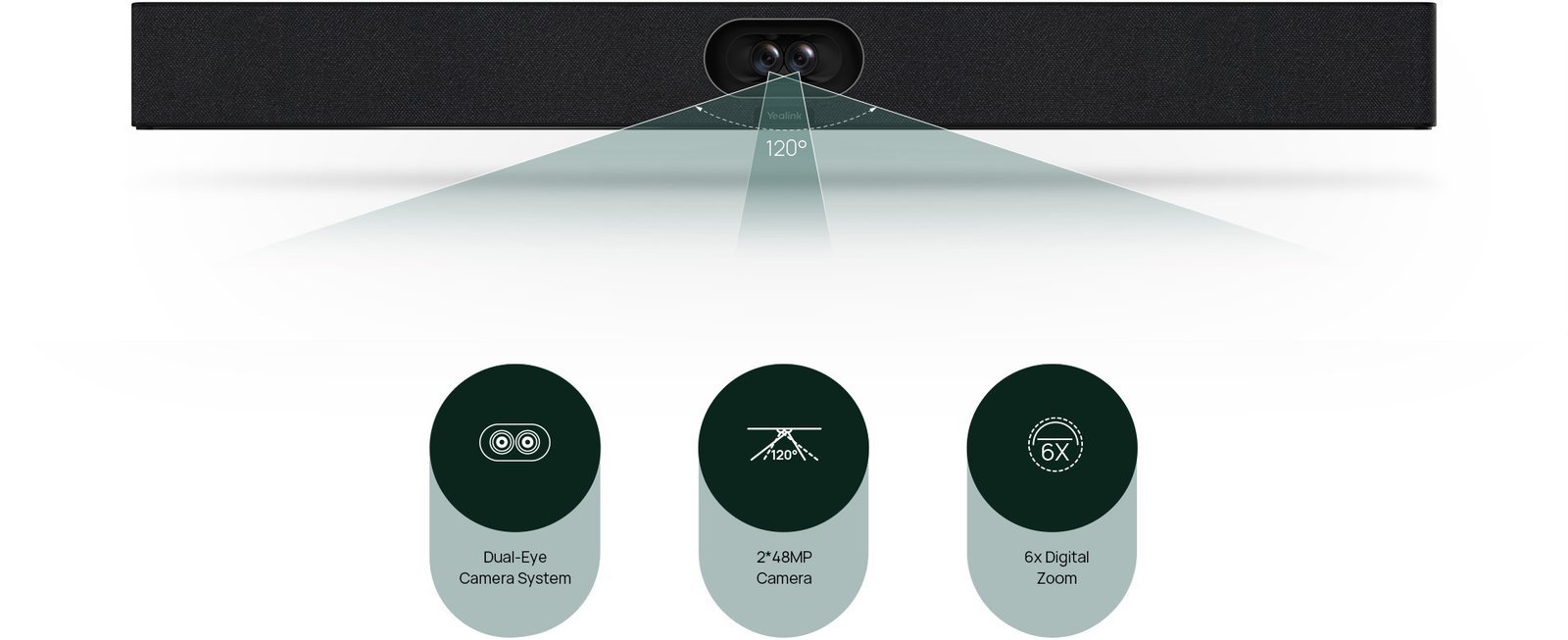

The SmartVision 40 combines two 48MP sensors with fixed-lens stitching technology to deliver a seamless 120° panorama from a single ceiling or wall mount. Unlike conventional multi-camera deployments, this eliminates mechanical complexity and simplifies installation while maintaining full room visibility.
Key Features
- SmartVision 40 dual 48MP camera — fixed dual-lens stitching delivers 120° full room coverage without mechanical PTZ delays

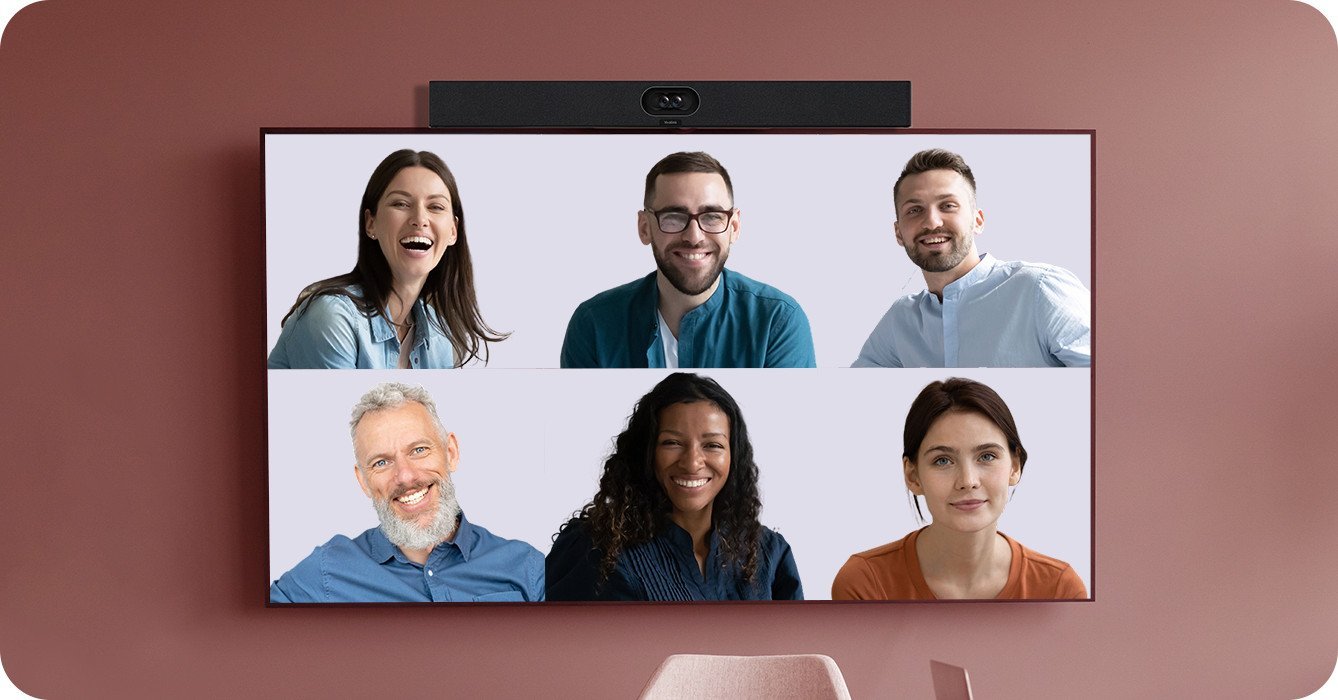

- Multi-Stream IntelliFrame on-device — auto-frames active speakers, no cloud processing
- IntelliFocus and Video Fence — real-time speaker detection with zone control to prevent false switches
- Intel Ultra5 125H with NPU (34 TOPS) — dedicated AI chip runs all tracking without impacting Teams Rooms CPU
- 6-meter voice pickup with 8× MEMS mic array — supports 2× expansion microphones for larger spaces
- MCore 4 — Windows 11 IoT Enterprise preloaded — Teams Rooms app and Yealink RoomConnect installed, 16GB DDR5, 256GB SSD, 3× HDMI
- MTouch Plus 11.6″ touch panel — single CAT5e for data and power, one-touch meeting join, live RoomSensor display
- 4K HDMI-In plus wired/wireless content sharing — lossless presentations via USB-C, HDMI, or WPP30 adapter
- RoomSensor occupancy detection — 120° BLE sensor auto-wakes system, displays real-time environmental data
- Remote management via Yealink Device Management Platform — firmware, configuration, diagnostics without on-site visits
- 2-year warranty — Australian stock, freight delivery
On-Device AI Tracking — IntelliFocus and IntelliFrame
All AI features run on the MCore 4’s dedicated NPU without cloud processing. IntelliFocus automatically detects and frames the active speaker in real-time; Video Fence lets you define active tracking zones to prevent false switches when multiple people move around the room.
Intel Ultra5 125H with Dedicated NPU — Separation of Concerns
The 34-TOPS NPU handles all camera AI tracking tasks, leaving the CPU free for Teams Rooms operation. This separation ensures stable, responsive performance over long deployment cycles without degradation as the system ages.
Complete System — Four Components, One Deployment

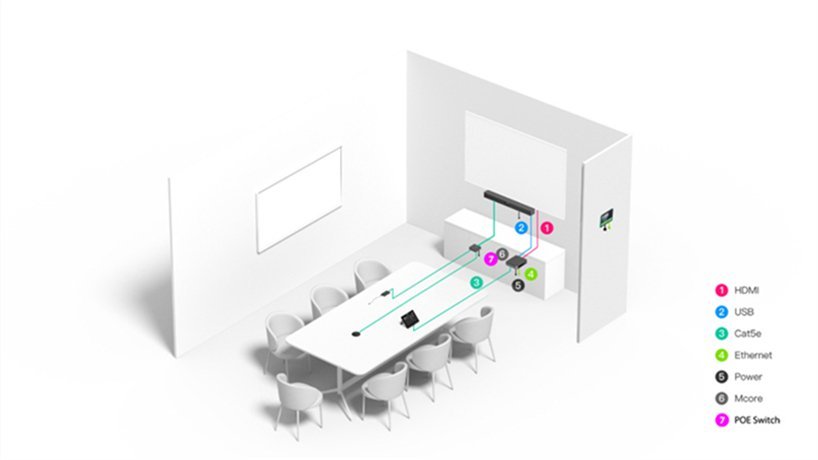

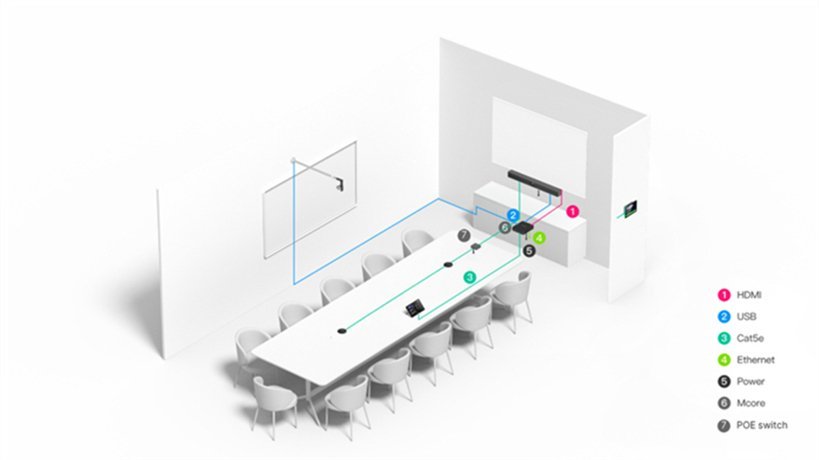

The MVC S40 kit includes everything: MCore 4 mini-PC, SmartVision 40 camera, MTouch Plus 11.6″ touch panel, and RoomSensor. Windows 11 IoT and Teams Rooms arrive preloaded and licensed. A single CAT5e cable connects MCore 4 to MTouch Plus for data and power; RoomSensor pairs via Bluetooth. Minimal cabling, straightforward installation.
6-Meter Voice Pickup with Expandable Audio

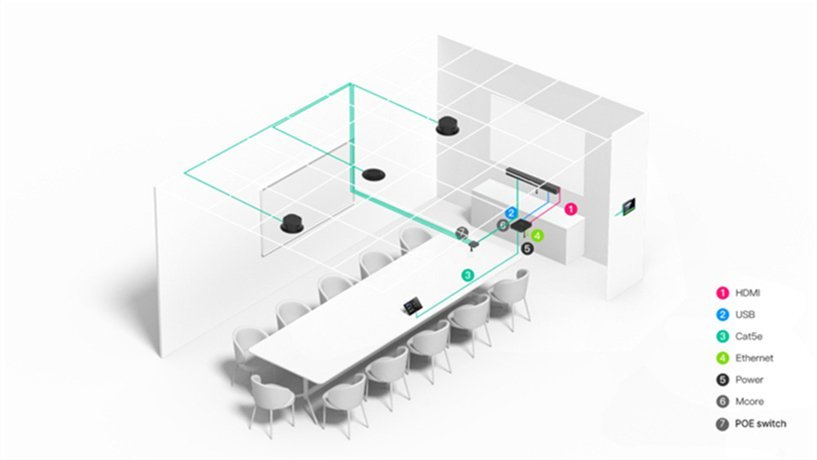

The SmartVision 40’s 8-element MEMS microphone array delivers clear audio across the full small-to-medium room. For larger spaces or challenging acoustics, the system supports up to 2 expansion microphones (VCM35, VCM36, CM20) without replacing the camera — allowing the solution to grow as room layouts change.
MTouch Plus — Single-Cable Control and Environmental Insight
The 11.6″ IPS touch panel connects via one CAT5e cable for both data and power — no separate adapter at the table. It displays upcoming meetings for one-touch join, surfaces camera controls and content sharing options, and shows live RoomSensor data (occupancy, temperature, humidity) for intelligent room management.
Flexible Content Sharing — Wired and Wireless Options
Wired sharing via HDMI and USB-C on the MTouch Plus eliminates setup time for laptop presentations. Optional WPP30 wireless adapter enables 1080p/30fps one-click casting. The MCore 4’s 4K HDMI-In preserves full-resolution auxiliary content — useful when presenting high-resolution graphics or videos.
Remote Management via Yealink Device Management Platform
All MVC S40 components support YDMP for remote firmware updates, configuration changes, diagnostics, and health monitoring. Australian IT teams managing multiple regional offices can push updates and troubleshoot without on-site visits — reducing travel costs and minimizing downtime across the estate.
Things to Consider Before Buying
| Feature | Specification | Why It Matters |
|---|---|---|
| Room Size | Small to medium — 10–20 person conference rooms | Dual 48MP lenses with 120° DFOV provide full room coverage without multiple camera heads |
| Camera | SmartVision 40 — dual 48MP fixed lenses, 120° DFOV | Fixed dual-lens stitching avoids PTZ delays — speakers framed instantly via IntelliFocus |
| AI Tracking | IntelliFocus, IntelliFrame, Video Fence — all on-device | No cloud dependency means instant speaker detection without latency |
| Audio System | 8× MEMS mic array, 6m pickup, stereo speakers, supports 2× expansion mics | Built-in pickup handles most small rooms; expandable if layout changes |
| Processor | Intel Ultra5 125H with NPU (34 TOPS) | Dedicated AI chip runs tracking without impacting Teams Rooms performance |
| Memory / Storage | 16GB DDR5 / 256GB SSD | Smooth multitasking and stable long-term operation |
| Display Outputs | 3 × HDMI + 1 × HDMI-In (4K) | Supports dual displays plus 4K auxiliary input for main screen and confidence monitor |
| Content Sharing | Wired (HDMI/USB-C) + wireless (WPP30, 1080p/30fps) | One-click wireless removes cable clutter; wired option for full resolution presentations |
| Touch Panel | MTouch Plus 11.6″ IPS, single CAT5e (data + power) | One cable keeps desk clean; no separate adapter |
| Occupancy Sensor | RoomSensor — 120° BLE, real-time temp/humidity | Auto-wakes system on room entry; environmental data supports booking accuracy |
| Network | Wi-Fi 6 (802.11ax), Bluetooth 5.2, Gigabit Ethernet | Wi-Fi 6 ensures stable video in busy enterprise wireless environments |
| OS / Software | Windows 11 IoT Enterprise, Teams Rooms app, RoomConnect — preloaded | Ships ready to enrol — no OS licensing to purchase |
| Warranty | 2-year limited hardware warranty | Covers MCore 4, SmartVision 40, MTouch Plus, and RoomSensor |
Warranty & Support
The Yealink MVC S40 is covered by a 2-year limited hardware warranty across all kit components — MCore 4, SmartVision 40, MTouch Plus, and RoomSensor. Australian stock. Freight delivery to metro and regional locations.
Kickstart Computers provides pre-sales consultation, deployment guidance, and post-sales support for MVC S40 installations. Contact us for site assessment, installation referrals, or Yealink Device Management Platform configuration assistance.
