Philips Signage Solutions D-Line Display
Chasing innovation
Amaze your guests with a smarter, faster, signage display. With integrated WiFi and designed for running Android apps, it’s the next evolution in signage solutions.
Chasing innovation
powered by Android
- Available in 32inch right through to 98inches.
- Powered by Android
- 400cd/m²

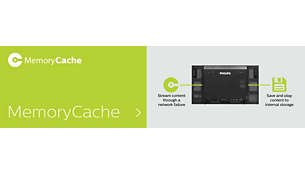

Save and play content with internal memory
Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

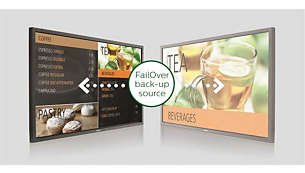

Keep your content up and running with FailOver
Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.
SmartPower for energy saving
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Create and update content with CMND & Create
Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you’ll be able to amaze your customers with compelling content. Available in portrait and landscape mode.

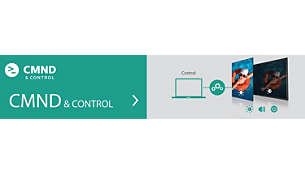

Manage settings of multiple displays with CMND & Control
With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.
Ensure your content is running with automatic screenshots
Content is king, and with the automatic screenshot feauture, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.
Android SoC processor. Native and web apps
Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.
Connect and control your content via the cloud
Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.
Technical Specifications
- Connectivity
Audio output
3.5mm jack
Video input
- Display Port1.2 (x1)
- DVI-I (x 1)
- HDMI 2.0 (x2)
- USB 2.0 (x2)
Audio input
3.5 mm jack
Video output
- DisplayPort 1.2 (x1)
- HDMI 2.0 (x1)
External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
WiFi
dual antenna 2,4Ghz and 5Ghz
- Picture/Display
Aspect ratio
16:9
Panel resolution
1920x1080p
Pixel pitch
0.36375 (H) x 0.36375 (V) mm
Optimum resolution
1920 x 1080 @ 60Hz
Brightness
400 cd/m²
Display colors
16.7 million
Contrast ratio (typical)
1200:1
Dynamic contrast ratio
500,000:1
Response time (typical)
8 ms
Viewing angle (horizontal)
178 degree
Viewing angle (vertical)
178 degree
Picture enhancement
- 3/2 – 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- 3D MA deinterlacing
- Dynamic contrast enhancement
- Progressive scan
Panel technology
IPS
Operating system
Android 8.0
Philips Signage Solutions D-Line Display – ADS Technology
Smart and modular for an even longer lifetime
Philips D-Line is designed to engage your audience and delight customers. Powered by Android 11 for easy software integrations, this versatile display is suitable for impact in any setting.
Smart and modular for an even longer lifetime
powered by Android
- Powered by Android
- 500cd/m²
Save and play content with internal memory
Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.
ADS wide-view panel display
Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180 degree viewing.
4G/LTE optional module for reliable connection
Select our optional 4G/LTE module for more predictable bandwidth and faster download speeds, providing you with a reliable backup connection in case of 24/4 work requirements or where local network connections are not possible.
Technical Specifications
- Connectivity
Audio output
3.5mm jack
Video input
- DVI-I (x 1)
- DisplayPort 1.4 (x1)
- HDMI 2.0 (x2)
- USB 3.0 (x2)
- VGA (via DVI)
Audio input
3.5 mm jack
Other connections
- 4G/LTE antenna connectors
- Micro USB (x1) (OTG)
- USB 2.0 (x1)
Video output
DisplayPort 1.4 (x1)
External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
WiFi
WiFi 6 + Bluetooth 5.2 (slide-in module)
- Picture/Display
Aspect ratio
16:9
Panel resolution
3840 x 2160
Pixel pitch
0.56 (H) x 0.56 (V) [mm]
Optimum resolution
3840 x 2160 @ 60 Hz
Brightness
500 cd/m²
Display colors
1.07 Billion
Contrast ratio (typical)
1200:1
Dynamic contrast ratio
500,000:1
Response time (typical)
8 ms
Viewing angle (horizontal)
178 degree
Viewing angle (vertical)
178 degree
Picture enhancement
- 3/2 – 2/2 motion pull down
- Motion compens. deinterlacing
- Dynamic contrast enhancement
- Progressive scan
Panel technology
ADS
Operating system
Android 11
Haze
28%
- Convenience
Placement
- Landscape (24/7)
- Portrait (24/7)
Tiled Matrix
Up to 10 x 15
Screen saving functions
Pixel Shift
Keyboard control
- Hidden
- Lockable
Signal loop through
- IR Loopthrough
- DisplayPort
- RS232
Energy saving functions
Smart Power
Network controllable
- RS232
- External 4G mPCIe slot
- RJ45
- WiFi
WiFi protocol
a b g n, 802.11 ax, 802.11 ac
- Sound
Built-in speakers
2 x 10W RMS
- Power
Mains power
100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical)
TBD W
Consumption (Max)
TBD
Standby power consumption
<0.5 W
Energy Label Class
G
- Supported Display Resolution
Computer formats
- 1920 x 1080, 60Hz
- 1280 x 1024, 60Hz
- 1024 x 768, 60Hz
- 1280 x 720, 60Hz
- 1440 x 900, 60 Hz
- 1600 x 900, 60Hz
- 1680 x 1050, 60Hz
- 3840 x 2160, 30, 60Hz
- 640 x 480, 60Hz
- 800 x 600, 60Hz
Video formats
- 1080p, 50, 60Hz
- 1080i, 50, 60Hz
- 480i, 60Hz
- 480p, 60Hz
- 576i, 50Hz
- 576p, 50Hz
- 720p, 50,60 Hz
- 2160p, 50, 60Hz
Altitude
0 ~ 3000 m
Temperature range (operation)
0 ~ 40 °C
MTBF
50,000 hour(s)
Temperature range (storage)
-20 ~ 60 °C
Humidity range (operation)[RH]
20 – 80% RH (No condensation)
Humidity range (storage) [RH]
5 – 95% RH (No condensation)
- Multimedia Applications
USB Playback Video
- MPEG
- H.263
- H.264
- H.265
- AVI
- MP4
- MPEG4
- VP8
- VP9
- WEBM
USB Playback Picture
- BMP
- JPEG
- PNG
USB Playback Audio
- AAC
- HEAAC
- MPEG
- Internal Player
CPU
2x A72 + 4x A53
GPU
ARM Mali-T860 MP4
Memory
4GB RAM
Storage
32 GB eMMc
- Accessories
Included Accessories
- RS232 daisy-chain cable
- Philips logo (x1)
- AC Switch Cover
- USB Cover (x1)
- Screws
- AC Power Cord
- IR sensor cable (1.8 m) (x1)
- Quick start guide
- Remote control & AAA batteries
- RS232 cable
- WiFi module
- Wire Clamper (x3)
- Miscellaneous
On-Screen Display Languages
- English
- French
- German
- Spanish
- Polish
- Turkish
- Russian
- Italian
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
- Danish
- Dutch
- Finnish
- Norwegian
- Portuguese
- Swedish
Warranty
3 year warranty
Regulatory approvals
- CE
- RoHS
- CB
- CCC
- EMF
- FCC, Class A
- UL
