• QB98T-B- 4K UHD Slim Professional Display for Business
• • UHD display that engages customers with lifelike images through innovative and unique picture-enhancing features.
  • Dynamic Crystal Color with Quantum Processor 4K for incredible picture quality.
  • Slim and symmetrical design allowing for seamless environment.
  • Powerful All-in-one Digital Signage Solution.
  • Cisco Certified Display.

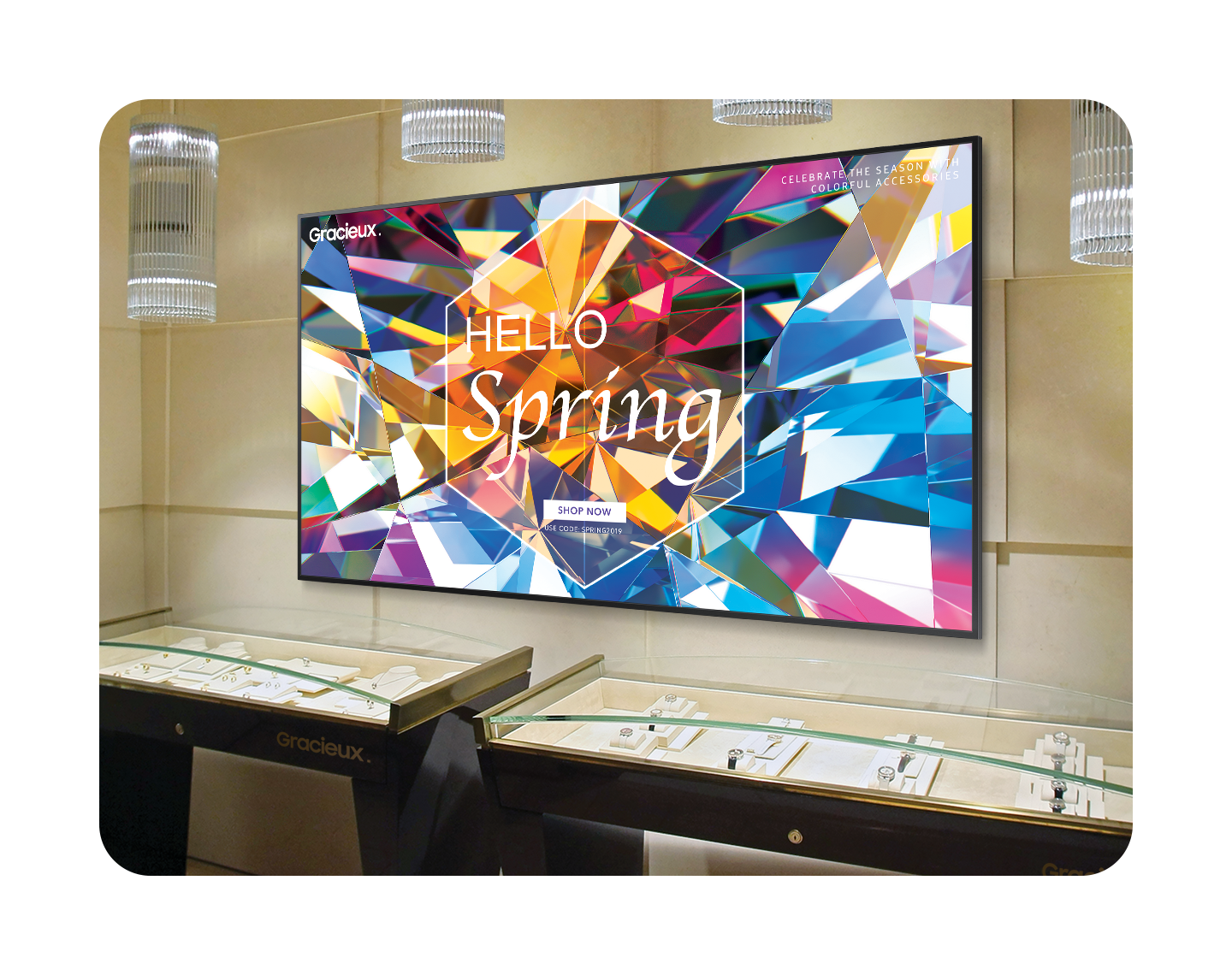

Time to upscale your display

Samsung’s new QBT-B series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

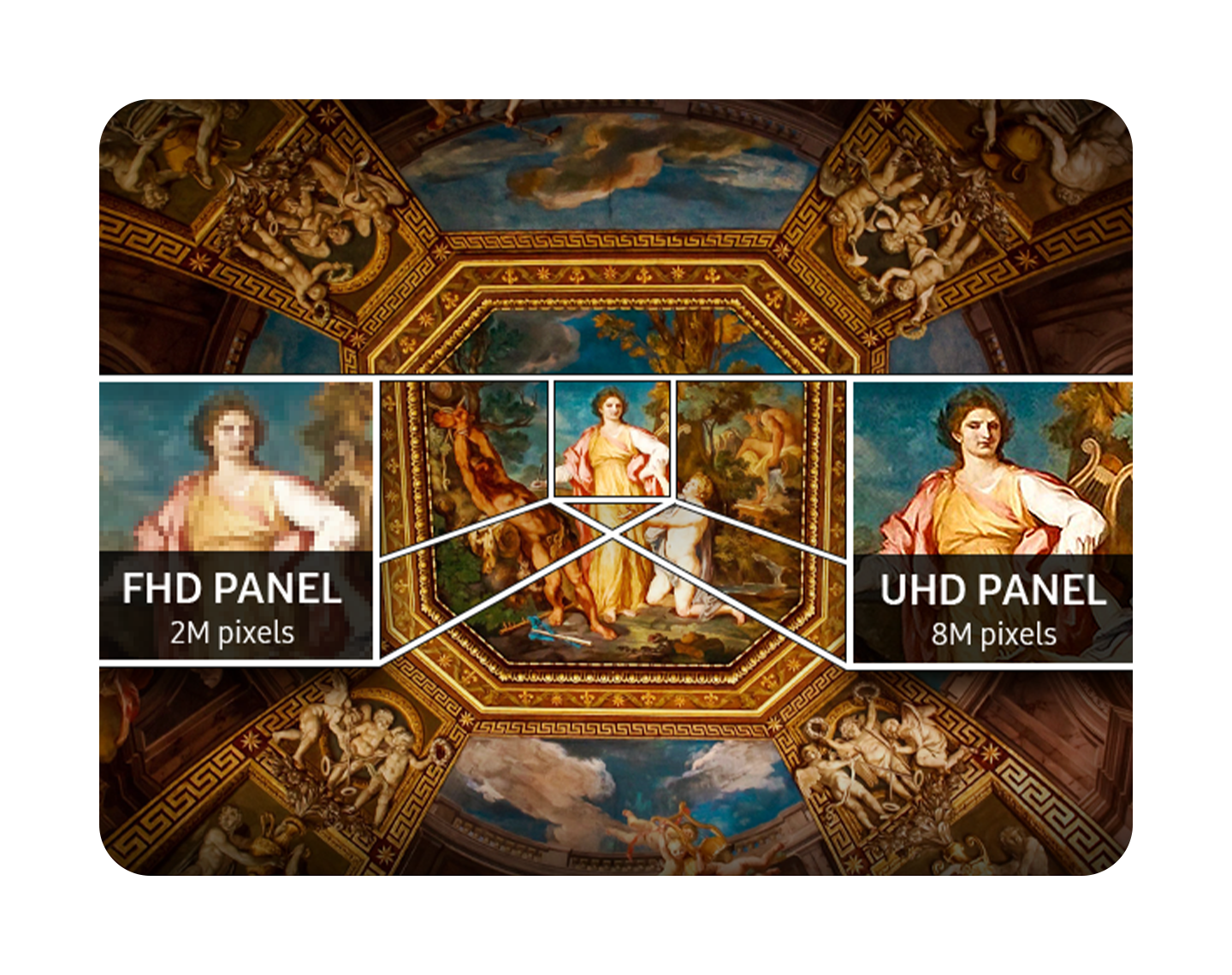

Incredible 4K picture quality

Empower your customers to experience pure visual innovation with lifelike images in sharper picture quality than ever before.

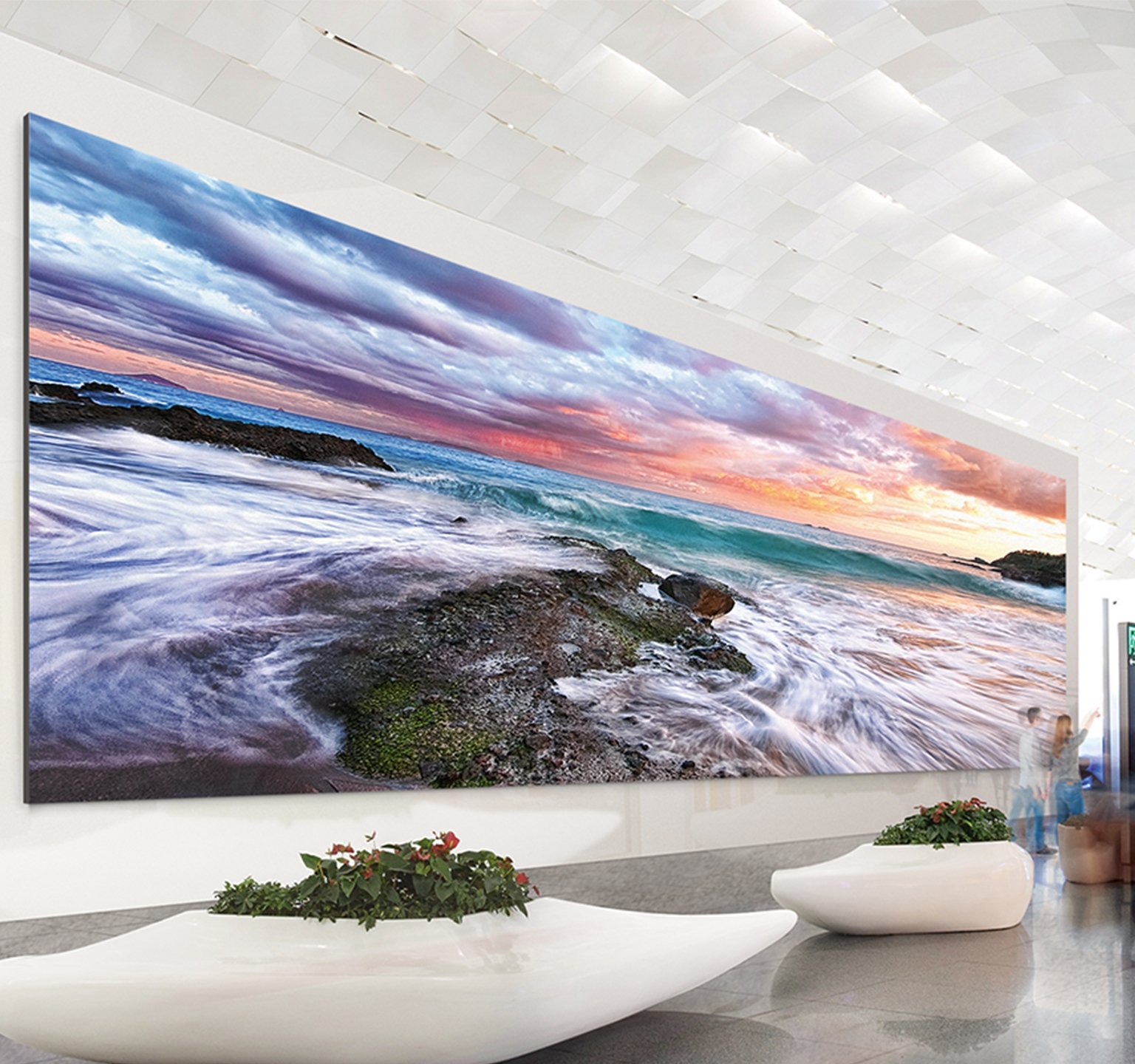

Intelligent UHD upscaling
Crystal Processor 4K

QBT-B’s UHD upscaling feature is made possible by Samsung’s Crystal Processor 4K. This innovative technology allows the display to play lower resolution content at UHD-level quality while also improving the visibility of on-screen text and images.

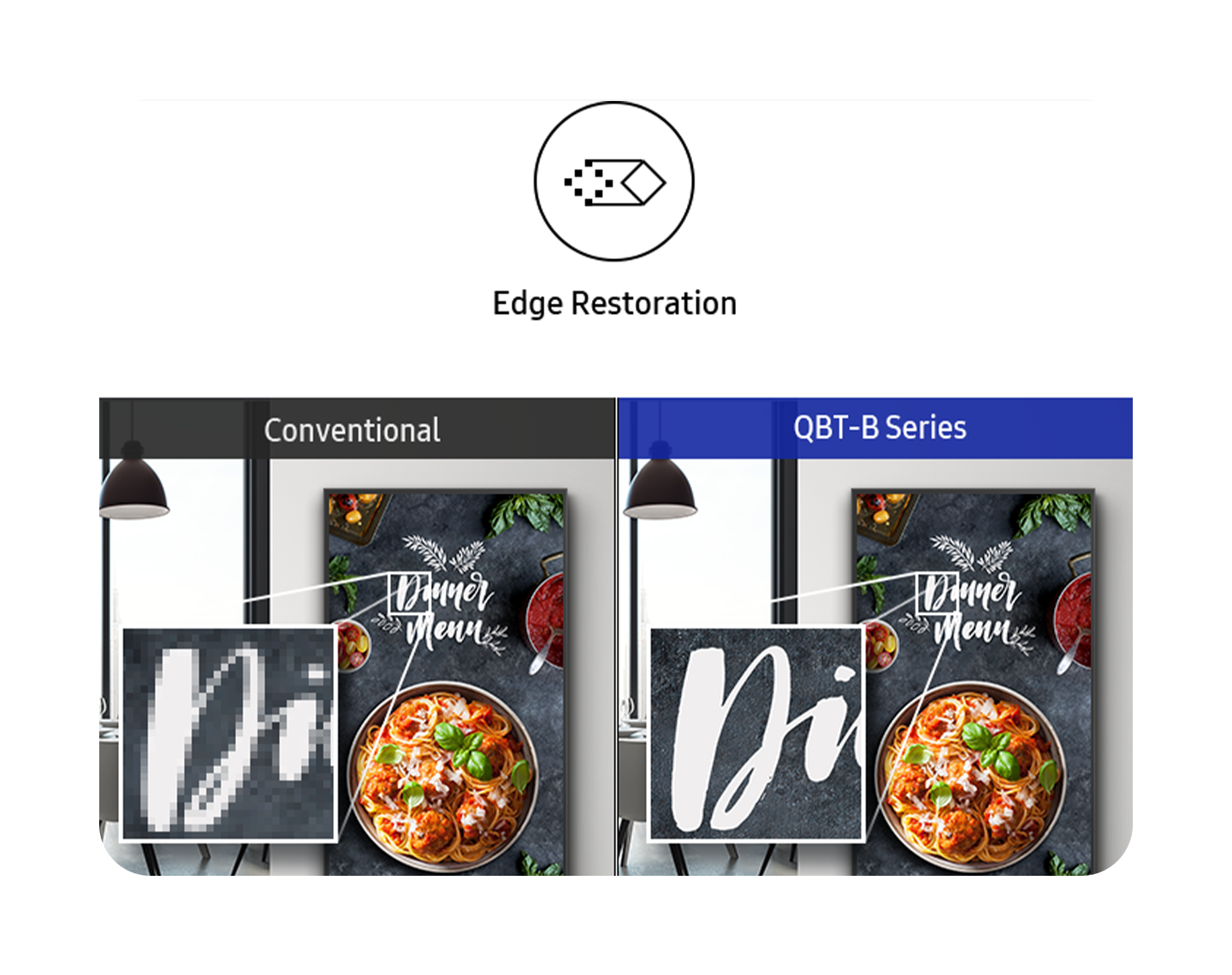

Marvel at the lifelike Color expression

Dynamic Crystal Display

Immerse your customers in every picture with a wider range of color. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

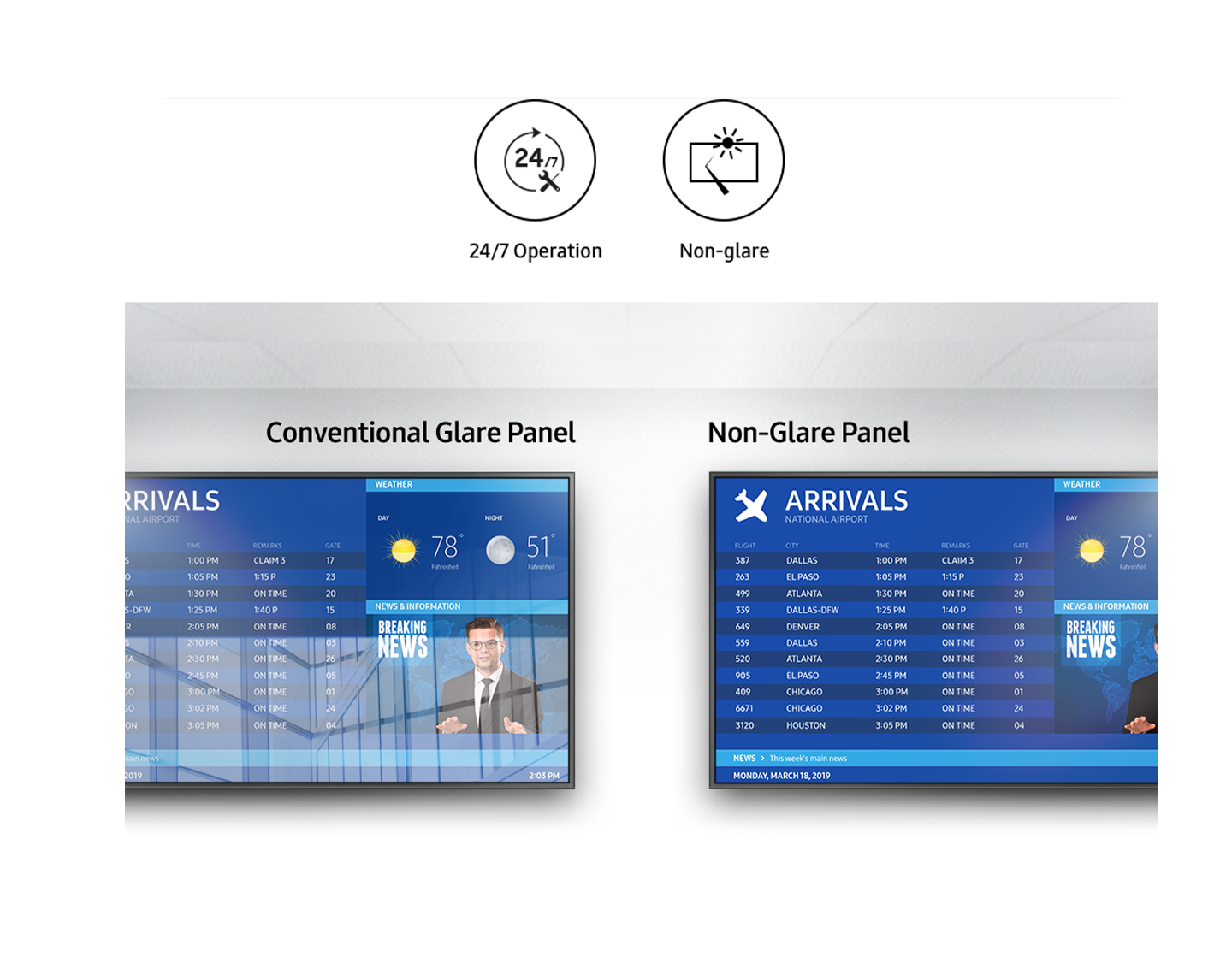

Perfect view with non-glare display

The QBT-B series features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.

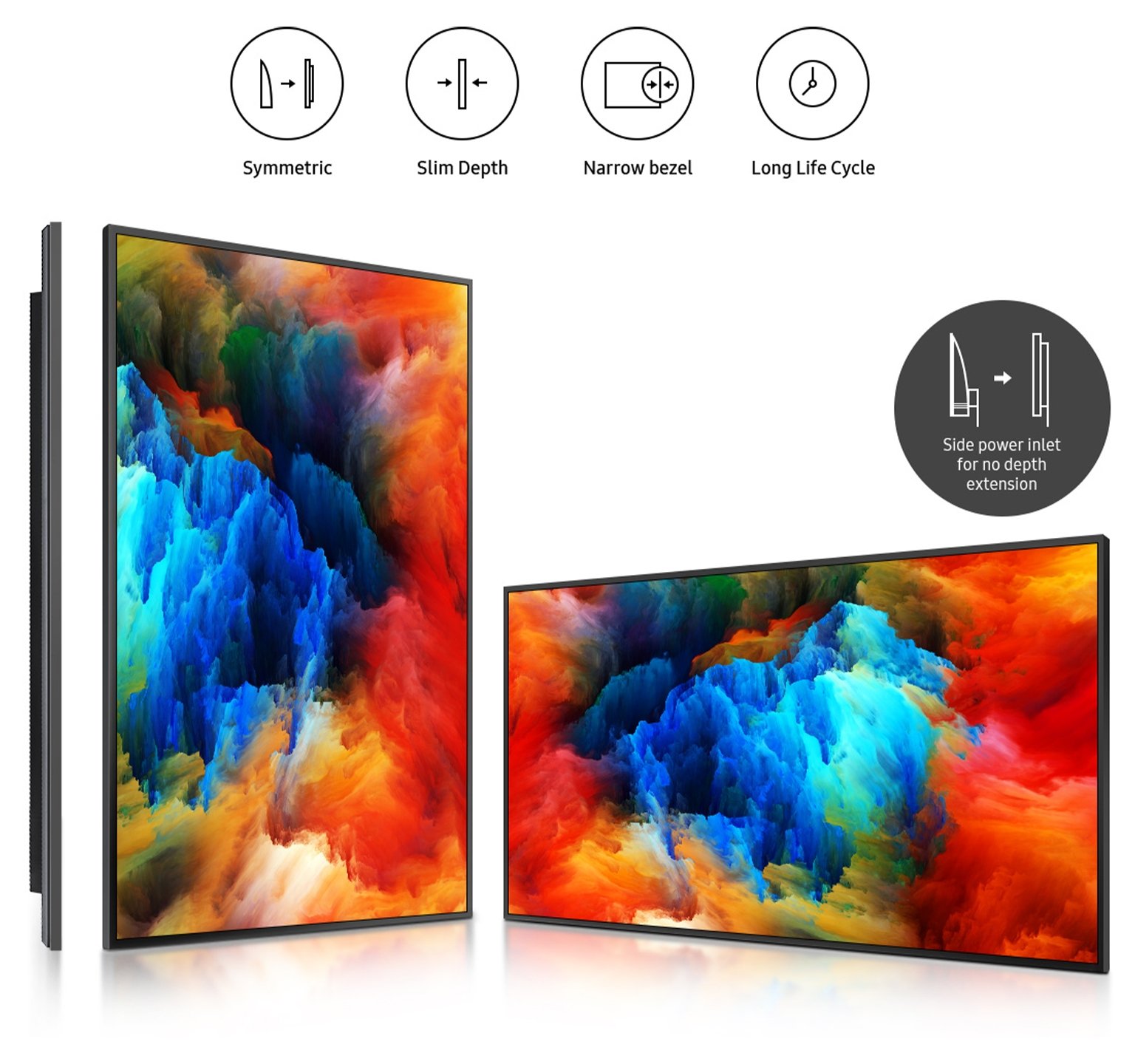

Slim and symmetrical

Design Slim, symmetrical design that will stand the test of time and ensure the QBT-B series blends seamlessly into any environment, with simple installation to get your display up and running as soon as possible.

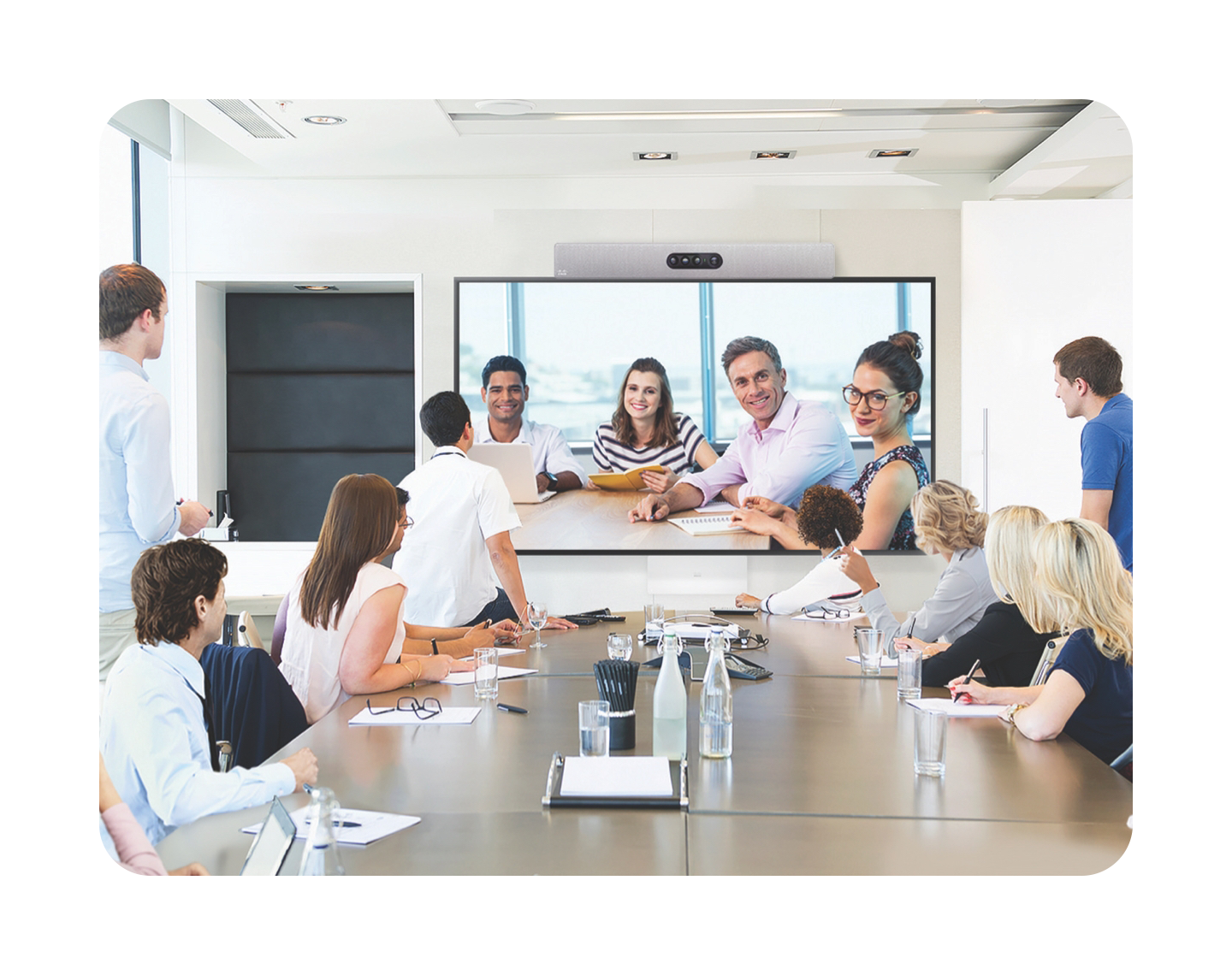

Cisco Certified Webex Certified

The QBT-B Series is fully compatible with Cisco WebEx^® Room Kit products. The Cisco WebEx Room Kit is a powerful video collaboration tool that integrates a camera, codec, speakers and microphones into a single device. Combined with Samsung’s QBT-Bdisplays, you get a powerful conferencing solution for your business.

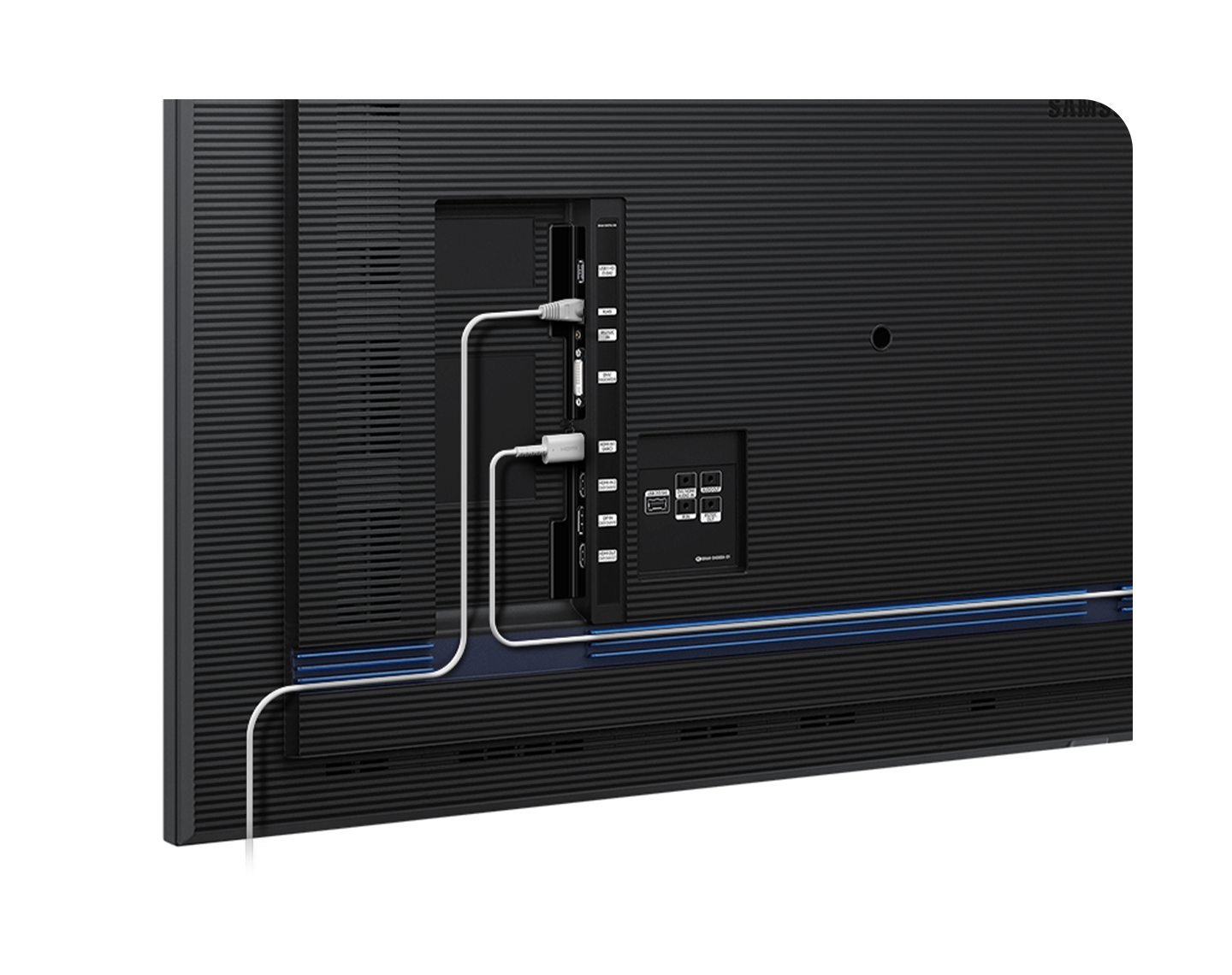

Clean cable management

With QBT-B’s new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping experience for customers, even when the back of the display is visible.

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Specifications

98″

Screen Size

3,840×2,160 (4K UHD)

Resolution

350nit

Brightness

24/7

Operation Hours

Non Glare Panel

Panel Technology

Yes

Cisco Certified

Hide All Specs

• Series Name

Series Name

QBT-B Series 98″

• Design

Screen Size

98″

Panel Technology

Non Glare Panel

Resolution

3,840×2,160 (4K UHD)

Brightness

350nit

Contrast Ratio (Typical)

1200:1

Viewing Angle (H/V)

178/178

Response Time

8ms(Typ.)

Operation Hours

24/7

Color Gamut

72%

Haze

25%

H-Scanning Frequency

30 ~ 81kHZ

Maximum Pixel Frequency

594MHz

V-Scanning Frequency

48 ~ 75HZ

Pixel Pitch (mm)

0.562 x 0.562 (mm)

Active Display Area (mm)

2158.848(H) x 1214.352(V)

Display Colors

16.7M(True Display)
1.07B(Ditherd 10bit)

Measured

97.5″

General Feature

Direct LED BLU

Dynamic C/R

Mega

• Connectivity

Input

RGB: DVI-D, Display Port 1.2 (1)
Video: HDMI 2.0 (2)
HDCP: HDCP2.2
Audio: Stereo mini Jack, DVI, HDMI
USB: USB 2.0 x 2

Output

RGB: HDMI 2.0 (Loop-out)
Video: N/A
Audio: Stereo mini Jack
Power Out: N/A
USB: N/A

External Control

RS232C(in/out) thru stereo jack, RJ45

Sensor

IR

• Power

Power Supply

AC 100 – 240 V, 50/60 Hz

Power Consumption (Typical/Max)

Max: 462
Typical: 360
Rating: 420
BTU(Max): 1,576.4
Sleep Mode: 0.5

General Feature

Internal

• Environmental Conditions

Operating Temperature

0℃~ 40℃

Operating Humidity

10~80%

• Features

Key

UHD Signage Display
Slim & Light Signage with
Built-in MagicInfo S6, SSSP 6.0

Special

H/W:
Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA),
Wi-Fi

S/W:
Auto Source Switching & Recovery,
LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Cisco Certified

Yes

Orientation

Landscape / Portrait

• Internal Player

Processor

Cortex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory

L1 Instruction Cache: 48KB
L1 Data Cache: 32KB
L2 Cache: 2MB

Clock Speed

1.7GHz

Main Memory Interface

2.5GB
LPDDR4 1.5GHz 64bit

Graphics

Graphic resolution:
1920×1080

Output resolution:
3840×2160 (Scale up from graphic processing result.)

Storage

8GB
(3.88GB Occupied by O/S, 4.12GB Available)

Multimedia

Video Decoder:
MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9

Audio Decoder:
AC3 (DD), MPEG

IO Ports

USB 2.0

Operating System

Tizen 4.0 (VDLinux)

• Dimensions

Without Stand (W x H x D)

2195.8 x 1250.8 x 96.5

Packaging (W x H x D)

2369 x 1405 x 350

Bezel Width

17.9

• Weight

Product Weight

83kg

Package Weight

106kg

• Accessories

Included in Box

Quick Setup Guide, Warranty Card,
Power Cord, Remote Controller, Batteries

Optional Wall Mount Kit

WMN8200SG (Land Only)

• Green Management

Packaging Recyclability

800 x 400

• Mechanical Specs

VESA Mount

800 x 400

• Certification and Compliance

EMC

Class A

Safety

60950-1

Security

802.1x(WPA2 Enterprise)
: EAP-TLS, EAP-TTLS, EAP-PEAP

• Sound

Speaker Type

Built in Speaker(10W + 10W)
