ViewSonic CDE5014-2C 50″ 4K Commercial Digital Signage Display | Networked Signage Solution

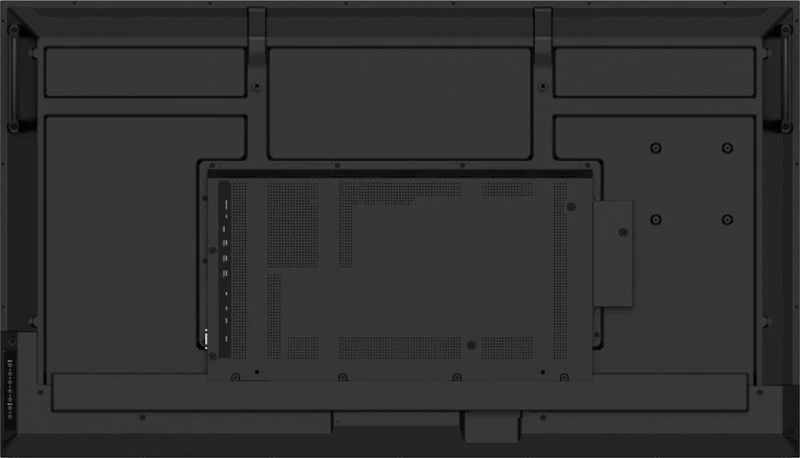

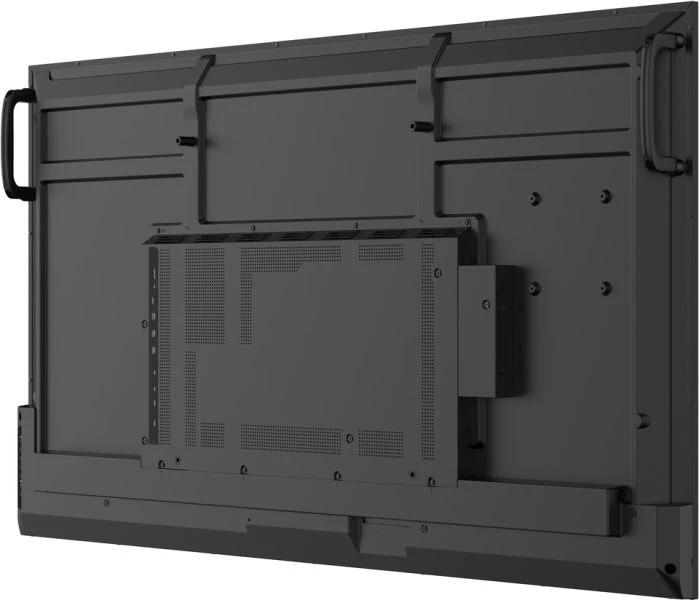

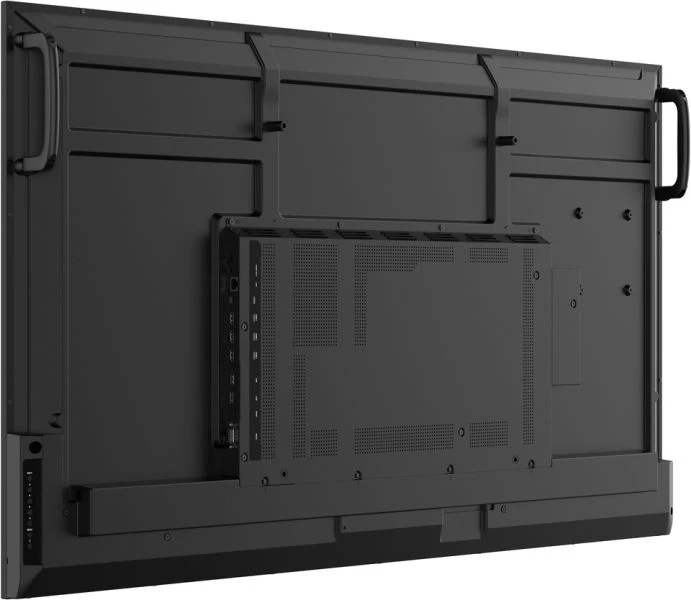

Installation readiness for commercial signage starts with mounting flexibility and electrical simplicity. The CDE5014-2C mounts via standard VESA 400×400mm bracket, accepts 100–240 VAC input, and draws 57W under typical signage operation — making it straightforward to integrate into existing display infrastructure without dedicated power conditioning. The 62mm depth and 9.9mm bezels fit standard retail and hospitality mounting profiles, and the 50,000-hour rated backlight supports continuous operation across multiple years of daily cycling.

Stable Multi-Stream Processing for Concurrent Playback

The quad-core processor and 4GB RAM handle scheduled content alongside real-time management system connectivity without performance degradation. Venues running simultaneous advertising feeds, pricing updates, and wayfinding content benefit from assured playback reliability without interruption or content stuttering.

Key Features

• Fast Boot Readiness: Rapid warm startup minimises blank screen intervals during scheduled content transitions or recovery from network issues — operationally important in high-traffic environments where display downtime affects customer perception.
• Multitasking and Signage Performance: The quad-core ARM processor and 4GB DDR4 RAM handle concurrent content streams and scheduled playback without degradation, enabling reliable operation in venues requiring simultaneous signage feeds and management system connectivity.
• Dual Orientation Support: Portrait and landscape capability allows single-model deployment across different venue types — retail menu boards, lobby directories, and wayfinding panels — without SKU complexity or storage variation.
• 4K Native Resolution: 3840×2160 resolution at 16:9 aspect delivers visual clarity for text-heavy signage and detailed promotional content without perceptible pixelation on 50-inch screens viewed from retail and hospitality distances.
• Commercial-Grade Durability: 3H hardness anti-glare surface, 5000:1 contrast ratio, and 500 nits brightness ensure legible content in mixed ambient light — typical in retail floors, transport hubs, and healthcare waiting areas where direct sunlight or fluorescent fixtures vary throughout the day.
• Scheduled USB Media Playback: Native USB storage support with scheduling capability eliminates dependency on continuous network streams for venue-specific content, reducing bandwidth load and enabling offline-first deployments in distributed multi-location networks.
• Signal Failover Continuity: Automated fallback between input sources and network connectivity ensures content remains on screen during primary signal loss — critical for mission-scheduled signage where content gaps directly impact customer messaging and operational consistency.
• Single-Cable Connectivity: USB-C with integrated DisplayPort 1.2, USB 2.0, Ethernet sharing, and 15W Power Delivery consolidates signal, data, and power delivery through one cable — reducing rear-panel complexity and simplifying integrator installation on confined mounting surfaces.

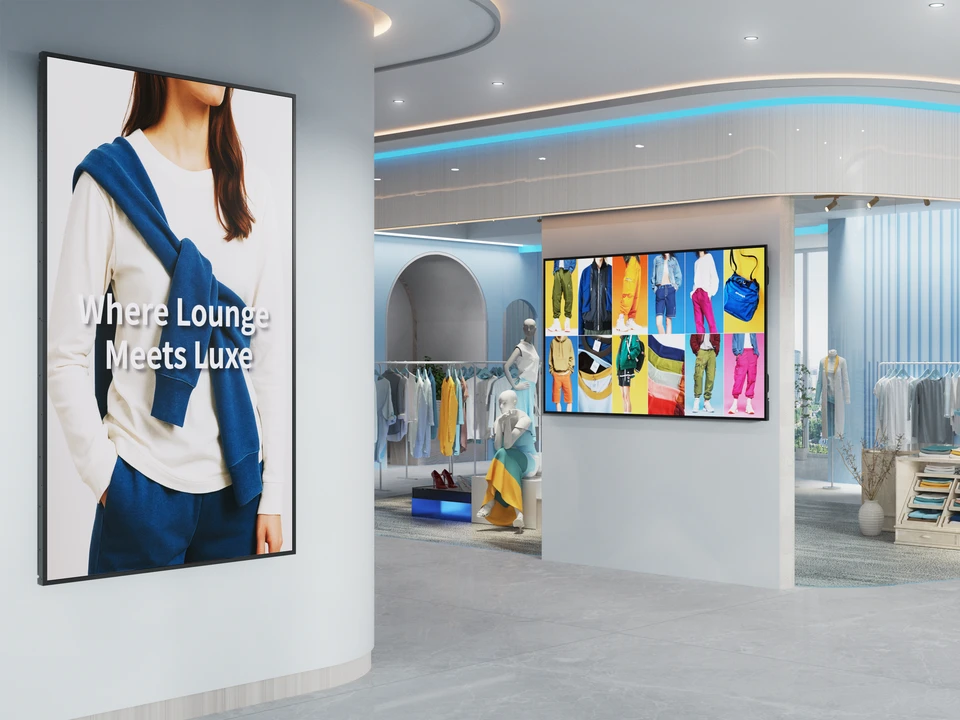

Orientation Flexibility Across Venue Layouts

Portrait and landscape modes support diverse signage applications — menu boards, directories, promotional stands, and wayfinding panels — from a single model specification. Integrators can deploy consistent hardware across multiple venue types without maintaining separate SKUs or inventory complexity.

Commercial Durability in Mixed Ambient Light

500 nits brightness and 5000:1 contrast ratio maintain legibility under retail fluorescent lighting, direct sunlight through storefronts, and variable hospitality ambient conditions. Anti-glare surface treatment reduces reflection without compromising colour accuracy or content contrast.

Offline Content Playback via Scheduled USB

Direct USB media support with scheduling capability reduces dependency on continuous network connectivity for venue-specific signage. Distributed locations can operate on-brand content without bandwidth constraints, improving deployment resilience in areas with unreliable internet infrastructure.

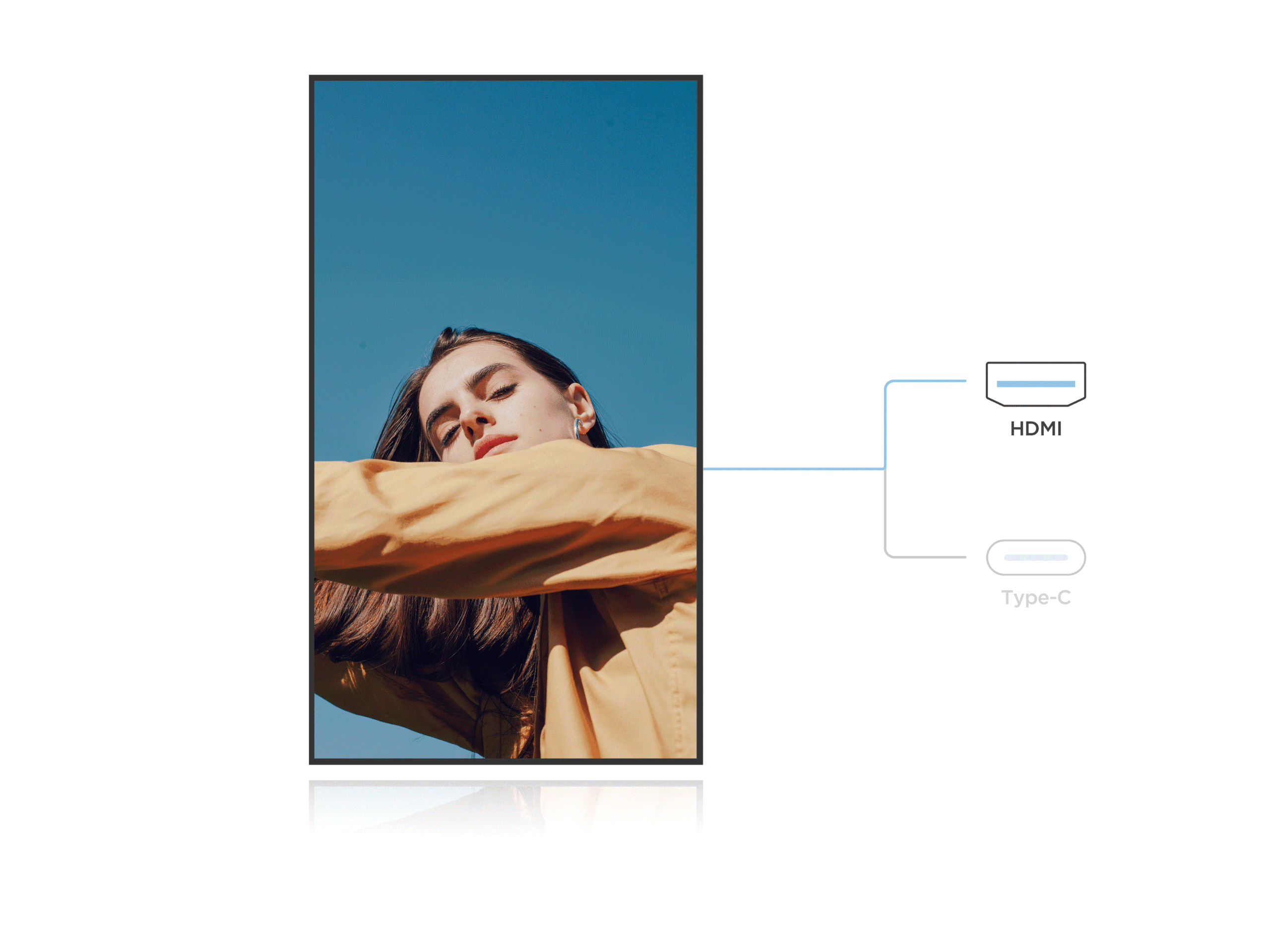

Automatic Input Switching for Uninterrupted Display

Built-in failover between HDMI, USB-C, and network sources keeps content on screen when primary connectivity drops. For high-traffic customer-facing installations, this redundancy eliminates the operational disruption and revenue impact of signage downtime.

Consolidated Power and Signal via USB-C

Single USB-C delivery of DisplayPort video, USB data, Ethernet, and 15W power simplifies rear-panel wiring and reduces cable clutter in confined mounting installations. Integrators spend less time managing multiple connectors and more time on deployment efficiency.

Specifications

Connectivity

• HDMI Inputs: Three HDMI 2.1 ports supporting 4K@60Hz each; HDMI 3 includes Audio Return Channel (ARC) for simplified audio routing from external devices.
• USB Type-C: One port with integrated DisplayPort 1.2, USB 2.0, 15W Power Delivery, and Ethernet sharing — enables single-cable deployment for laptops and media servers while powering peripheral devices.
• USB Type-A: Two USB 2.0 ports for scheduled media playback from external drives and peripheral connectivity.
• Network: RJ45 Gigabit Ethernet (10/100M) for device management, remote scheduling, and firmware updates across distributed signage networks.
• WiFi: Integrated WiFi slot for wireless casting via AirSync and mobile device integration without additional USB adapters.
• Audio Output: 3.5mm stereo jack and S/PDIF coaxial output for external amplification or AV receiver integration in multi-zone deployments.
• Control: One RS-232 port for legacy AV control system integration and device automation within larger venue management platforms.

Warranty

This ViewSonic display is covered by a 3-year replacement warranty. In the event of a verified hardware fault, ViewSonic will replace the unit, supporting reliable operation across commercial and signage deployments. Contact Kickstart Computers for warranty claims and support.
