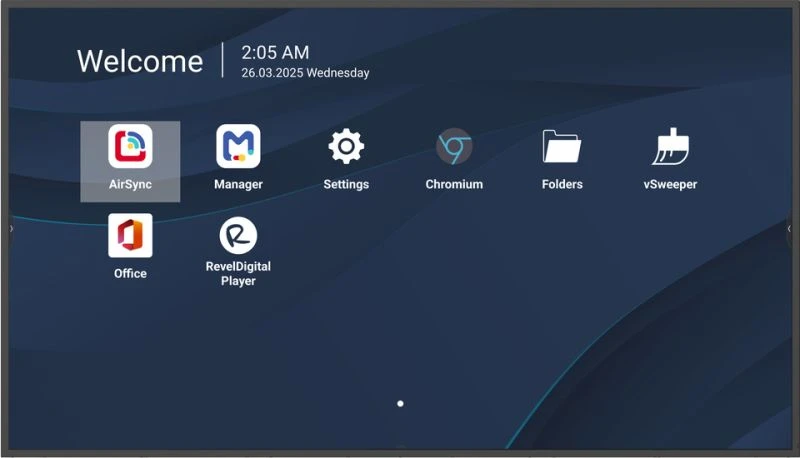

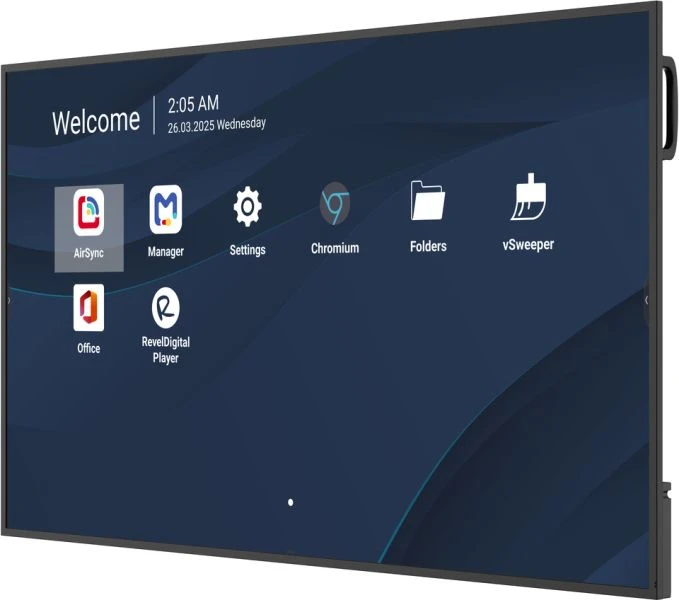

ViewSonic CDE6514-2C 65″ 4K Digital Signage Display | Commercial Networked Signage

Retail floors, transport terminals, and corporate lobbies operate under variable ambient light—from bright natural windows to artificial fluorescent overhead systems. This commercial signage display addresses that core visibility challenge head-on. At 500 nits with 1500:1 contrast and a hardened 3H anti-glare coating (25% haze), the CDE6514-2C stays legible and vibrant whether sunlight floods the storefront or interior lighting dominates. The native 4K panel ensures promotional graphics, wayfinding, and live data streams render with clarity that rewards attention, not just presence.

Quad-core processor handles concurrent playback and scheduling

Retail and transport signage often require simultaneous content streams—local USB playlists running while network feeds update in background, or scheduled programming overlaid with real-time flight or menu data. This processor architecture keeps multitasking responsive without frame drops or scheduling conflicts.

Key Features

• 500 nits brightness with anti-glare treatment: Visibility is non-negotiable in public-facing environments. This brightness level and haze-treated surface mean content remains readable in daylight and mixed indoor lighting without washout or excessive reflections that distract from the message.
• Instant warm boot and reliable multitasking: Commercial deployments demand displays that start reliably and stay responsive during full-day operation. The quad-core processor and 4GB RAM handle concurrent content scheduling, network updates, and input switching without stuttering.
• Portrait and landscape orientation: Room layouts vary—kiosks, menu boards, and lobby installations may require either orientation. This display rotates between both, eliminating the need for separate hardware SKUs across diverse deployment locations.
• Native 4K resolution: Detailed product imagery, real-time data visualisations, and high-resolution promotional content display without compression artifacts. Fine detail reads clearly from distance, reinforcing professional brand presence.
• 24/7 operation and 50,000-hour backlight life: Signage networks run continuously. This display is rated for always-on deployments, and the extended backlight lifespan reduces replacement cycles and total cost of ownership in large installations.
• Scheduled USB media playback and signal failover: Content reliability is operational. USB scheduling ensures playlists run without network dependency, while dual-signal failover keeps displays active if primary feeds drop—critical in retail and transport hubs where downtime is visible.
• Wireless presentation via myViewBoard Cast: Emergency announcements, live updates, and occasional presentations can be pushed to signage networks wirelessly. Staff or management can override scheduled content without physical USB swaps.
• Single USB-C cable for power and connectivity: Installation simplification reduces cabling clutter behind mounted displays. One cable carries video, audio, power, and network—important where cable runs are constrained or aesthetics demand minimal visible infrastructure.

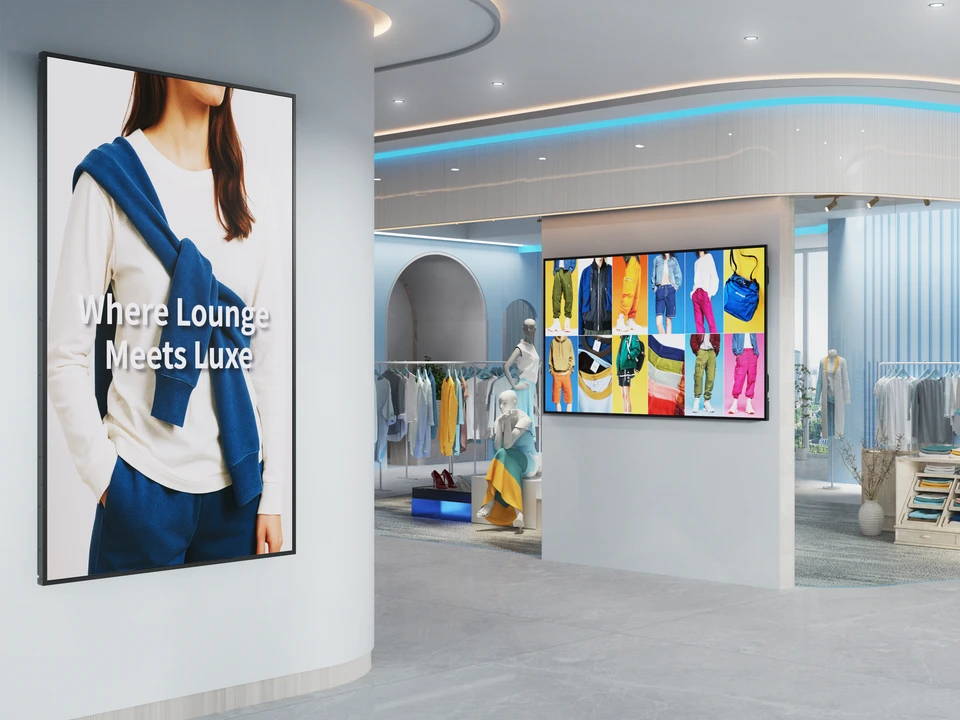

Rotate between portrait and landscape without hardware swap

Installation flexibility reduces SKU complexity across multi-location deployments. Menu boards, directory signs, and kiosk displays may demand portrait orientation, while advertising and wayfinding favour landscape. This display adapts to room layout without requiring separate models or new specification approvals.

Engineered for round-the-clock signage operation

Commercial displays run 16–24 hours daily. The CDE6514-2C is rated for continuous 24/7 duty and carries a 50,000-hour backlight warranty—meaning refresh cycles stretch across 5+ years in typical signage networks, substantially reducing replacement frequency and supporting lower total-cost-of-ownership projections.

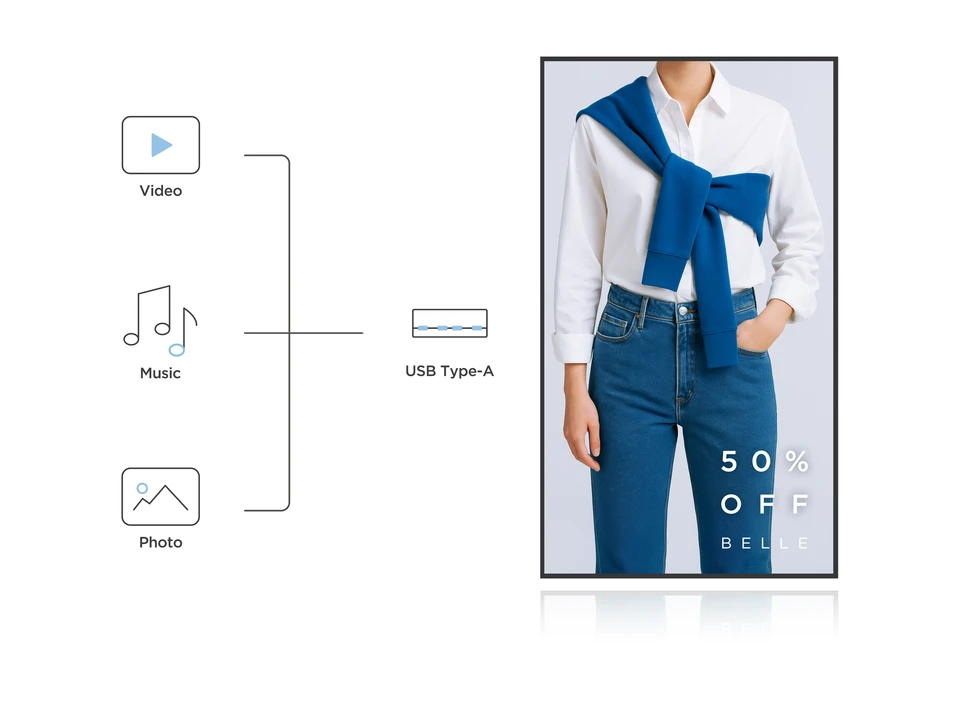

USB scheduling and dual-feed failover prevent content loss

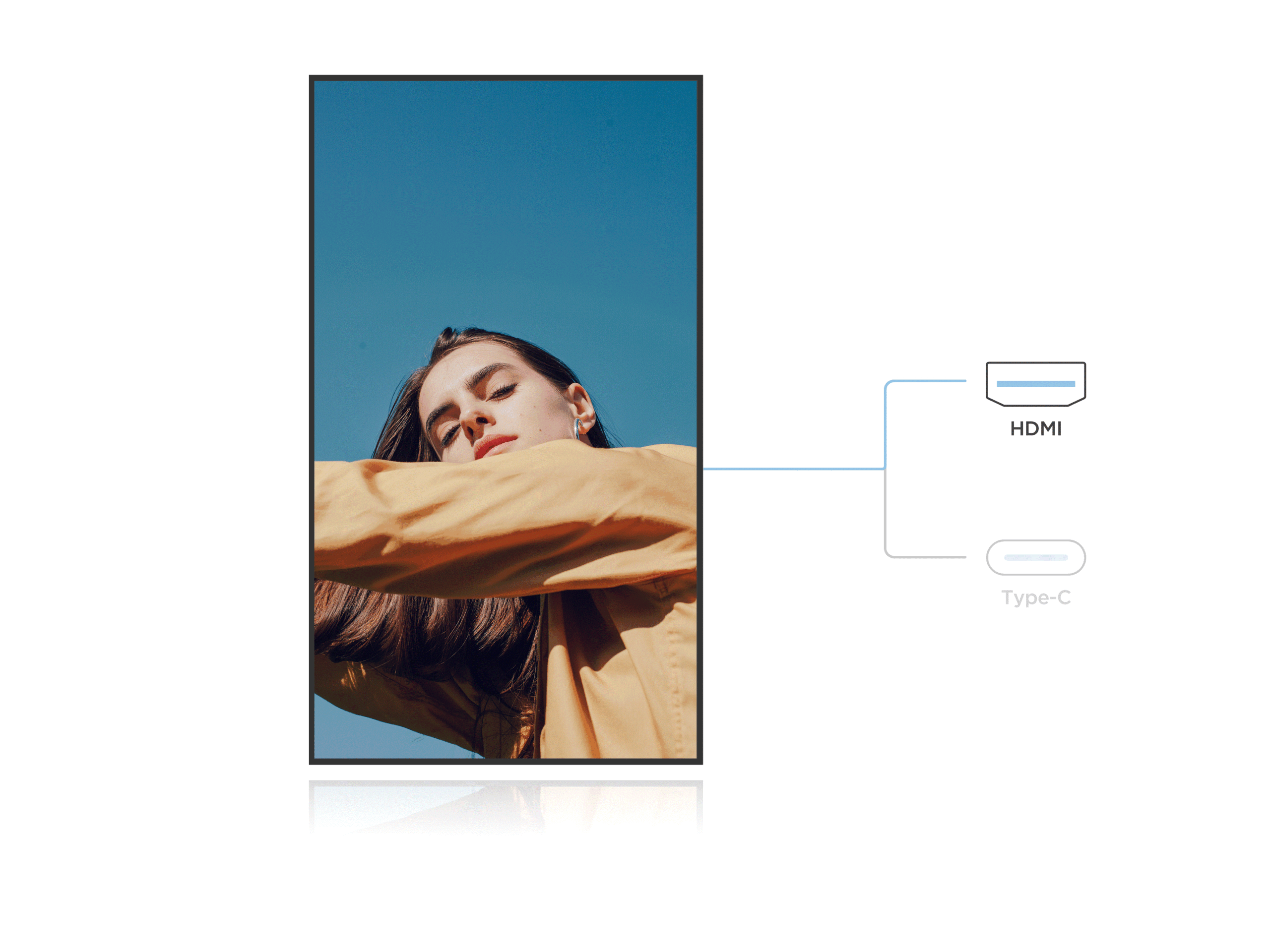

Network interruptions shouldn’t blank signage. This display can run pre-loaded USB playlists independently of network connectivity, while dual-input failover automatically switches to secondary feeds if primary signals drop—keeping displays active through infrastructure hiccups that might otherwise interrupt retail or transport operations.

Wireless push overrides scheduled content without physical access

Emergency notifications, last-minute promotions, or service announcements can be sent to displays across a network via myViewBoard Cast without requiring IT access to each location. Staff at head office or district managers can interrupt playlists remotely, accelerating response to urgent operational or marketing needs.

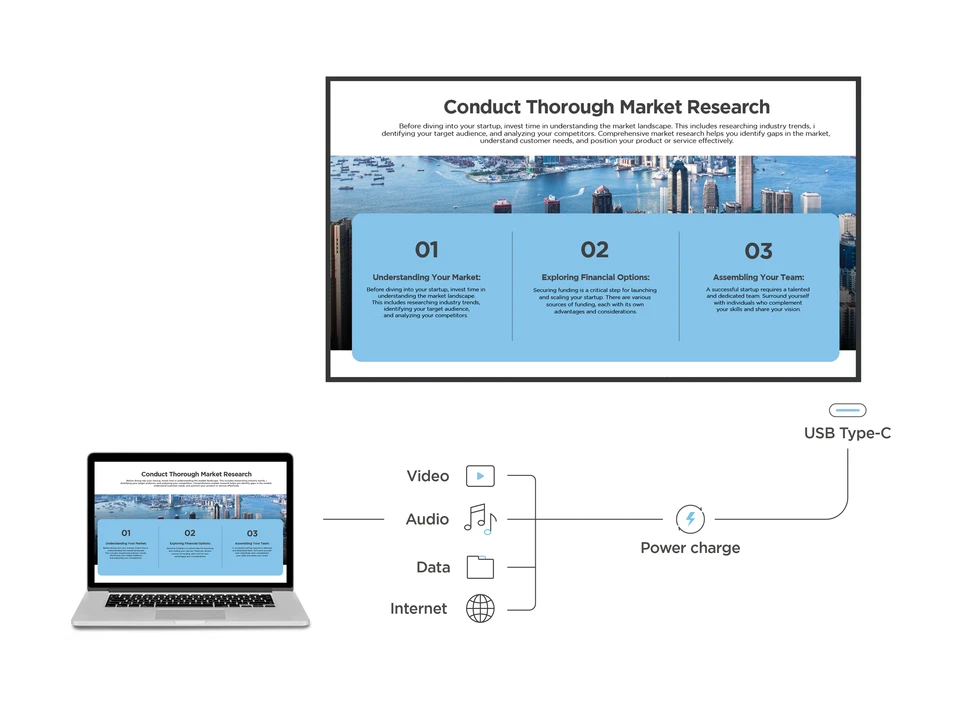

Single USB-C cable reduces infrastructure complexity

One cable carries video, power, and network—eliminating separate runs and simplifying cable management behind mounted displays. Installation labour decreases, and hidden cabling becomes tidier, supporting professional aesthetic in customer-facing environments where visible infrastructure detracts from brand presence.

Specifications

Connectivity

• Video Input: 3 × HDMI 2.1 ports support 4K@60Hz across all inputs; HDMI 3 includes ARC for audio return to external systems.
• USB: 1 × USB-C with DisplayPort 1.2, USB 2.0, 15W power delivery, and Ethernet pass-through; 2 × USB 2.0 Type-A for media playback and peripheral attachment.
• Network: 1 × RJ45 Gigabit LAN port for central management, content scheduling, and network-sourced feeds; WiFi slot supports optional module for wireless network backup.
• Audio: 3.5mm stereo output and SPDIF digital output allow flexible audio routing to external sound systems or embedded speakers.

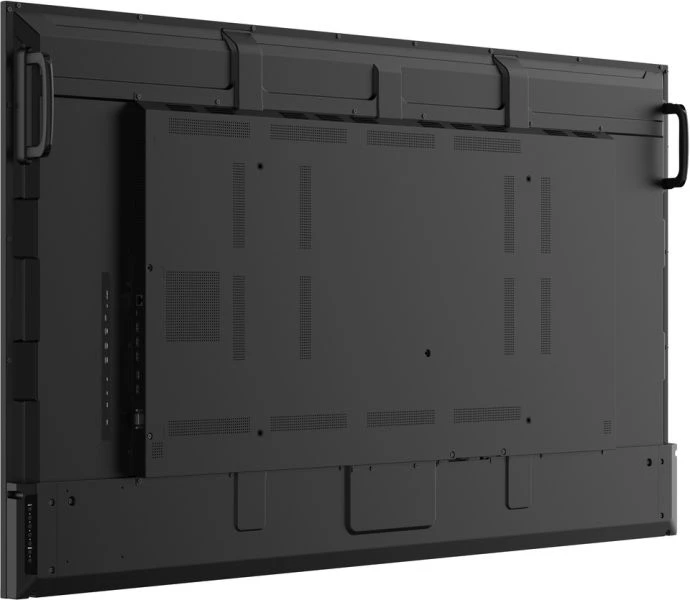

• Serial Control: 1 × RS-232 port integrates with building management systems and legacy AV control infrastructure for centralised scheduling and monitoring.
• Power: Universal AC input (100–240 VAC ±10%) and single USB-C power delivery option simplify infrastructure in multi-region deployments.

Warranty

This ViewSonic display is covered by a 3-year replacement warranty. In the event of a verified hardware fault, ViewSonic will replace the unit, supporting reliable operation across commercial and signage deployments. Contact Kickstart Computers for warranty claims and support.
