Managing a fleet of commercial signage displays across multiple locations demands reliable remote control, consistent content scheduling, and minimal on-site maintenance overhead. The IFP55G1 is purpose-built for this operational model—it arrives without an embedded operating system, allowing you to deploy either a Windows or Android slot-in processor that suits your network infrastructure and content management platform. This approach eliminates firmware lock-in, simplifies fleet updates, and lets IT teams maintain consistent configurations across all deployed units.
OS-Free Compute Flexibility for Multi-Vendor Signage Networks
Deploy Windows, Android, or Google Chrome operating systems by selecting the slot-in processor that aligns with your content management platform and IT governance model. This approach isolates the display hardware from OS lifecycle management, allowing separate upgrade cycles for the panel and compute module while maintaining a consistent fleet configuration across locations.
Key Features
- OS-Free Architecture with Slot-In PC Support: Install Windows or Android compute modules—Chromebox, VPC33, or other compatible processors—to align with your existing signage ecosystem and content management software. Reduces vendor lock-in and streamlines IT governance at scale.
- 4K Resolution and Brightness for Ambient Retail Environments: 3840×2160 resolution and 350 nits brightness deliver readable signage in naturally lit retail and hospitality spaces. Light sensor enables automatic brightness adjustment based on ambient conditions, reducing manual tuning and energy waste.
- Networked Content Control via LAN and USB-C: Dual Ethernet ports (1 Gbps via OPS slot, 100 Mbps via USB-C) support simultaneous network connections for redundancy. Schedule content remotely, monitor display health, and deploy firmware updates without physical access to each unit.
- USB-C Plug-and-Play for Mobile and BYOD Scenarios: Single USB-C port delivers DisplayPort video, touch feedback, 65W power delivery, and 100 Mbps Ethernet, enabling staff or visiting devices to present content without cable hunting or docking delays.
- 50,000-Hour Rated Backlight Lifespan: LED-backlit panel rated for extended operation with minimal maintenance. In typical commercial signage duty cycles (12–16 hours daily), this translates to 8–10 years of reliable performance before panel replacement becomes necessary.
- Multi-Point Touch and Annotation Capability: 40-point touch (Windows) or 20-point (Android) supports interactive kiosks, way-finding systems, and customer feedback applications. Ultra-fine IR recognition maintains accuracy across the full display surface.
Dual-Network Connectivity for Reliable Remote Content Distribution
Redundant Ethernet paths via OPS slot (1 Gbps) and USB-C (100 Mbps) ensure content delivery continuity even if one connection fails. This architecture is particularly valuable in retail and transport hub deployments where unplanned display downtime directly impacts customer experience and operational efficiency.
Specifications
| Specification | Detail |
|---|---|
| Display Size | 55 inches diagonal |
| Resolution | 3840 × 2160 (UHD) |
| Panel Type | TFT LCD with DLED backlight |
| Brightness | 350 nits (typical) |
| Contrast Ratio | 1200:1 typical; 6000:1 DCR |
| Backlight Operating Life | 50,000 hours minimum |
| Touch Technology | Ultra Fine IR; 40 points (Windows) / 20 points (Android) |
| Touch Resolution | 32767 × 32767 |
| Surface Treatment | 9H hardness, anti-glare coating |
| Viewing Angles | 178° horizontal, 178° vertical |
| Response Time | 8ms |
| Operating System | None (OS-free); compatible with Windows, Android, Chromebox via OPS slot |
| Audio Output | 10W × 2 front-facing speakers |
| Power Consumption | 90.23W typical operating; <0.5W standby |
| VESA Mount | 400 × 200mm |
| Physical Dimensions (W × H × D) | 1262.5 × 770 × 85.7 mm (49.7 × 30.3 × 3.37 in) |
| Weight (Net) | 26.9 kg (59.3 lb) |
| Operating Temperature Range | 0°C to 40°C |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Light Sensor | Yes (automatic brightness adjustment) |
| Certifications | Energy Star, EPEAT, CE, RoHS, REACH |
Connectivity
- HDMI Inputs (3): Rear-mounted; HDMI 1 and 3 support CEC; HDMI 2 supports CEC and ARC for simplified device control and audio routing.

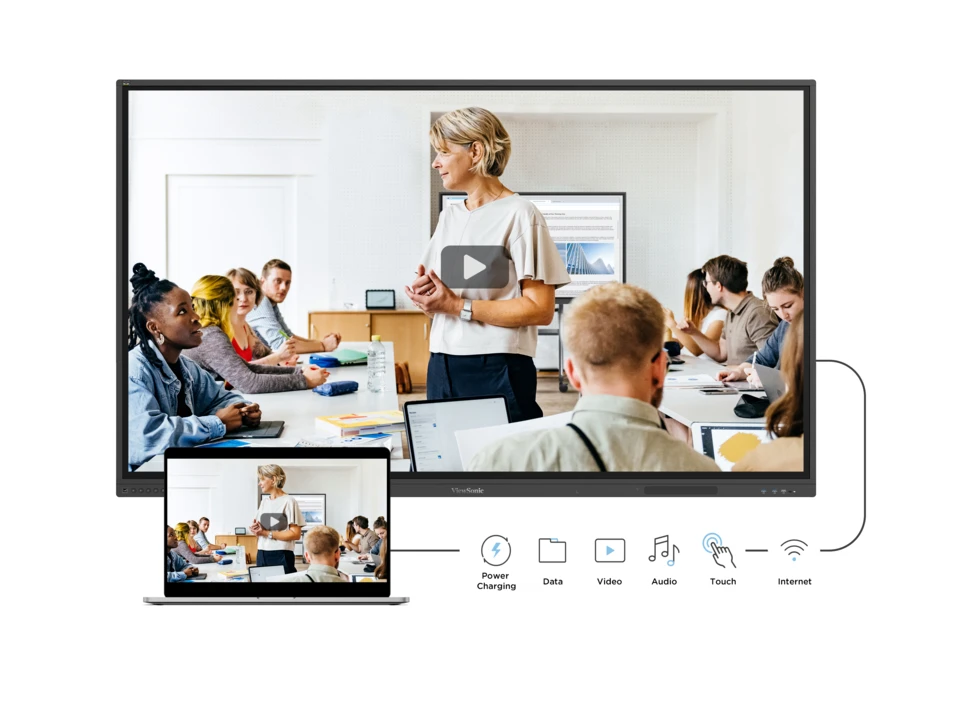

- USB-C (1): Front-facing with DisplayPort 1.2 video, touch feedback, 65W power delivery, and 100 Mbps Ethernet—enables single-cable connection from laptops, tablets, and presenter devices.
- USB Type-A (6 total): 3 front (1× USB 2.0, 2× USB 3.0) and 3 rear (2× USB 3.0, 1× USB 2.0 for firmware updates); support peripherals, touch controllers, and external media.
- USB Type-B (2): Rear-mounted USB 3.0 for advanced touch configuration and OPS slot communication.
- Ethernet: Dual LAN ports—1 Gbps via OPS slot, 100 Mbps via USB-C; supports simultaneous network paths for scheduling, monitoring, and content distribution redundancy.

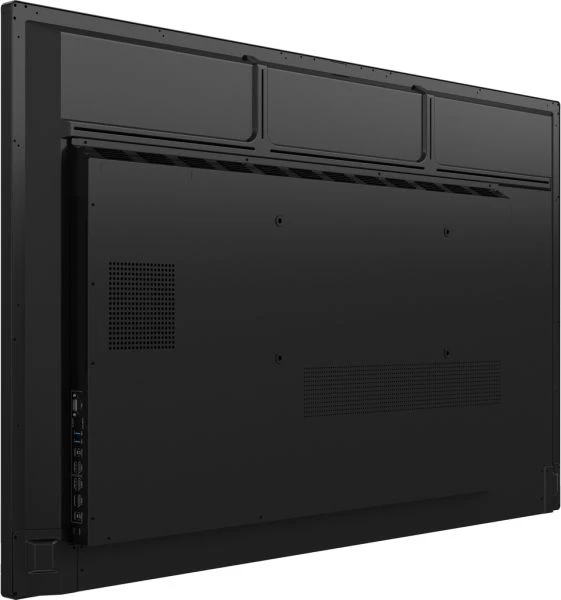

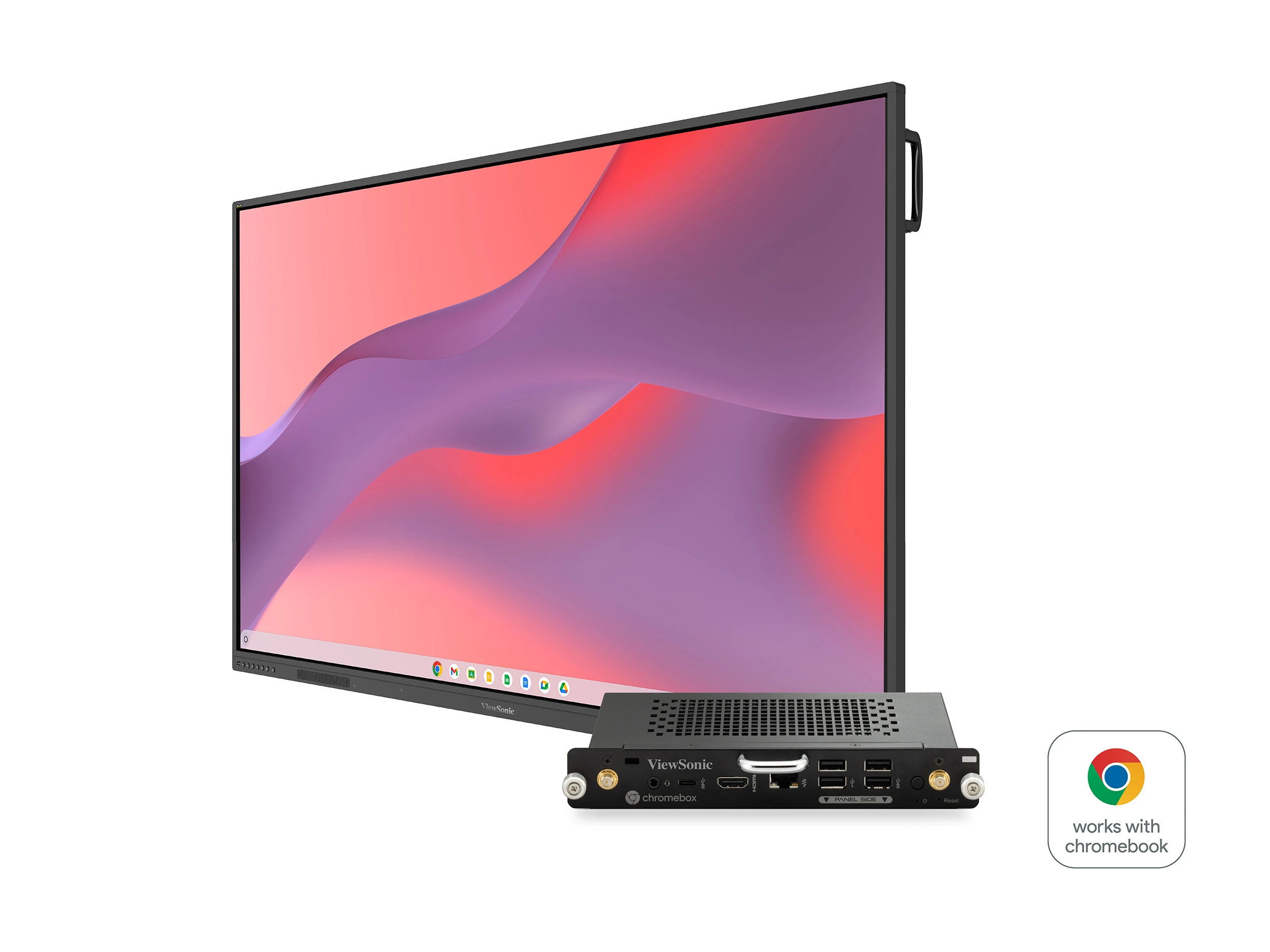

- OPS Slot (1): Accepts compatible Windows or Android compute modules; 1 Gbps Ethernet connection integrated into the slot.
- VGA Input (1): Rear-mounted legacy video input for compatibility with older presentation and control systems.
- Audio: 1 stereo input (3.5mm jack); 1 stereo output; 10W × 2 front-facing speakers.
- RS-232 Port (1): Serial control for integration with third-party control systems and legacy AV infrastructure.
Warranty
This ViewSonic display is covered by a 5-year replacement warranty. In the event of a hardware fault, ViewSonic will replace the unit — minimising downtime in classroom and enterprise deployments. Contact Kickstart Computers for warranty claims and support.
