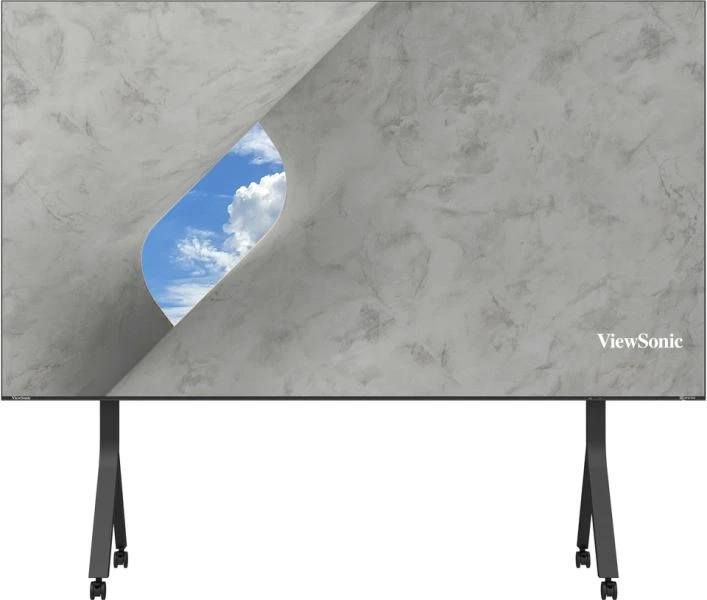

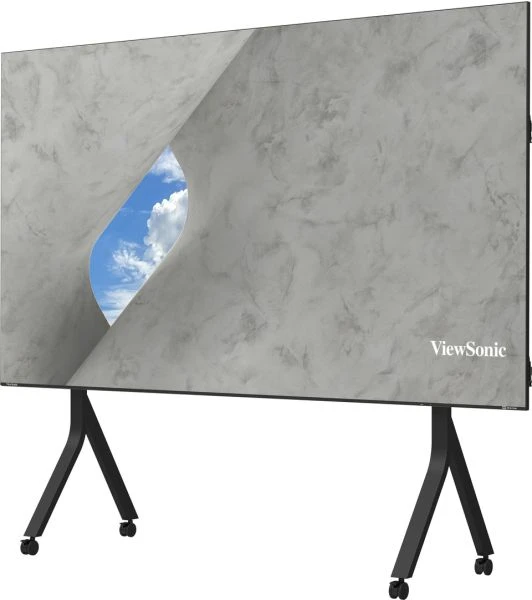

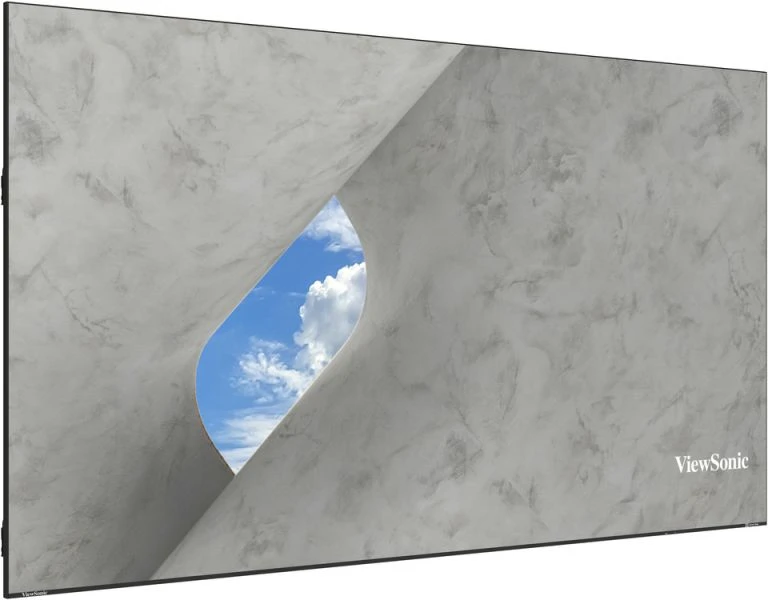

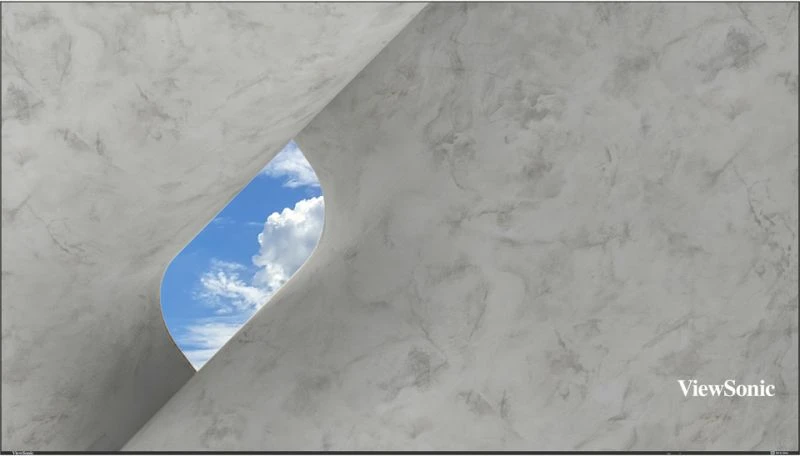

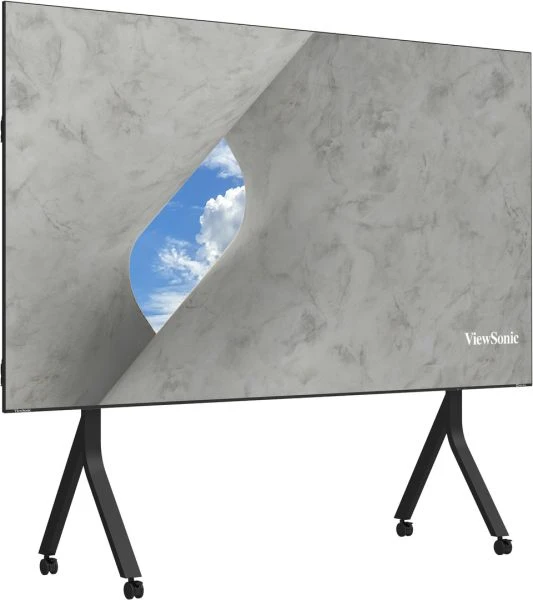

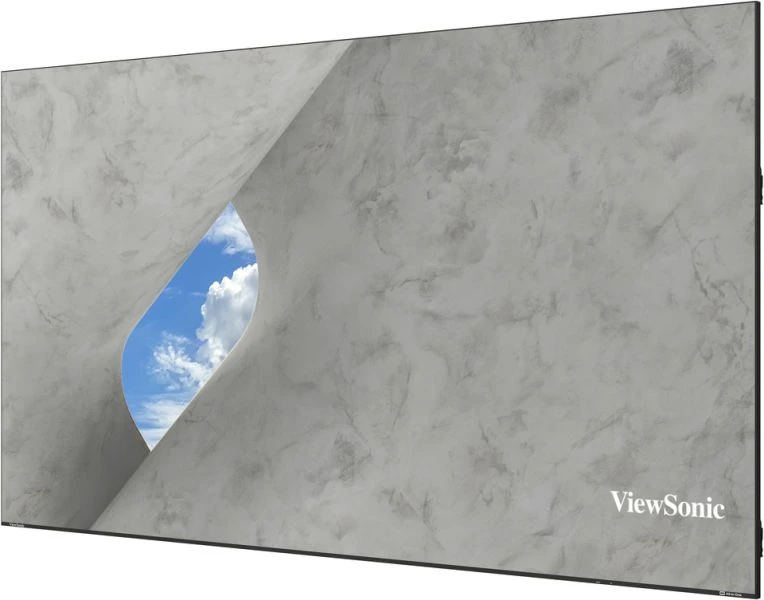

ViewSonic LDE136G-152 136″ All-in-One Direct View LED Display | Auditorium & Large-Format Installations

Auditoriums and corporate presentation environments impose specific demands on large-format displays. Viewing distances are substantial, ambient light levels vary widely, and the display must perform reliably across extended operational hours with front-end maintenance accessibility. Direct view LED addresses these constraints where projection systems introduce alignment complexity and where standard LCD panels struggle against daylight or stage lighting. The LDE136G-152 is built for this environment: a 136-inch dvLED display with 1.56mm pixel pitch optimised for mid-to-far viewing distances, 600 nits brightness to cut through ambient light, and a modular design that prioritises serviceability without requiring rear access.

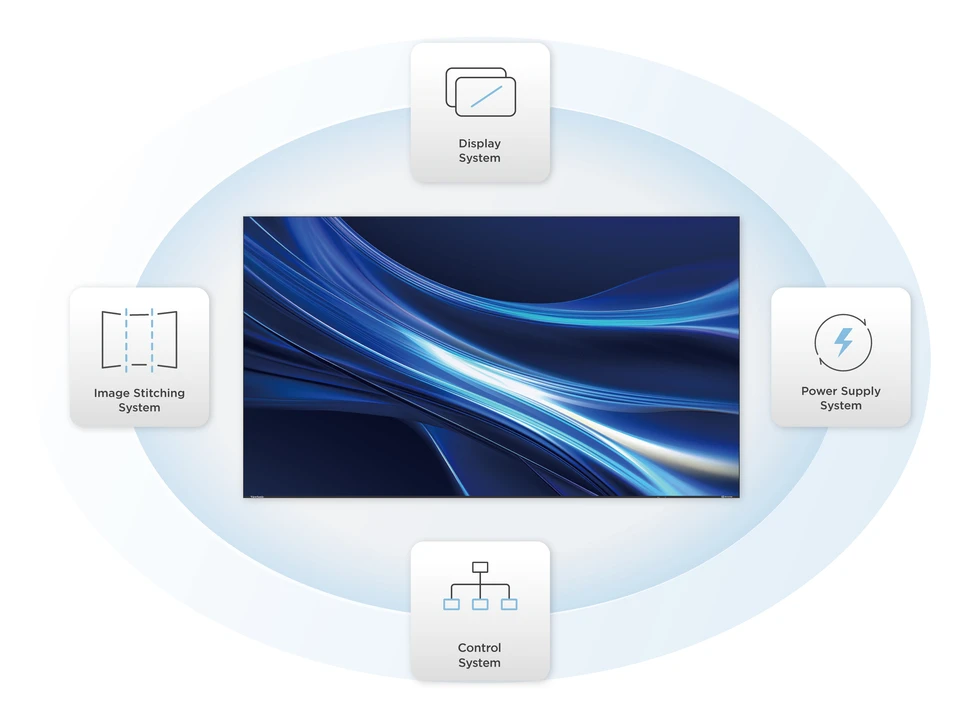

Integrated Control and Installation Simplicity

The all-in-one control architecture eliminates standalone processor boxes and reduces integration footprint. Installation complexity drops—fewer external components, shorter deployment timelines, and lower cost of ownership during setup and teardown cycles typical in touring venues and temporary installations.

Key Features

• Integrated All-in-One Control Architecture: The pre-built control box and simplified OS eliminate external processor racks and reduce integration complexity. Installation footprint shrinks and deployment timelines compress—critical in auditorium and exhibition settings where setup windows are finite.

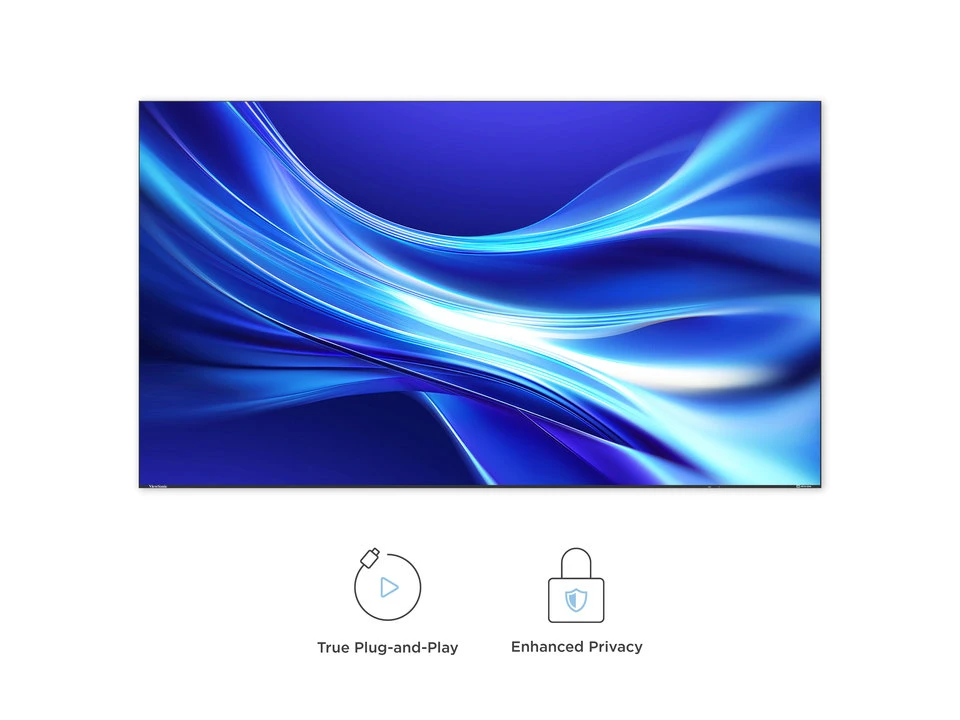

• GOB Module Durability and Front-Access Maintenance: Encapsulated modules with IP54 and IK06 certification withstand handling during installation and touring deployments. Hot-swappable module design means faulty LEDs get replaced from the front, eliminating costly venue closures for rear-access service calls.
• Pixel Pitch Optimised for Viewing Distance: The 1.56mm pitch suits viewing distances from 2–3m onward, typical of auditorium seating rows and large boardroom sightlines. Closer viewing reveals pixelation; farther distances benefit from the visual coherence this pitch provides without unnecessary cost overrun from finer pitches.
• Brightness Headroom in Mixed Lighting: 600 nits peak output handles stage wash, natural window light, and venue ambient lighting without image washout. The 100-level brightness adjustment allows operators to tune display output to actual room conditions rather than running at maximum permanently.
• Control System and AV Ecosystem Integration: RS232, RJ45 LAN, and HDMI CEC support standard commercial control platforms—Crestron, AMX, and similar—allowing the display to integrate into venue-wide automation, power sequencing, and content distribution networks common in theatres and corporate command centres.
• Ultra-Slim Form Factor and Screen-to-Body Ratio: At 52mm depth with a 99% screen-to-body ratio, the display sits flush on walls and in fixed installations with minimal visual interruption. The lightweight 108kg design reduces mounting infrastructure complexity compared to heavier flat panel alternatives.
• Extended LED Operating Life: 100,000 hours typical lifespan translates to approximately 11 years at 24/7 operation or 20+ years in standard theatre schedules. Predictable service intervals and low-cost module replacement reduce total cost of ownership versus lamp-based projection over extended deployment horizons.
• Resolution and Refresh Rate Flexibility: Native 1920×1080 with support for input signals from VGA through 4K at 60Hz accommodates legacy presentation systems alongside modern content sources. Frame rates up to 85Hz reduce flicker perception in recording environments and live broadcast applications.

Simplified Control Platform Reduces Integration Burden

The non-OS control design sidesteps software licensing complexity and Android update cycles. Operators interface with straightforward menu-driven input selection and brightness adjustment rather than managing system updates or third-party app compatibility—important in fixed installations where stability and predictability matter more than feature expansion.

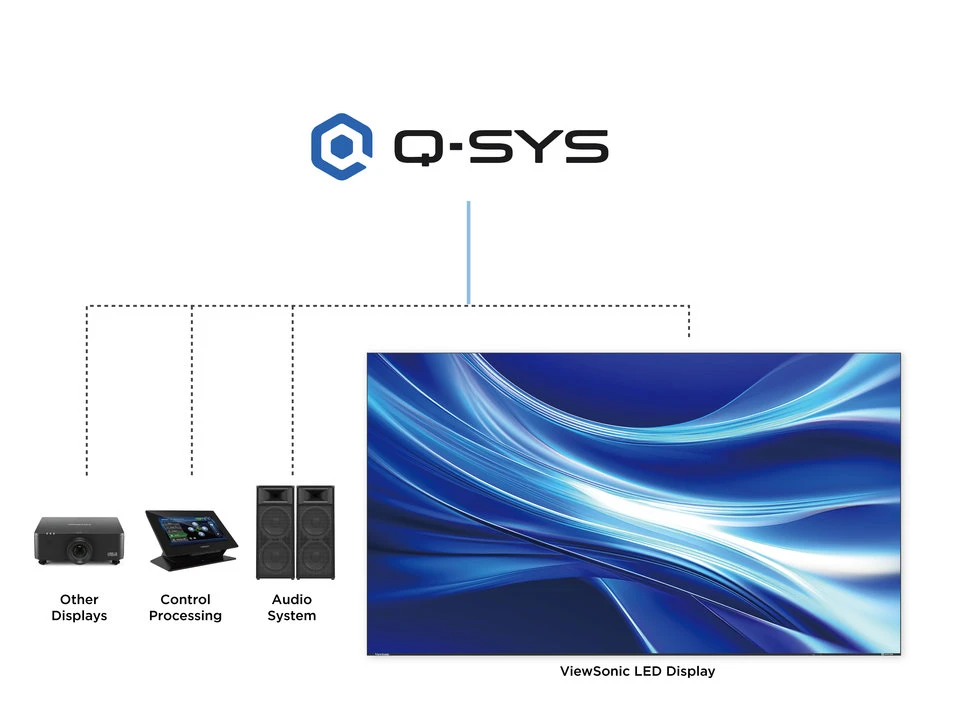

Enterprise AV Control System Compatibility

RS232 and RJ45 LAN connectivity enable full integration into Crestron, AMX, and equivalent commercial automation platforms. Power sequencing, input switching, and brightness adjustment operate through venue-wide control systems, supporting consistent operational workflows across multiple displays and facilities.

Lightweight Assembly Reduces Structural Load and Installation Labour

The 108kg weight significantly lowers mounting infrastructure requirements compared to similarly sized LCD or projection systems. Installation crews can position and secure the display with standard commercial mounting hardware, reducing engineering overhead and site preparation time.

Specifications

Connectivity

• HDMI Inputs: 2 ports (1× HDMI 2.0 with HDCP 2.2, 1× HDMI 1.4 with HDCP 1.4) — accommodates simultaneous sources or failover configurations common in presentation and broadcast environments.
• HDMI Output: 1 port (HDMI 1.4 with HDCP 1.4, internal) — supports daisy-chaining or secondary monitoring in control room applications.
• USB 3.0: 2 ports (1 external, 1 internal) — enable local content playback, firmware updates, and service diagnostics without network dependency.
• LAN (RJ45): 1 port for network control, management, and integration into commercial AV control systems (Crestron, AMX, etc.).
• RS232 (DB-9 female): Serial control port for legacy and enterprise AV automation systems.
• Audio Output: 3.5mm line-out for external amplification in large venues, plus onboard 8W stereo amplification for smaller installations.
• IR Receiver: Infrared remote control input for local operation and switching.
• USB Power Port: 5V/0.9A shared with main USB input for low-power peripherals.

Warranty

This ViewSonic display is covered by a 3-year on-site warranty. A ViewSonic technician will attend site to service or replace the unit — essential for large-format LED installations where on-site intervention is the only practical resolution path. Contact Kickstart Computers for warranty claims and support.
