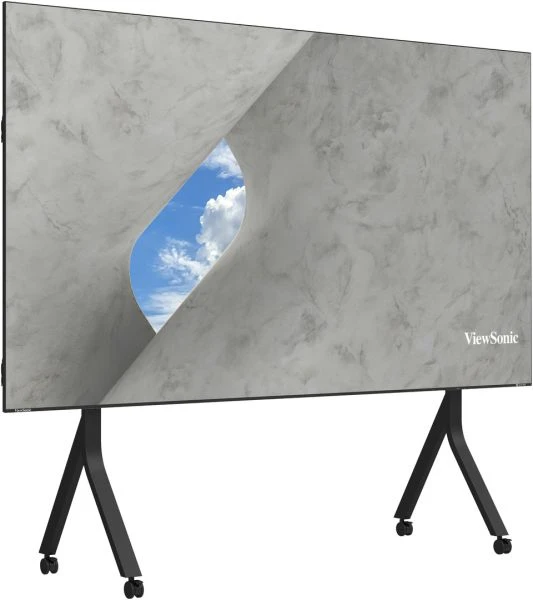

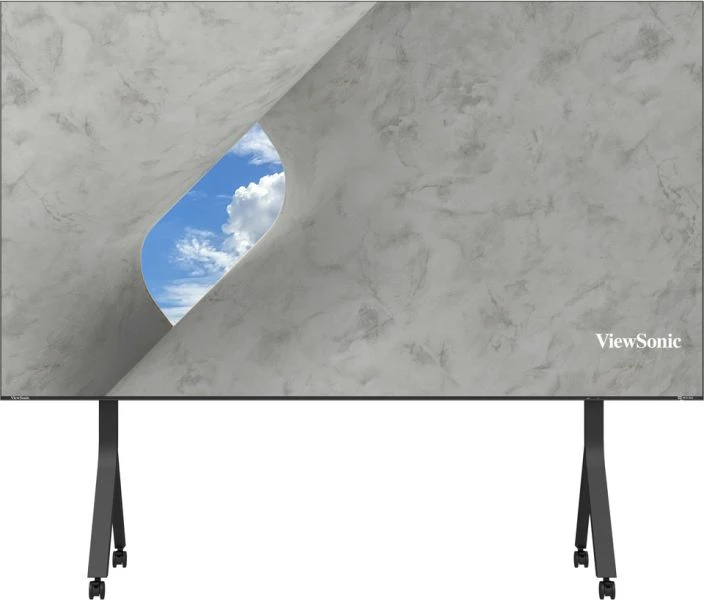

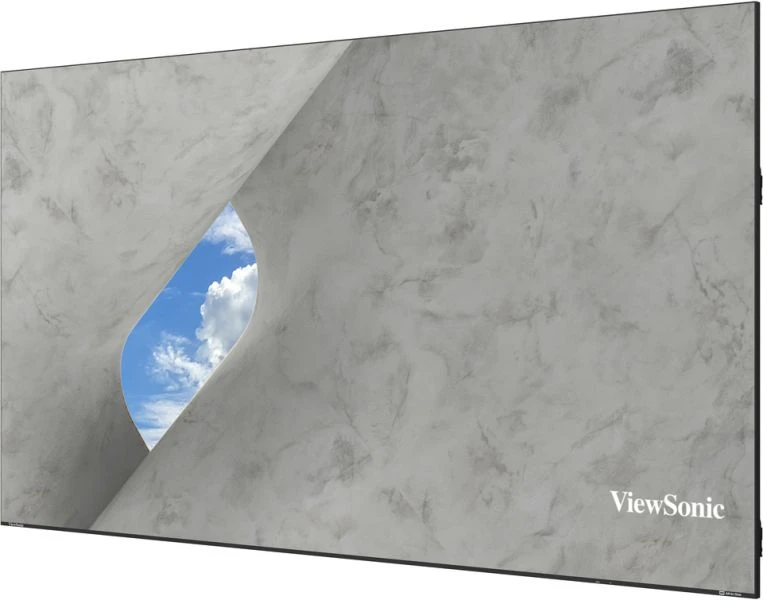

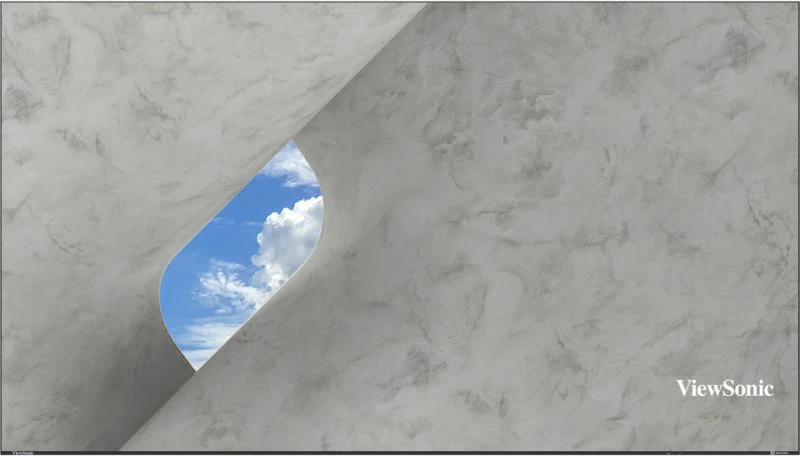

ViewSonic LDE163G-182 163″ All-in-One Direct View LED Display | Large-Format Auditorium and Corporate Boardroom Installation

Managing large-format LED deployments at scale requires infrastructure that reduces commissioning friction and centralises operational control. The LDE163G-182 ships with an integrated pre-built control box and simplified embedded OS, which streamlines initial deployment across multiple sites and eliminates the complexity of external control system procurement. For AV integrators and IT teams deploying across corporate estates or event venues, this translates to faster time-to-production and lower per-unit configuration overhead.

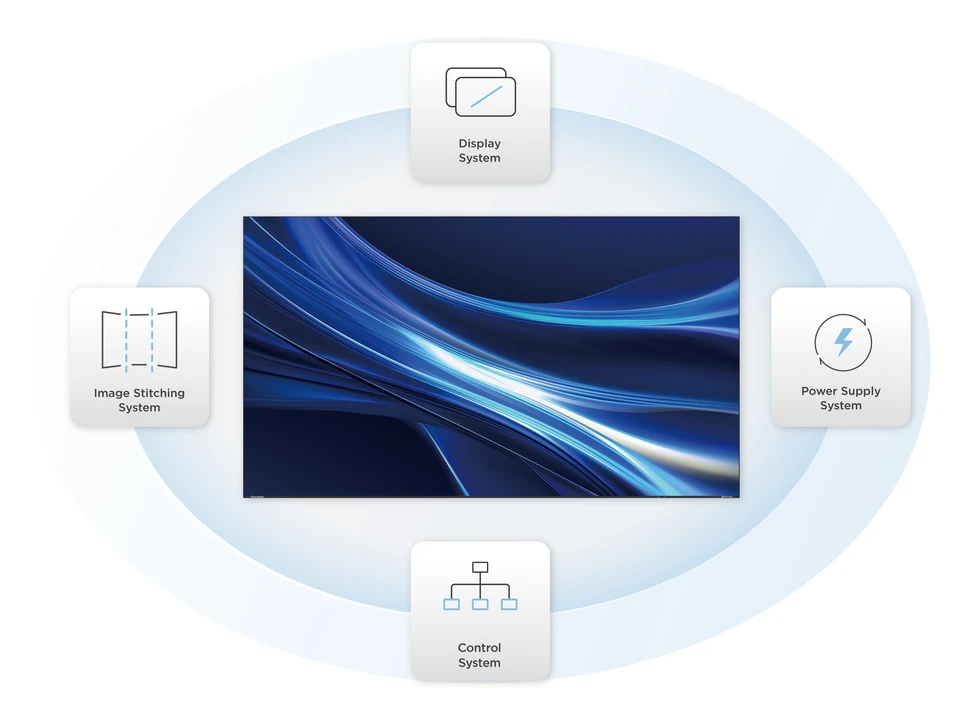

Integrated Control Infrastructure Reduces Commissioning Complexity

The built-in pre-configured control box ships ready for network and signal input connection, eliminating the procurement, configuration, and rack space of external control hardware. AV integrators can deploy the display and connect it to existing infrastructure within hours rather than days.

Key Features

• Pre-integrated Control Architecture: Built-in control box eliminates separate external controllers, reducing cable runs, rack space, and installation labour — operationally critical when rolling out multiple units across geographically dispersed locations.
• GOB-Encapsulated LED Modules with IP54/IK06 Rating: Glue-on-board surface treatment and front-panel ingress protection allow deployment in demanding environments — trade shows, outdoor sheltered settings, high-traffic command centres — without protective glazing or enclosure modifications.

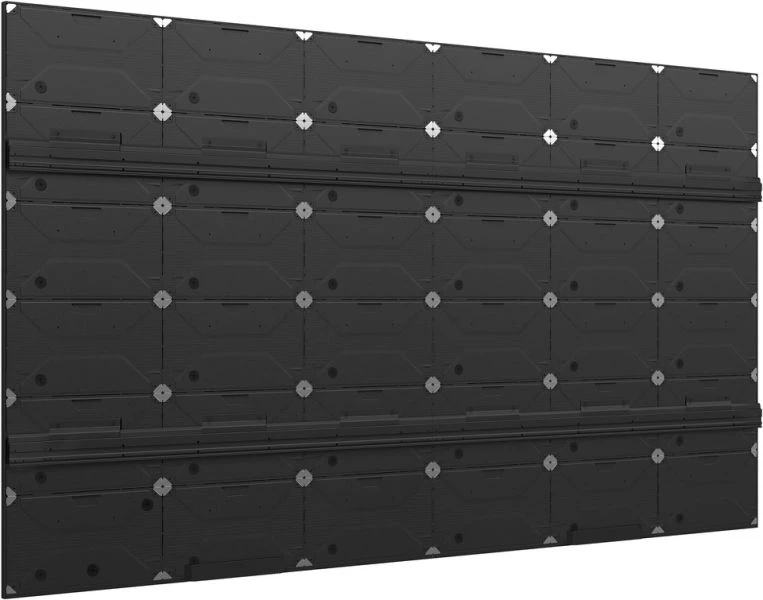

• Hot-Swappable Module Design: Ten spare LED modules shipped with the display enable field replacement without manufacturer service calls or extended downtime; critical for venues and command centres where uptime commitments are contractual.
• Simplified Operating System: Non-standard embedded OS designed for scheduled content playback and static signage rather than general computing reduces security attack surface and simplifies remote fleet monitoring across multiple displays.
• AV Control System Compatibility: Native support for industry-standard control protocols (RS232, RJ45 LAN, HDMI CEC) enables integration into existing Crestron, AMX, or third-party automation ecosystems without middleware or custom drivers.
• HDMI CEC and Synchronized Power Control: Device control via HDMI CEC and coordinated power switching allows single-point activation of entire presentation chains — source, display, and downstream equipment synchronise from one control command.
• Ultra-Slim Bezel-Free Form Factor: 52mm profile and 99% screen-to-body ratio achieve seamless edge-blending in multi-panel arrays and fit flush into integrated room architecture without structural projection or service access complexity.
• Lightweight Modular Construction: At 153kg net weight, the display mounts directly to wall structures without reinforced framework; combined with the included wall mount bracket, installation labour is reduced compared to heavier direct-view alternatives.

Purpose-Built Operating System Simplifies Fleet Security and Monitoring

The embedded simplified OS removes unnecessary compute surface and eliminates the overhead of patching, licensing, and securing a general-purpose operating system across multiple distributed displays. Content scheduling and remote status monitoring operate over standard network protocols.

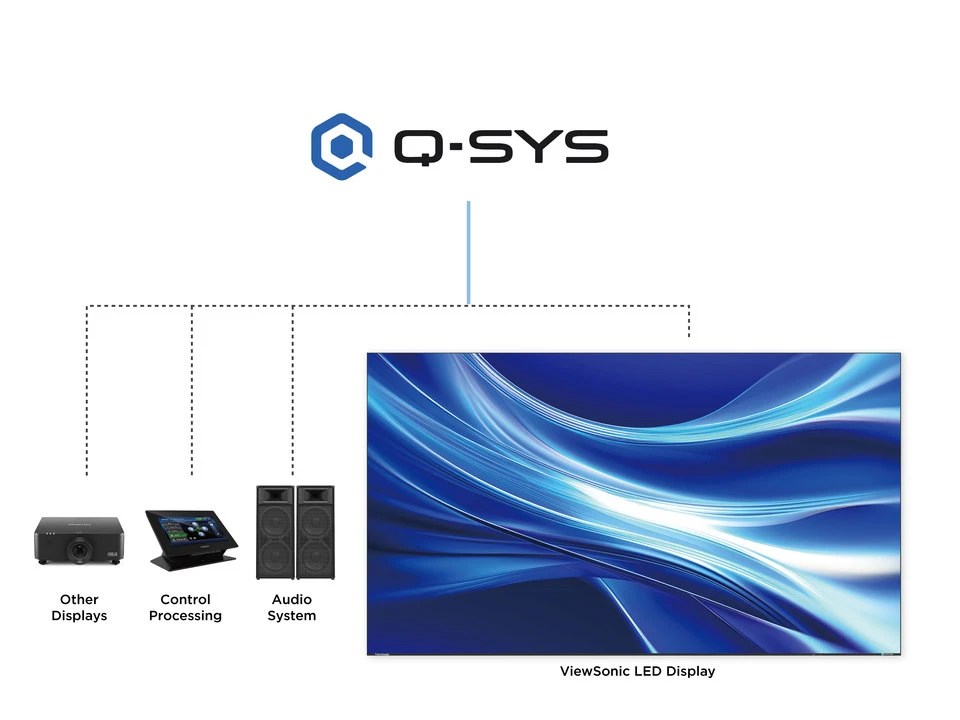

Native AV Control System Protocol Support Eliminates Custom Integration

RS232, RJ45 LAN, and HDMI CEC connectivity allow native integration into Crestron, AMX, or third-party automation ecosystems without middleware, gateways, or custom driver development. Existing infrastructure can assume control immediately upon installation.

Lightweight Construction Simplifies Logistics and Installation Labour

At 153kg, the display installs directly to standard wall framing with the included bracket, reducing rigging labour and site preparation complexity compared to heavier alternatives. Multi-venue rollouts benefit from lower handling and positioning costs.

Specifications

Connectivity

• HDMI Inputs: 2 ports — one HDMI 2.0 with HDCP 2.2 support (primary), one HDMI 1.4 with HDCP 1.4 (secondary or legacy device compatibility).
• HDMI Output: 1 × HDMI 1.4 (internal); enables daisy-chaining to downstream displays or monitoring via independent secondary output.
• USB 3.0: 2 ports total — one internal service port (diagnostics, firmware updates), one external (content delivery, peripheral connectivity).
• Network (LAN): 1 × RJ45 control input (Ethernet) for remote management, scheduling, and integration into AV control system networks.
• Serial Control: 1 × RS232 (DB-9 female) for legacy control system compatibility and device-to-device command signalling.
• Audio: 3.5mm stereo audio output (headphone jack level) for independent audio routing or external amplification.
• Infrared Receiver: Built-in IR sensor for standard remote control operation and line-of-sight command input during setup or emergency override.
• Power: Standard IEC mains inlet, split between display and internal control electronics — no external power distribution required.

Warranty

This ViewSonic display is covered by a 3-year on-site warranty. A ViewSonic technician will attend site to service or replace the unit — essential for large-format LED installations where on-site intervention is the only practical resolution path. Contact Kickstart Computers for warranty claims and support.
