Content management across dispersed retail and hospitality locations demands displays that run reliably without constant technician deployment. The 55DM66D addresses this directly: built around Android 11 with cloud-based device management and automatic brightness adjustment, it’s designed to eliminate daily operational friction in customer-facing signage roles.
Key Features
- Automatic Brightness Adaptation: The ambient light sensor adjusts screen brightness in real time according to environmental conditions. In retail and hospitality venues, this maintains readable content visibility without manual adjustment, and reduces energy consumption during lower-light periods. Energy Star 8.0 certified.
- 24/7 Operation Rated: Rated for continuous 7-day, 24-hour operation with a 50,000-hour panel lifetime. This specification reflects typical commercial signage deployment cycles — no shutdown schedules required, no thermal cycling degradation concerns.
- Cloud-Based Device Management: VisionInfo platform provides end-to-end remote management and control across all networked displays. Push content updates, monitor device status, diagnose connectivity issues, and schedule content changes from a central dashboard — eliminating the need for on-site intervention.
- Wireless Content Distribution: Built-in ScreenShare application enables wireless content delivery from any connected device. Simplifies content updates in multi-site deployments and reduces reliance on physical cable connections or USB-based workflows.
- Conformal Coating Protection: Electronic components are sealed against moisture, dust, salt, and temperature fluctuations. Critical for hospitality venues, transport hubs, and outdoor-adjacent retail environments where environmental exposure is unavoidable.
- Anti-Glare Panel with 25% Haze: Reduces reflections without softening image contrast, maintaining readability in high-ambient-light retail environments. The 72% NTSC color gamut ensures accurate color reproduction for branded content and promotional materials.

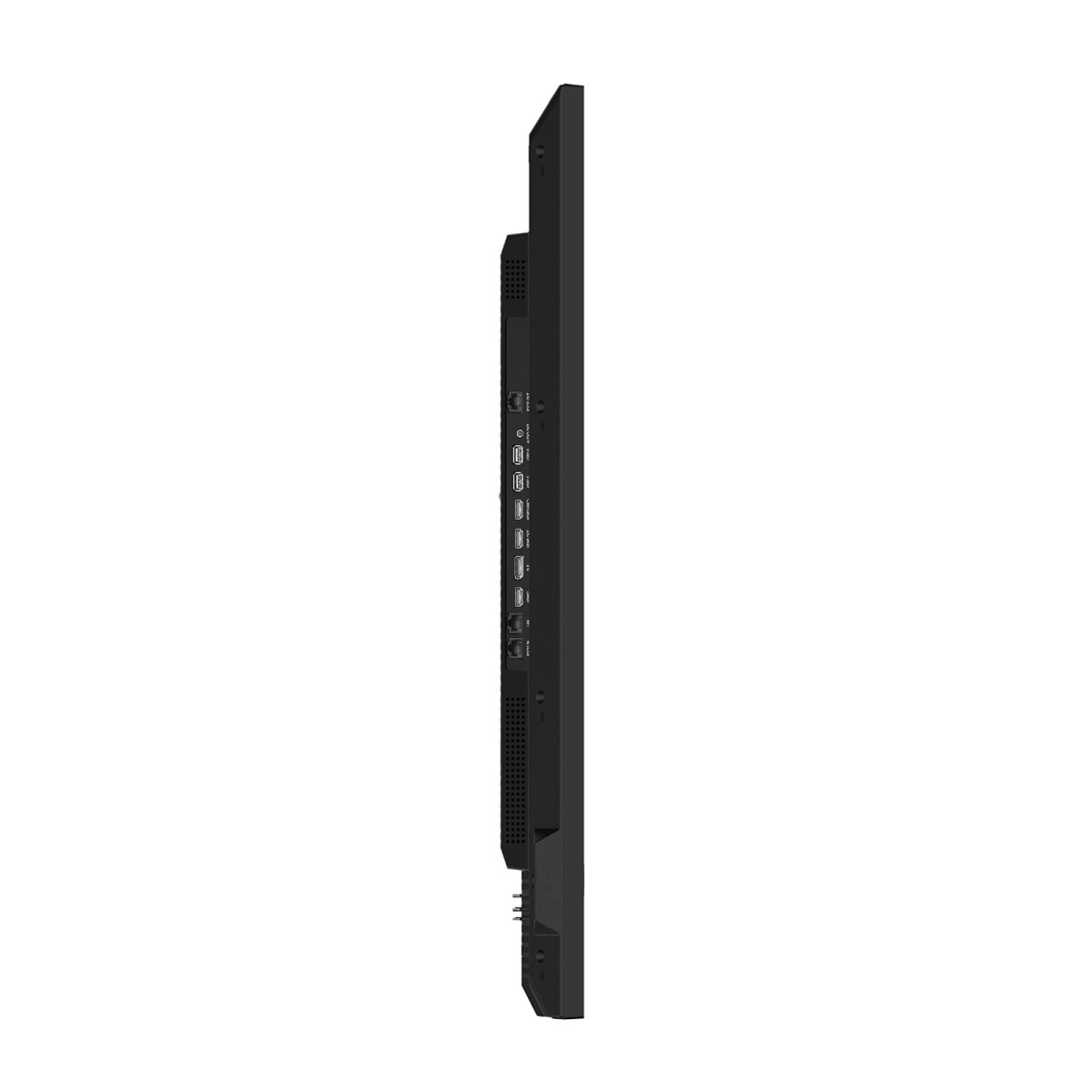

- Narrow Bezel Design with Flush Wall Mounting: 10mm symmetrical bezel and integrated cable management enable seamless wall integration. All connectivity ports face outward, allowing displays to mount flush against walls without cable bulge — important for retail storefronts and corporate lobby aesthetics.
- Dual-Band WiFi and Ethernet Connectivity: 802.11ac WiFi (2.4/5.0GHz) and wired LAN ensure reliable content delivery in varied network environments. Bluetooth 5.1 support enables smartphone pairing for troubleshooting or guest interaction scenarios.
Specifications
| Specification | Detail |
|---|---|
| Display Size | 55 inches |
| Resolution | 3840 x 2160 (4K UHD) |
| Panel Type | ADS IPS |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 1200:1 (typical) |
| Color Gamut | 72% NTSC |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Time | 8ms |
| Operating System | Android 11 |
| Operation Hours Rating | 24/7 (7 days, 24 hours) |
| Panel Lifetime | Up to 50,000 hours |
| Backlight | DLED |
| Refresh Rate | 60Hz |
| Anti-Glare Haze | 25% |
| Orientation | Landscape and Portrait |
| Dimensions (W x H x D) | 1239.7 x 710.2 x 63.3mm |
| Bezel Width | 10.1mm (top, left, right), 10.6mm (bottom) |
| Net Weight | 13.9kg |
| VESA Mount | 300mm x 300mm |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 10% to 80% (non-condensing) |
| IP Rating | IP5X |
| Certifications | Energy Star 8.0, CCC, CB, CE, FCC, cTUVus, UKCA, CEC, ERP, IEC 62368-1 |
| Built-in Audio | 10W x 2 speakers |

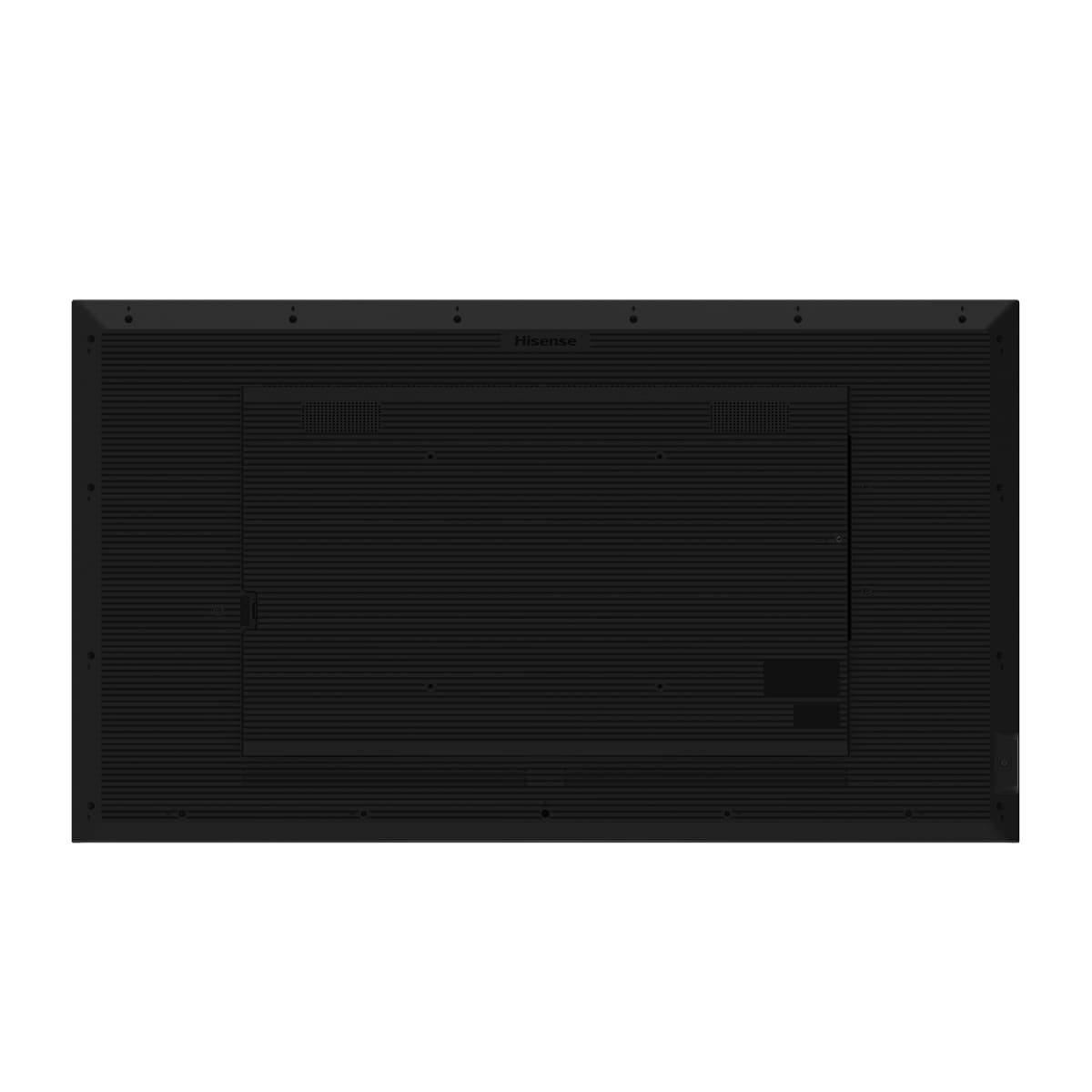

Connectivity
- HDMI 2.0 (x2) — Primary video inputs for content source connection
- DisplayPort 1.2a (x1) — Alternative high-bandwidth video input
- HDMI Output (x1) — ARC-capable for audio return channel integration
- LAN/Ethernet (RJ45 x1) — Wired network connection for content delivery and device management
- RS232 Control (x2: in and out) — Serial control protocol for integration with third-party control systems and automation platforms
- USB 2.0 (Type-A x1) — Peripheral connection and firmware update capability
- USB 3.0 (Type-A x1) — High-speed data transfer for large-file content distribution
- 3.5mm Audio Output (x1) — External speaker or audio system connection
- WiFi — Dual-band 802.11ac (2.4/5.0GHz) for wireless network access
- Bluetooth 5.1 — Wireless pairing for mobile devices and remote management scenarios
