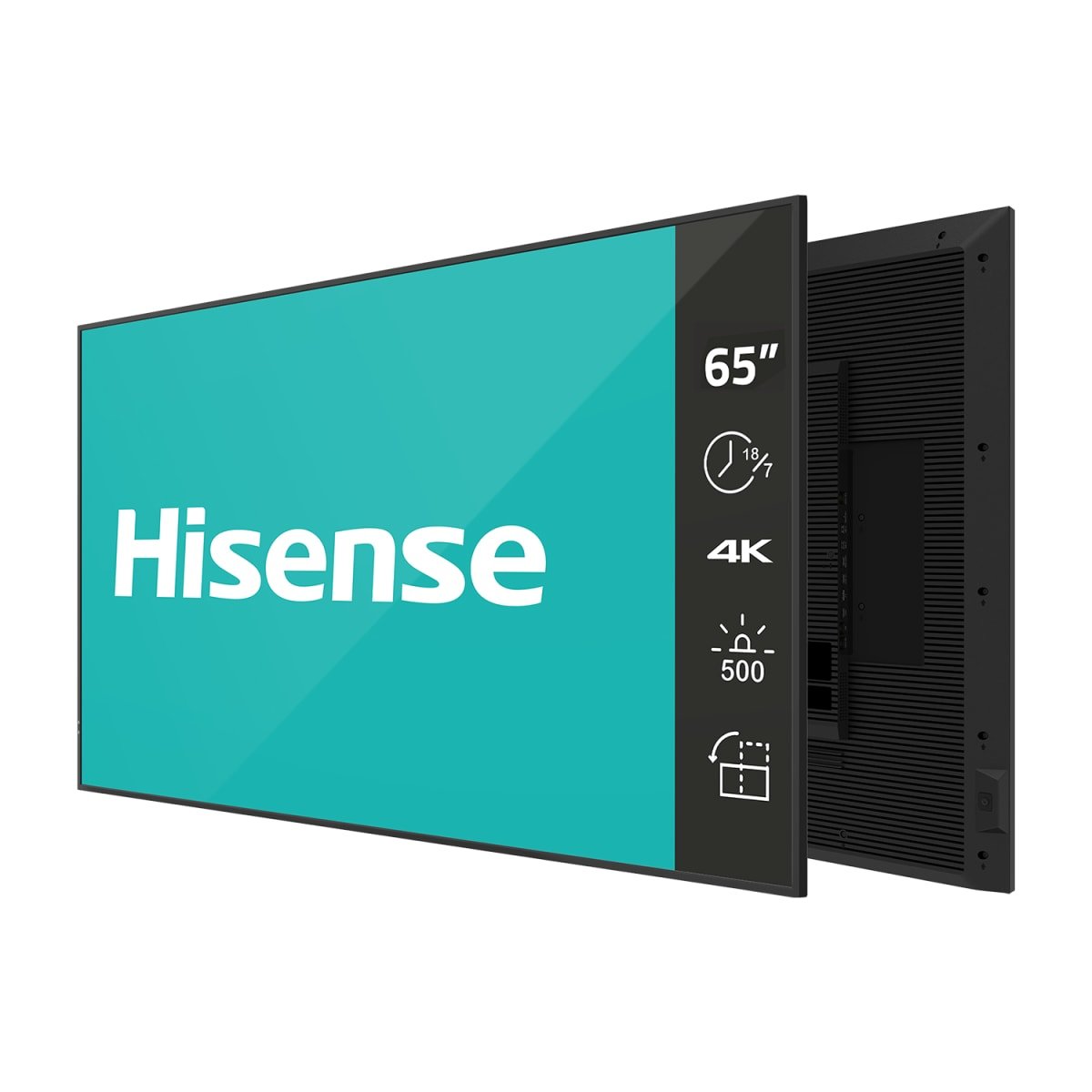

In retail signage deployments, content scheduling reliability, remote device management capability, and ambient light adaptation are the primary operational considerations. This 65-inch 4K display handles extended commercial operation—rated for 18 hours daily—with built-in Android 11 and cloud-based management tools that allow you to push content updates and monitor device status across multiple sites from a central location.
Key Features
- Ambient Light Sensor: Automatically adjusts brightness according to local lighting conditions. In high-traffic retail environments or venues with variable natural light, this reduces manual brightness adjustments and ensures the display remains readable throughout the day without draining power unnecessarily.
- Cloud-Based Device Management (VisionInfo): Centralized control and monitoring of all connected displays across your signage infrastructure. Push content schedules, monitor uptime, diagnose issues, and remotely manage devices without requiring on-site technical visits—critical for multi-location deployments.
- Android 11 Platform: Native support for standard AV scheduling applications, content management systems, and third-party signage software. The operating system handles security updates and permissions management, reducing vulnerability exposure in networked environments.
- Wireless Screen Sharing (ScreenShare): Built-in application allowing ad-hoc content delivery from mobile devices or laptops without HDMI cables. Useful in corporate lobbies, hospitality venues, and quick-service restaurants where dynamic content updates or emergency messaging are required.
- Conformal Coating: Electronic components are protected against moisture, dust, salt, and thermal stress. In transport hubs, healthcare waiting areas, and outdoor-adjacent venues, this coating extends equipment lifespan and reduces unplanned downtime.
- Anti-Glare Panel with High Haze (25%): Reduces reflections and ambient light interference without softening image clarity. Deployed in bright retail environments or near windows, this maintains perceived contrast and readability without requiring a brightness increase that would elevate power consumption.

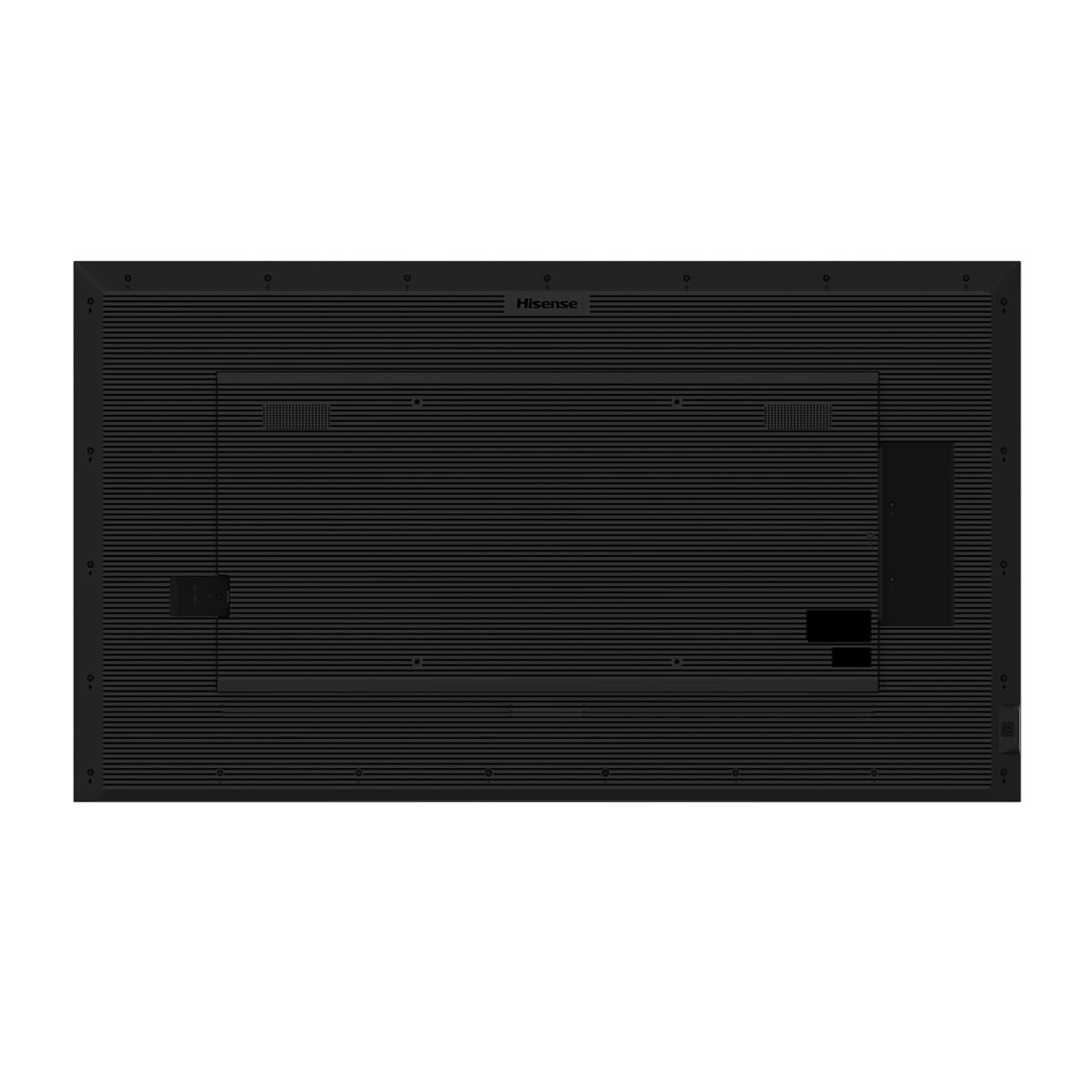

- Narrow Bezel Design (10.4mm sides): Symmetrical bezel allows seamless tiling of multiple displays and flush wall mounting without visual gaps. The recessed rear connectivity keeps cable runs tidy and out of sight, reducing visual clutter behind customer-facing installations.
- 500 Nits Brightness: Suitable for ambient light conditions typical in indoor commercial venues. High enough to maintain visibility in brightly lit retail environments without the excessive power draw required by outdoor-rated displays.
Specifications
| Specification | Detail |
|---|---|
| Display Size | 65 inches (diagonal) |
| Panel Type | ADS (In-Plane Switching) |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 1200:1 (typical) |
| Color Gamut | 72% NTSC |
| Viewing Angle | 178° horizontal / 178° vertical |
| Haze Level | 25% |
| Refresh Rate | 60Hz |
| Response Time | 8ms (typical) |
| Operating System | Android 11 |
| Operating Hours | 18 hours per day, 7 days per week |
| Panel Lifespan | Up to 50,000 hours |
| Dimensions (W × H × D) | 1458.9 × 832.8 × 63.7 mm |
| Net Weight | 21.5 kg |
| VESA Mount Pattern | 400 × 400 mm |
| Bezel Width | 10.4 mm (top, left, right) / 10.9 mm (bottom) |
| Audio Output | 2 × 10W speakers (built-in) |
| Operating Temperature Range | 0°C to 40°C |
| Operating Humidity | 10% to 80% (non-condensing) |
| Certifications | CCC, CB, CE, FCC, cTUVus, UKCA, CEC, ERP, Energy Star 8.0 |
| Safety Standard | IEC 62368-1 |
| IP Rating | IP5X |

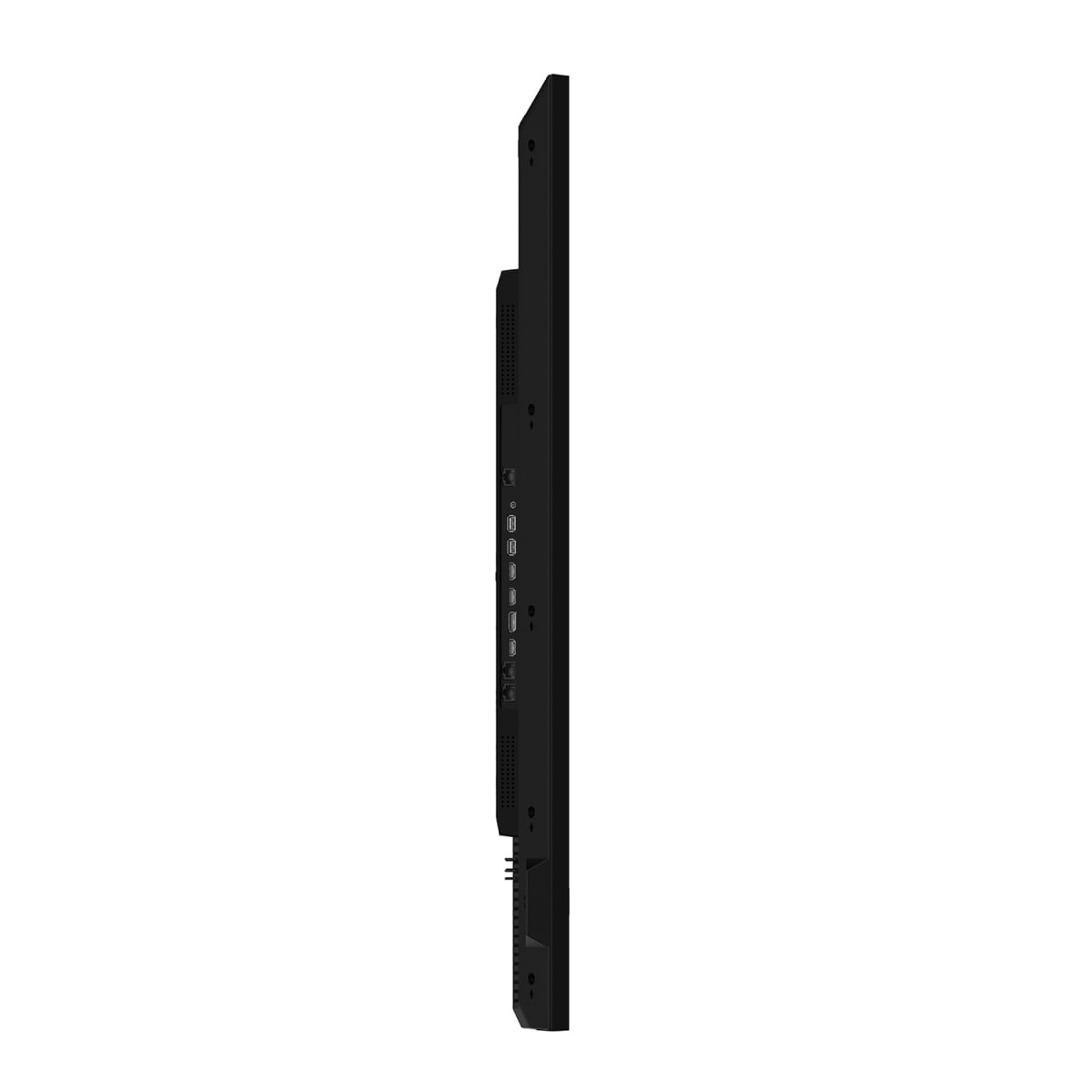

Connectivity
- 2 × HDMI 2.0 inputs — primary signal sources; supports 4K content at 60Hz
- 1 × DisplayPort 1.2a input — higher bandwidth option for professional graphics workstations
- 1 × HDMI output with ARC support — for audio return from compatible sources
- 1 × USB 2.0 type-A port — for peripheral connections and content loading
- 1 × USB 3.0 type-A port — faster data transfer for media updates
- 1 × LAN (RJ45) — networked device management and content streaming
- 1 × RS232 in (RJ45) — serial control for integration with third-party control systems
- 1 × RS232 out (RJ45) — serial feedback and status signaling
- 1 × 3.5mm audio output — for connected external speakers or audio routing
- Dual-band Wi-Fi (2.4/5.0 GHz, 802.11ac) — wireless connectivity for content delivery and device management
- Bluetooth 5.1 — for wireless peripheral connections and ScreenShare functionality
When building a networked signage infrastructure across multiple locations, the combination of Android 11, cloud device management, and multiple input types makes this display compatible with most commercial signage platforms. For broader deployment options, see our Commercial Digital Signage Displays.
