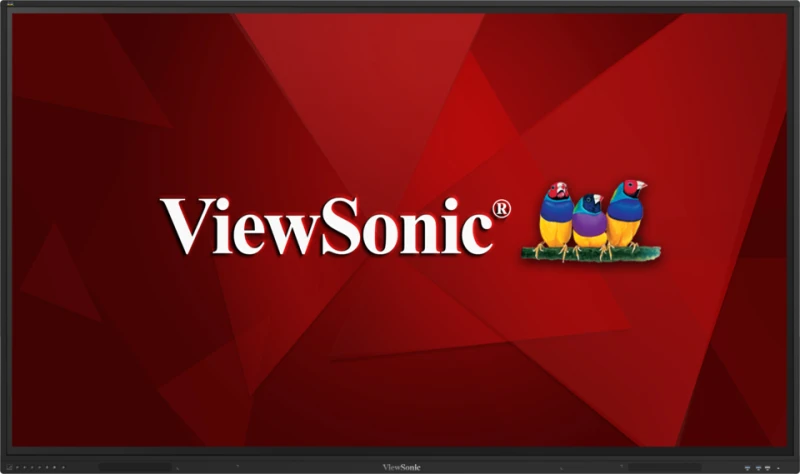

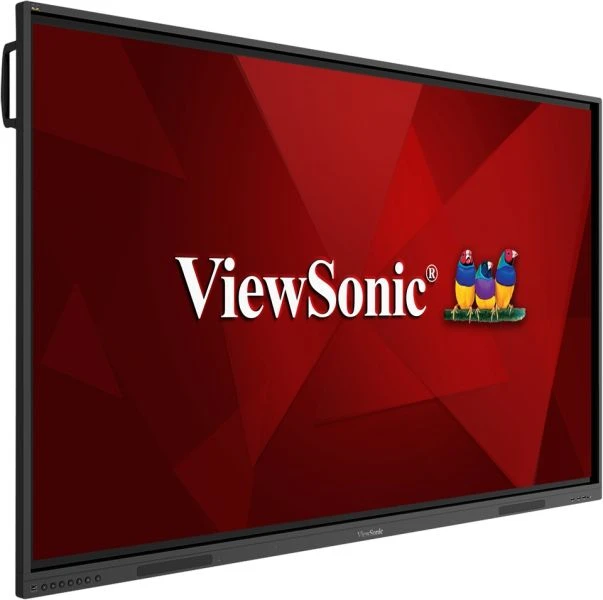

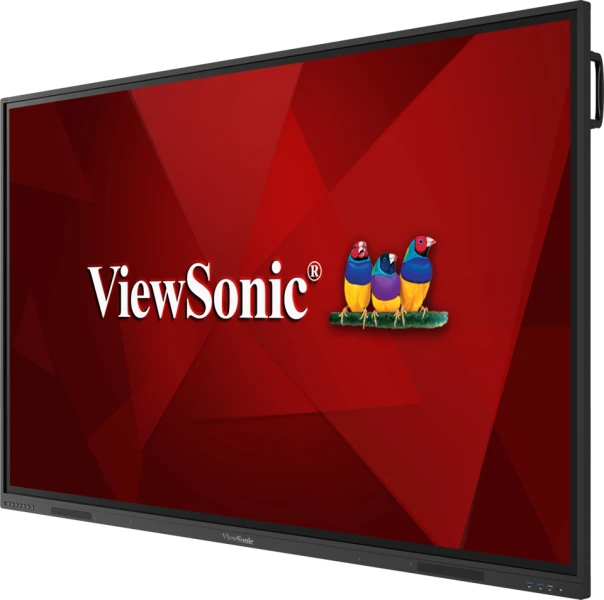

ViewSonic IFP86G1 86″ UHD Commercial Digital Signage Display | 4K Digital Signage for Retail, Hospitality & Corporate Environments

In retail showrooms, hospitality lobbies, transport hubs, and healthcare waiting areas, brightness and contrast performance determine whether customers and visitors can actually read your content. The IFP86G1 delivers 400 nits of typical brightness paired with a 9H hardness anti-glare surface, meaning signage remains legible even under fluorescent and natural side lighting — not just in controlled meeting rooms. This is the operational reality of commercial signage: the display doesn’t control its ambient light conditions, so the panel itself must be engineered to perform in them.

Flexible Integration Without Embedded Operating System Constraints

The IFP86G1 removes OS licensing and firmware-update dependencies that complicate commercial signage deployments. Connect external media players, PCs, or networked devices via HDMI, USB-C, or OPS slot — your infrastructure controls content scheduling and updates, not the display manufacturer. This architecture is essential for venues managing multi-display networks across different locations.

Key Features

• High-Brightness Panel for Ambient Light Resilience: The 400 nits output and 4000:1 native contrast ratio (6000:1 dynamic) are specified to maintain content readability in high-ambient-light installations. This isn’t marketing brightness — it’s deployment brightness. Retail and transportation environments rely on this to avoid content washout during daylight hours.
• Hardened Anti-Glare Surface Treatment: The 9H hardness coating with integrated anti-glare reduces specular reflection from direct light sources and ceiling fixtures. In customer-facing deployments, this directly improves content legibility and reduces the need for repositioning fixtures or display angles.
• Ultra Fine Touch Technology and Wide Viewing Angles: The IR-based touch sensor (40-point Windows / 20-point Android) maintains responsiveness across the 178° horizontal and vertical viewing angles, ensuring consistent interaction from multiple sightlines. In public-space signage, users approach at unpredictable angles — wide viewing means consistent colour and touch performance regardless.
• USB-C Plug & Play Architecture: Single USB-C connection handles display, touch, power (up to 65W), and LAN simultaneously. This simplifies installation in venues where dedicated IT infrastructure may be limited and reduces cable sprawl in front-of-house deployments.
• OS-Free Design for Content Flexibility: No embedded operating system means no licensing constraints, no manufacturer platform lock-in, and no forced firmware updates that disrupt commercial signage scheduling. Content flows from external PCs, media players, or networked devices on your terms.
• Extended Backlight Lifespan: The 50,000-hour rated backlight life translates to approximately 12-15 years in typical signage duty cycles (8-12 hours daily), reducing serviceability events and total cost of ownership in distributed deployments.

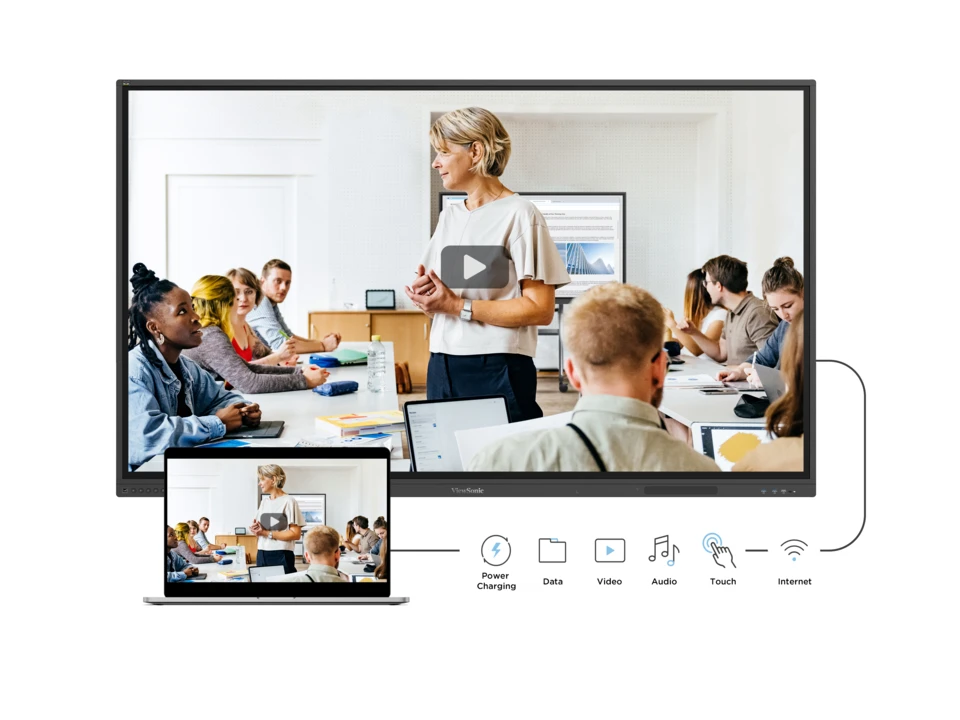

Single USB-C Connection for Power, Display, Touch, and Network

ViewSonic’s SmartPort USB-C implementation consolidates display signal (DisplayPort 1.2), touch data, up to 65W power delivery, and 10/100 Mbps Ethernet into one cable. For installations where cable routing and front-of-house aesthetics matter — retail windows, lobby displays, transportation terminals — this reduces installation complexity and improves visual cleanliness.

Specifications

Connectivity

• HDMI Inputs (3): Three rear HDMI 2.0 ports; HDMI 1 and 3 support CEC (Consumer Electronics Control); HDMI 2 supports both CEC and ARC (Audio Return Channel) for simplified audio routing from compatible sources.
• USB-C Port (1): Supports DisplayPort 1.2 video, touch data, USB 3.0 data sharing, 65W Power Delivery, and Ethernet (10/100 Mbps), consolidating power, display, and control into a single connection.
• USB Type-A Ports (6 total): Front panel: 3 ports (1× USB 2.0, 2× USB 3.0) for media sticks and peripherals. Rear panel: 3 ports (2× USB 3.0, 1× USB 2.0 dedicated for firmware updates).
• USB Type-B Ports (2): Rear USB 3.0 ports for touch sensor backup and device expansion.
• VGA/RGB Input (1): Legacy 15-pin analogue input for compatibility with older AV infrastructure or PC sources.
• Audio Input/Output (1 each): 3.5 mm stereo audio input and output for external amplification or source audio bypass.

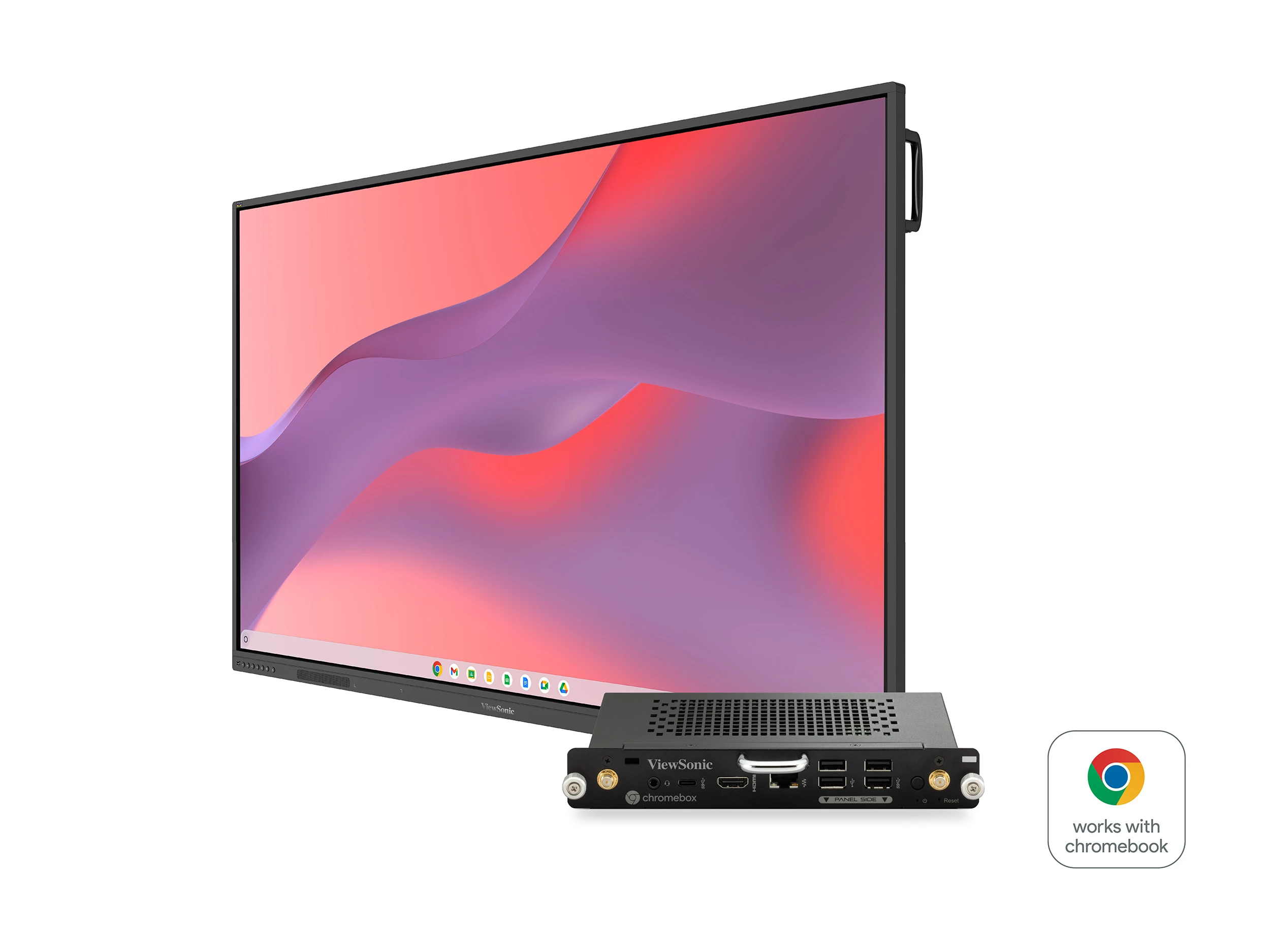

• OPS Slot (1): Rear-mounted modular PC slot supporting ViewSonic VPC-A31-O1, VPC33, VPC35, and VPC37 series slot-in computers, enabling integrated playback devices without external rack mounting.
• RJ45 LAN (2 ports – 1 in, 1 out): Dual Gigabit Ethernet (1000 Mbps via OPS; 10/100 Mbps via USB-C) for networked content management, remote scheduling, and daisy-chaining of signage systems.
• RS232 Serial Port (1): Rear 9-pin connector for legacy AV control systems and third-party control platform integration.

Warranty

This ViewSonic display is covered by a 5-year replacement warranty. In the event of a hardware fault, ViewSonic will replace the unit — minimising downtime in classroom and enterprise deployments. Contact Kickstart Computers for warranty claims and support.
