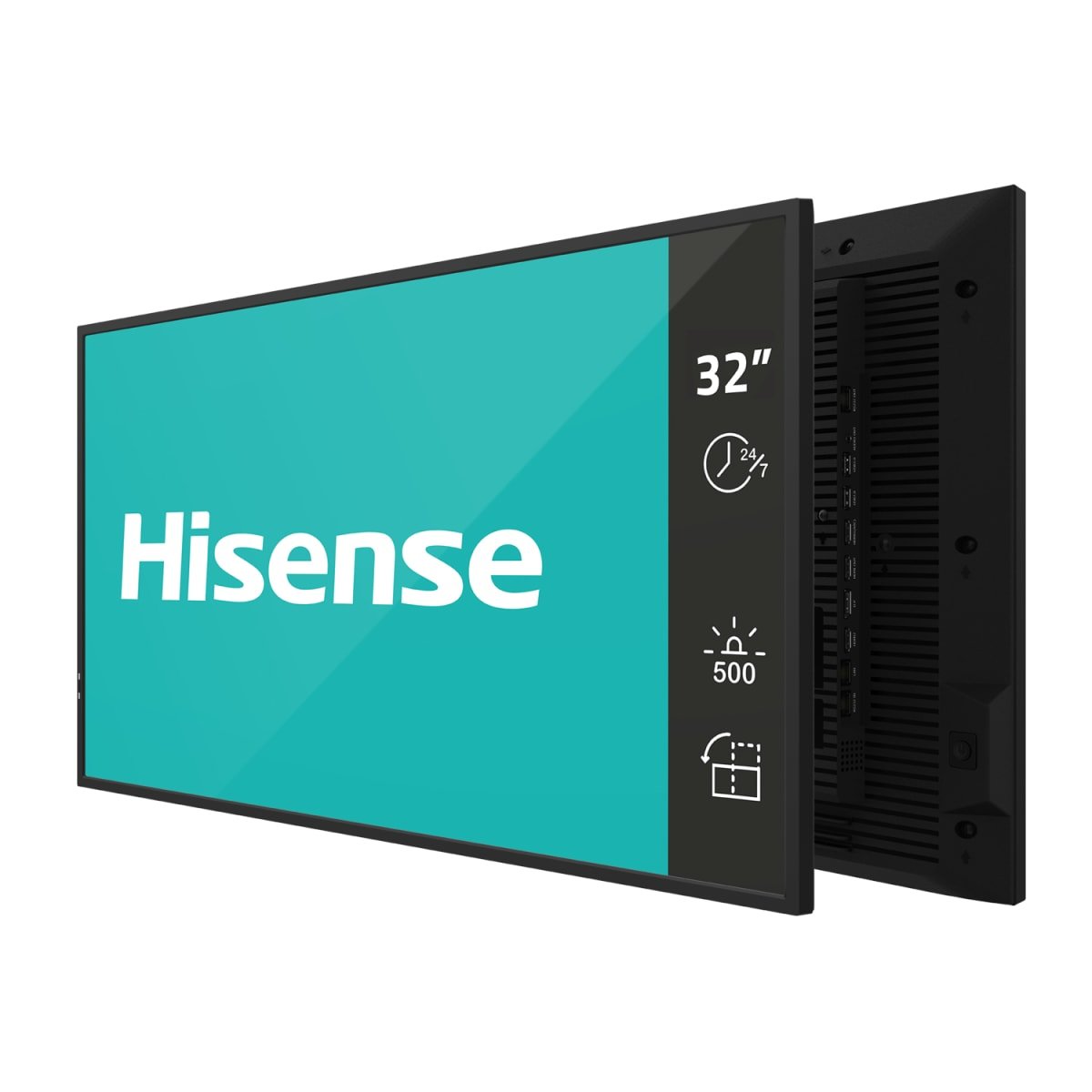

Retail environments, hospitality venues, and corporate lobbies need displays that operate reliably day and night without requiring constant oversight. The 32DM66D addresses this directly: it’s engineered for 24/7 operation with automatic brightness adjustment, built-in content scheduling via Android 11, and cloud-based device management that lets you control content and monitor performance across multiple sites from a single dashboard.
Key Features
- Ambient Light Sensor: Automatically adjusts brightness based on ambient conditions. This reduces power consumption in low-light periods and maintains readability in bright environments—operationally important when displays are exposed to changing daylight or venue lighting throughout the day.
- Cloud Device Management (VisionInfo): Deploy content to one display or fifty without on-site intervention. VisionInfo handles scheduling, updates, and performance monitoring remotely, making it practical to manage networked signage infrastructure across multiple venues from your office.
- Wireless Content Sharing: ScreenShare allows staff to push content directly from mobile devices or laptops to the display without needing HDMI cables or fixed presentation setups. Useful for quick messaging updates, promotional content changes, or guest-facing information in hospitality settings.
- Conformal Coating: Electronic components are sealed against moisture, dust, salt, and temperature fluctuation. This extends hardware lifespan in environments with high humidity, temperature swings, or exposure to external contaminants—relevant for venues near kitchens, outdoor entrances, or industrial spaces.
- Anti-glare Coating and 25% Haze: Reduces reflections from overhead lighting and direct sunlight without degrading image clarity. Customer-facing displays in brightly lit retail or healthcare waiting areas will appear sharp and readable regardless of ambient glare.
- Narrow Bezel Design: 10mm symmetrical bezels allow seamless multi-display tiling and clean wall mounting. Cables route to the rear and connectors face outward, so the display sits flush against walls and looks integrated into the venue rather than installed on top of it.
- Android 11 Operating System: Provides app ecosystem flexibility, built-in security controls, and vendor-independent content delivery. Unlike proprietary signage platforms, Android gives you broader software options and reduces long-term vendor lock-in.
- Energy Star Certified: Meets efficiency standards, reducing operational power draw and contributing to facilities management cost targets over the display’s operational lifetime.
Specifications
| Specification | Detail |
|---|---|
| Display Size | 32 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Panel Type | ADS (Advanced Super-view) |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 1200:1 |
| Colour Depth | 16.7M (8-bit) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Time | 8ms |
| Haze (Anti-glare) | 25% |
| Refresh Rate | 60 Hz |
| Operating System | Android 11 |
| Operating Hours | 24/7 continuous |
| Panel Lifespan | Up to 50,000 hours |
| Built-in Audio | 10W x 2 stereo speakers |
| Backlight | DLED |
| Orientation | Landscape and portrait capable |
| Bezel Width | 10.1mm (top/left/right), 10.3mm (bottom) |
| Physical Dimensions | 726 x 420.6 x 61.5mm (W x H x D) |
| Net Weight | 4.6kg |
| VESA Mount Pattern | 200mm x 200mm |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–80% non-condensing |
| Certifications | Energy Star 8.0, CE, FCC, cTÜVus, UKCA, CCC, CB |
| IP Rating | IP5X (dust protection) |

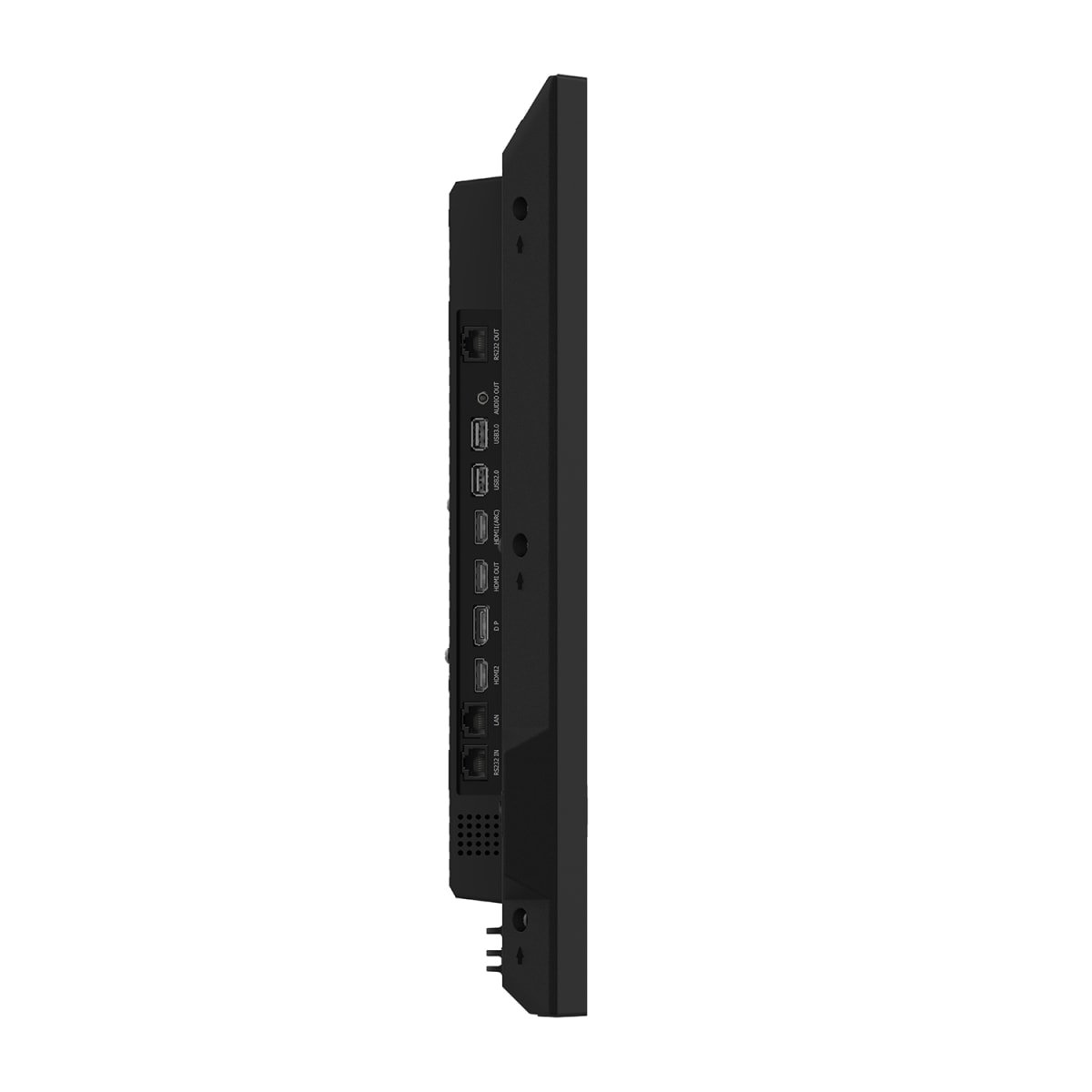

Connectivity
- HDMI input x2 (version 2.0) – Primary and secondary content sources
- HDMI input x1 with ARC (Audio Return Channel) – For integrated audio routing from compatible sources
- HDMI output x1 – Loop-through capability for content distribution to secondary displays
- DisplayPort x1 (version 1.2a) – Alternative high-bandwidth input for computer or media server connections
- USB 3.0 x1 – Fast data transfer and content import from external drives
- USB 2.0 x1 – Legacy device compatibility and general-purpose peripheral connection
- Ethernet (LAN) x1 – Wired network connection for VisionInfo cloud management and content scheduling
- Wi-Fi (2.4/5.0 GHz dual-band, 802.11a/b/g/n/ac) – Wireless network access and content delivery
- Bluetooth 5.1 – Wireless content sharing and peripheral pairing
- RS232 in/out (RJ45) – Serial control integration with building management systems or third-party AV control platforms
- 3.5mm audio output – External speaker or audio system connection
